Schneider Electric
  • BMXAMO0802 SQD ANA 8 CURRENT OUT NO
  • BMXAMO0802 SQD ANA 8 CURRENT OUT NO
  • BMXAMO0802 SQD ANA 8 CURRENT OUT NO
  • BMXAMO0802 SQD ANA 8 CURRENT OUT NO
  • BMXAMO0802 SQD ANA 8 CURRENT OUT NO

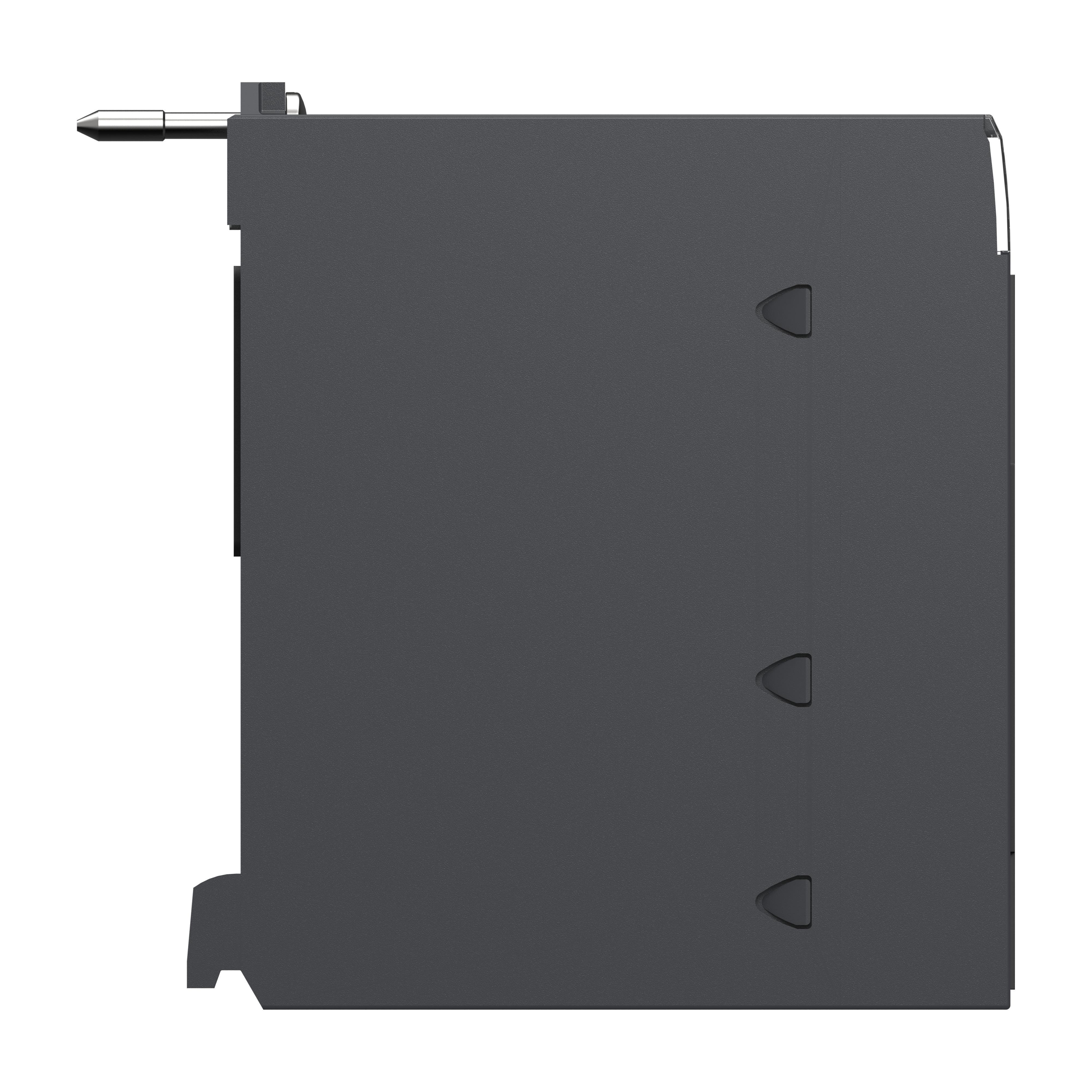

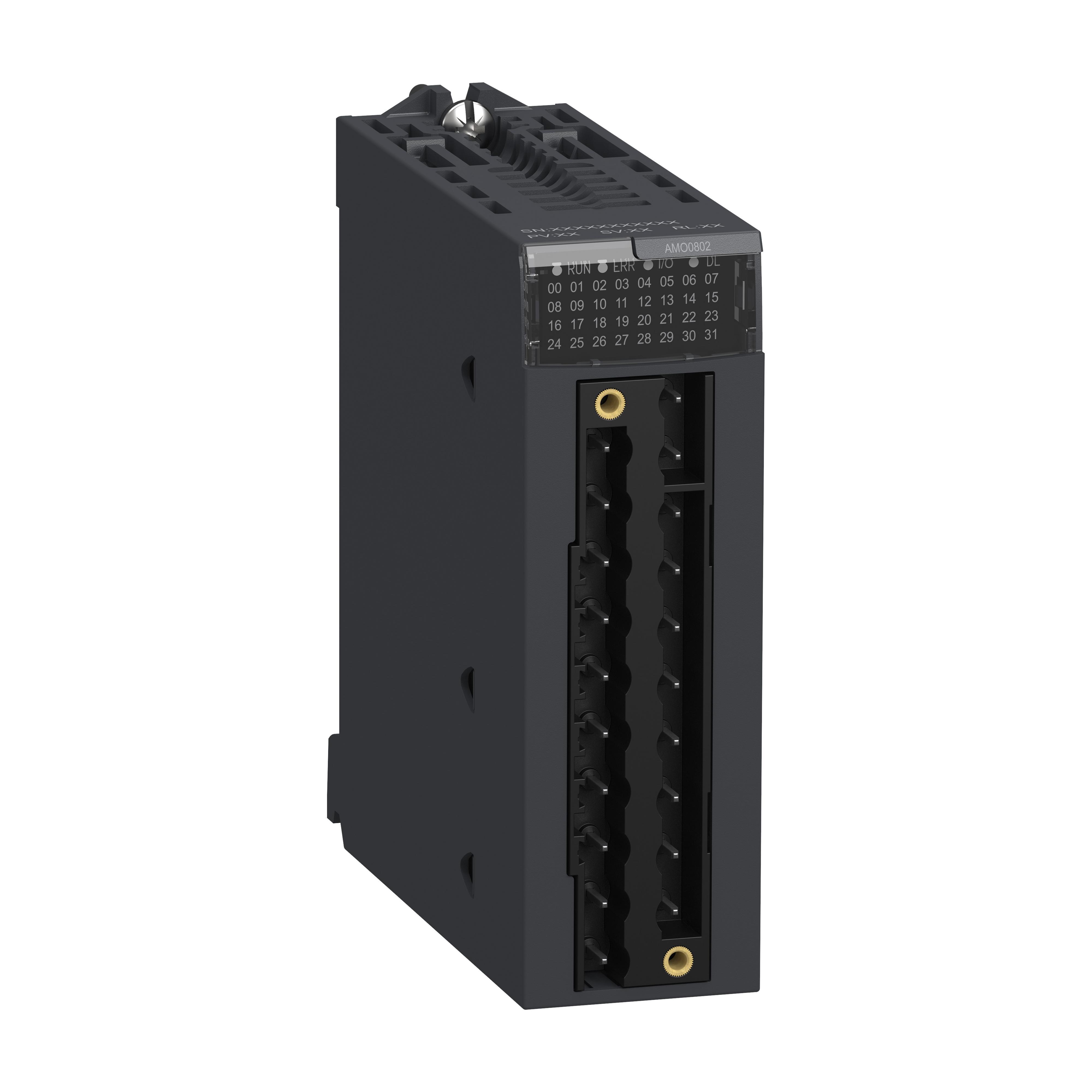

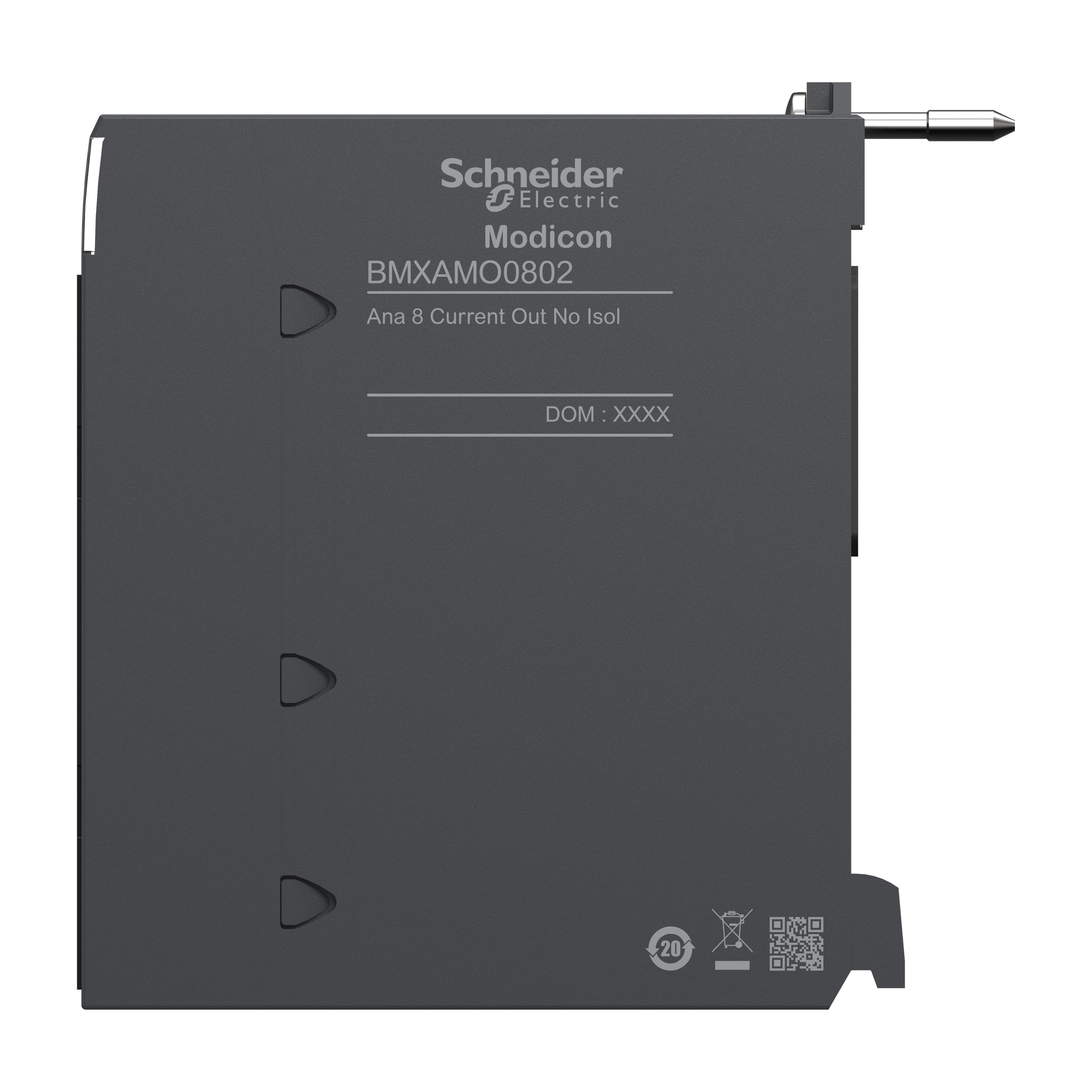

Description: Square D™ Modicon® Quantum™ Analog Output Module, Series: X80, 8 Outputs, 4 ms Conversion Rate, 16 bit Resolution, 24 V DC, 20/4/20 mA, 0.48/3.7 W Power, Cage/Screw/Spring Terminal, 0 to 60 deg C, 3.93 in H x 6.29 in D Dimensions

Manufacturer PN: BMXAMO0802

UPC:  59586408158

Kendall Electric Inc PN: 3962195

Invoice Description:

BMXAMO0802 SQD ANA 8 CURRENT OUT NO


SPEC SHEET

▸ See All in PLC Input-Output Analog Modules


How Can We Make This Page Better?

Square D™ Modicon® Quantum™ BMXAMO0802 X80 Analog Output Module, 8 Outputs, 16 bit Resolution

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Square D™ Modicon® Quantum™ Analog Output Module, Series: X80, 8 Outputs, 4 ms Conversion Rate, 16 bit Resolution, 24 V DC, 20/4/20 mA, 0.48/3.7 W Power, Cage/Screw/Spring Terminal, 0 to 60 deg C, 3.93 in H x 6.29 in D Dimensions

Specifications

 Amperage Rating 20/4/20 mA
 Application For ethernet I/O, M340 PAC and M580 ePACs controller applications
 Brand Name Square D
 Conversion Rate 4 ms
 Dimensions 3.93 in H x 6.29 in D
 Manufacturer Part Number BMXAMO0802
 Number of Outputs 8
 PART NUMBER KEYWORDS BMXAMO0802 ; 11126808 ; 785901628712 ; 78590162871 ; 03595864081588 ; 3595864081588
 Power Rating 0.48/3.7 W
 Series X80
 Standards/Approvals RoHS Compliant|REACH Compliant|UL Listed|CSA Certified|IEC Ex Certified|CE Certified|Merchant Navy Certified|ATEX Certified|RCM Certified|EAC Certified|EN 61010-2-201|EN 61131-2|EN 61000-6-2|EN 61000-6-4|SVHC Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Temperature Rating 0 to 60 deg C
 Terminal Type Cage/Screw/Spring
 Voltage Rating 24 V DC

Features

▪ Modularity and scalability
▪ Robustness and reliability
▪ Wide range of operating temperature from 0 deg C to 60 deg C
