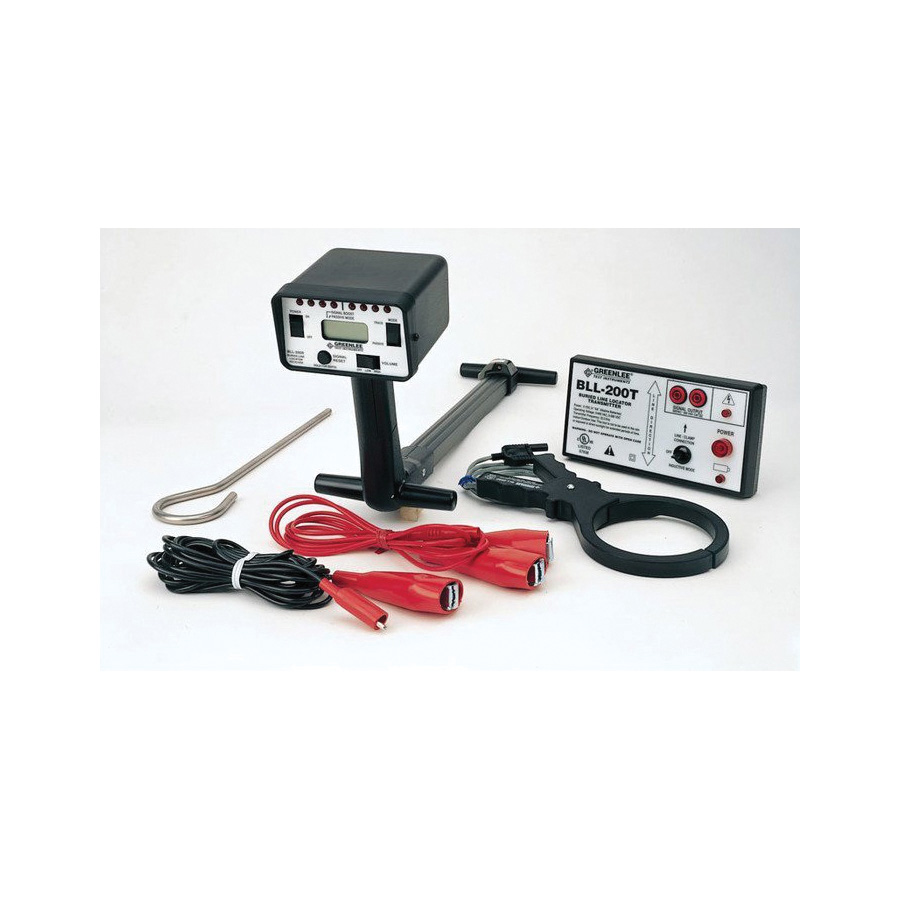

ATR3-420-24L-FD

Mouse over image to zoom, click to enlarge

  • ATR3-420-24L-FD
  • ATR3-420-24L-FD

Description: Tempo Buried Line Locator, 600 V AC, 13 mA Open Line, 150 mA Shorted Line, LCD/LED Indicator, 6 V DC Power Source, (4) AA Alkaline Battery, 0 to 270 deg F

Manufacturer PN: ATR3-420-24L-FD

Kendall Electric Inc PN: 29284

Invoice Description:

BLL-200 TEMPO BURIED LINE LOCATOR

▸ See All in Current Transducers


How Can We Make This Page Better?

Tempo BLL-200 Buried Line Locator, 600 V AC, 13 mA Open Line, 150 mA Shorted Line, LCD/LED Indicator

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Tempo Buried Line Locator, 600 V AC, 13 mA Open Line, 150 mA Shorted Line, LCD/LED Indicator, 6 V DC Power Source, (4) AA Alkaline Battery, 0 to 270 deg F

Specifications

 Amperage Rating 13 mA Open Line/150 mA Shorted Line
 Battery (4) AA Alkaline
 Brand Name Tempo
 Includes Molded Carrying Case
 Indicator LCD/LED
 Manufacturer Part Number BLL-200
 PART NUMBER KEYWORDS BLL-200 ; BLL200 ; 07796 ; 783310077961 ; 78331007796 ; 00783310077961 ; 0783310077961
 Power Source 6 V DC
 Standards/Approvals ARRA Compliant
 Temperature Rating 0 to 270 deg F
 Voltage Rating 600 V AC

Features

▪ 33.3 kHz transmitter frequency
▪ 12 Hz to 24 kHz receiver frequency
▪ 0.1 ft D resolution
▪ LED and LCD signal strength indicators make it quick and easy to find exact line location
▪ Light weight and ergonomically balanced
▪ Automatic signal boost makes it easy to trace lines, even those with very weak signals
▪ Receiver may be used in active or passive mode
▪ Receiver locates multiple passive frequencies with a single setting
▪ Receiver automatically locks out passive range when it detects a transmitter signal, reducing the chance of tracing other lines carrying weaker signals
▪ Microprocessor based circuitry delivers increased accuracy and features auto-gain control in all environments
▪ Traces 20 ft underground and provides depth readings up to 15 ft
▪ Transmitter can be connected to live lines up to 600 VAC
