Eaton

Mouse over image to zoom, click to enlarge

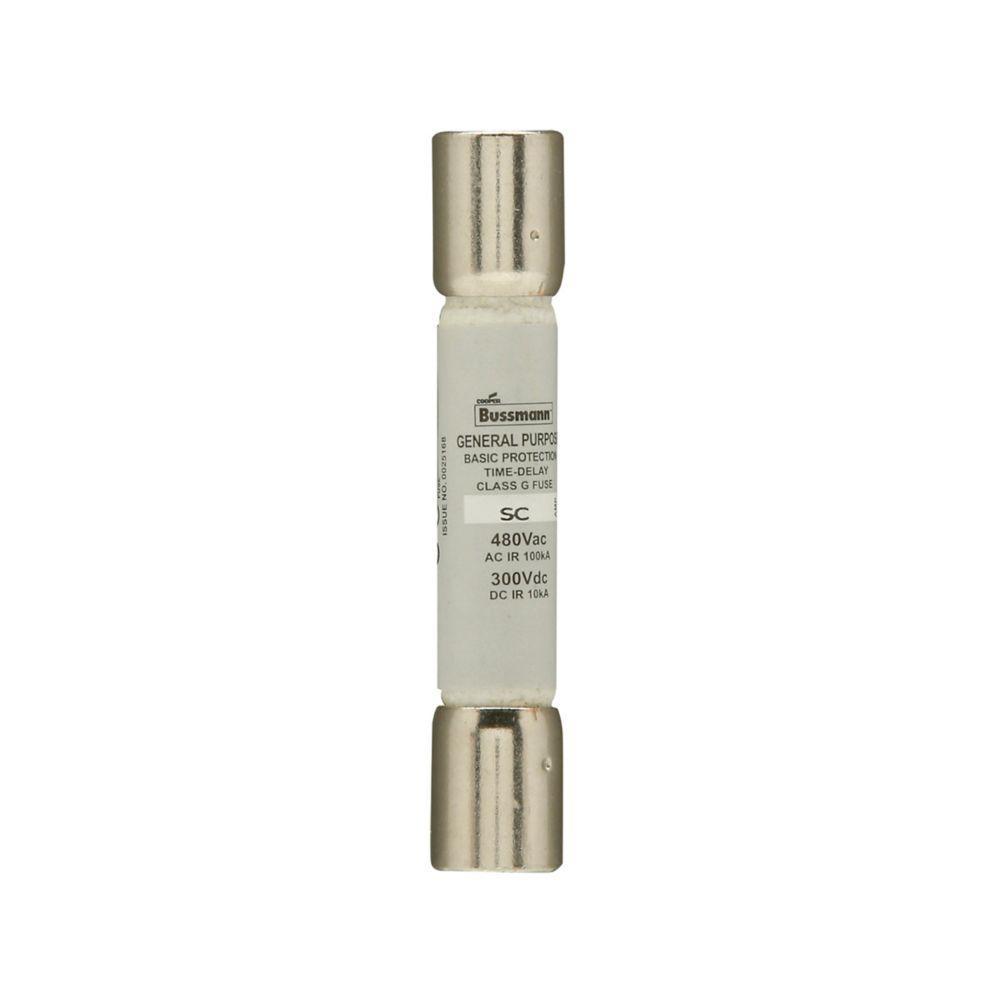

Description: Bussmann Time Delay Fuse, 60 A, 480 V AC/300 V DC, 10/100 kA Interrupt, Class: G, 12 s at 200% Response, Ferrule Terminal, 0.41 in Dia x 2.25 in L Body Size

Manufacturer PN: BK/SC-60

UPC: 05171275150

Kendall Electric Inc PN: 3973288

Invoice Description:

BK/SC-60 BUS SC FUSE CLASS G

SPEC SHEET

▸ See All in Class G Fuses

How Can We Make This Page Better?

Bussmann BK/SC-60 Time Delay Fuse, 60 A, 480 V AC/300 V DC, 10/100 kA Interrupt, G Class

Description Specifications Resources

Description

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Bussmann Time Delay Fuse, 60 A, 480 V AC/300 V DC, 10/100 kA Interrupt, Class: G, 12 s at 200% Response, Ferrule Terminal, 0.41 in Dia x 2.25 in L Body Size

Specifications

Amperage Rating	60 A
Application	Fusible Branch Panel Boards, HV Branch Circuit Protection, Safety and Security Systems Applications
Body Size	0.41 in Dia x 2.25 in L
Brand Name	Bussmann
Class	G
Manufacturer Part Number	BK/SC-60
PART NUMBER KEYWORDS	BK/SC-60 ; BKSC60 ; 10513395 ; 051712751506 ; 51712751506 ; 05171275150 ; 00051712751506 ; 5027590408387
Response Time	12 s at 200%
Standards/Approvals	RoHS Compliant,Not Applicable
Terminal Type	Ferrule
Video Links
Voltage Rating	480 V AC/300 V DC
