Eaton

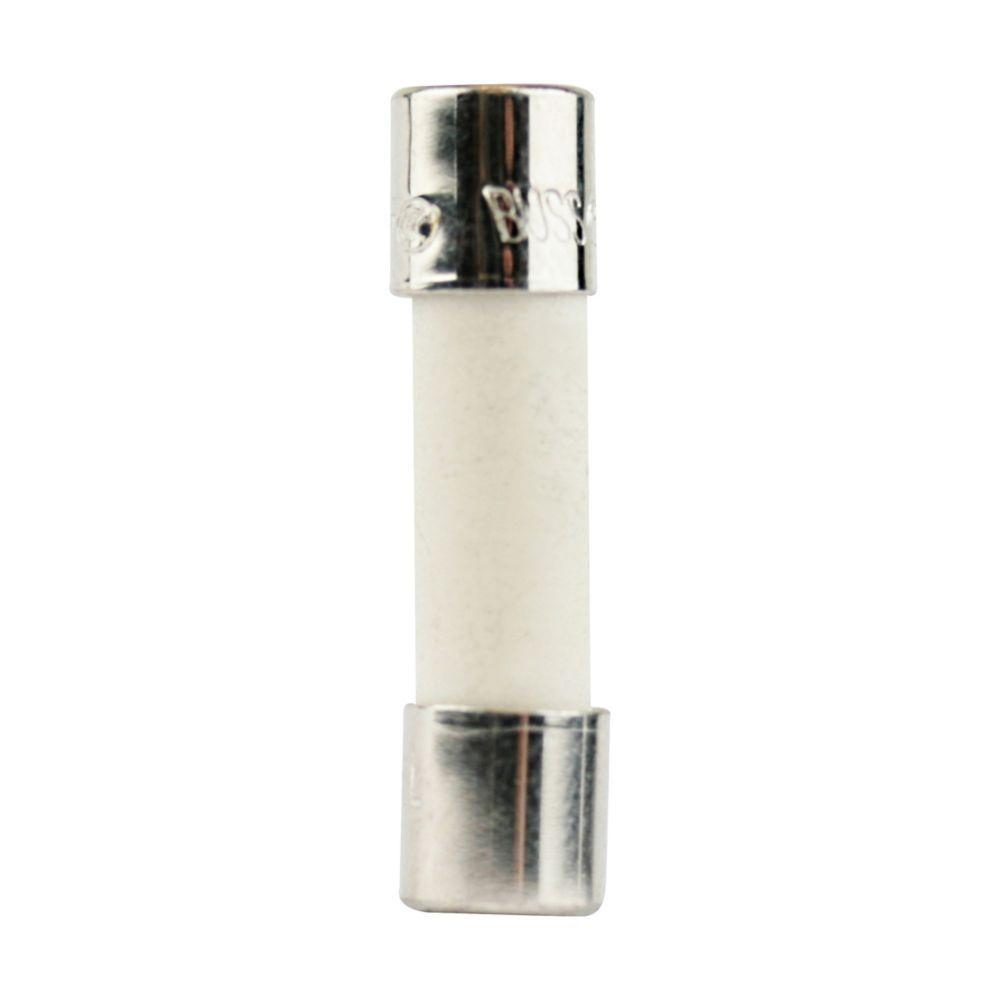

BK/S501-8-R BUSSMANN S501 8A BUSS FA BK 100 BOX -R

Mouse over image to zoom, click to enlarge

  • BK/S501-8-R BUSSMANN S501 8A BUSS FA BK 100 BOX -R
  • BK/S501-8-R BUSSMANN S501 8A BUSS FA BK 100 BOX -R
  • BK/S501-8-R BUSSMANN S501 8A BUSS FA BK 100 BOX -R

Description: Bussmann Fast Acting Fuse, Small Dimension, Series: S501, Non-Indicating, Non-Rejection, 8 A, 250 V AC/32 V DC, 1500 A Interrupt, 50 Hz Frequency, 30 min, 40 ms, 30 ms, 20 s, 10 ms, 1 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Ceramic, 5 mm Dia x 20 mm L Body

Manufacturer PN: BK/S501-8-R

UPC:  05171264860

Kendall Electric Inc PN: 3945628

Invoice Description:

BK/S501-8-R BUSSMANN S501 8A BUSS FA BK 100 BOX -R


SPEC SHEET

▸ See All in Fast Acting Fuses


How Can We Make This Page Better?

Bussmann BK/S501-8-R S501 Small Dimension Fast Acting Fuse, 8 A, 250 V AC/32 V DC, 1500 A Interrupt, Cylindrical Body

Log In for Pricing and Availability




Description

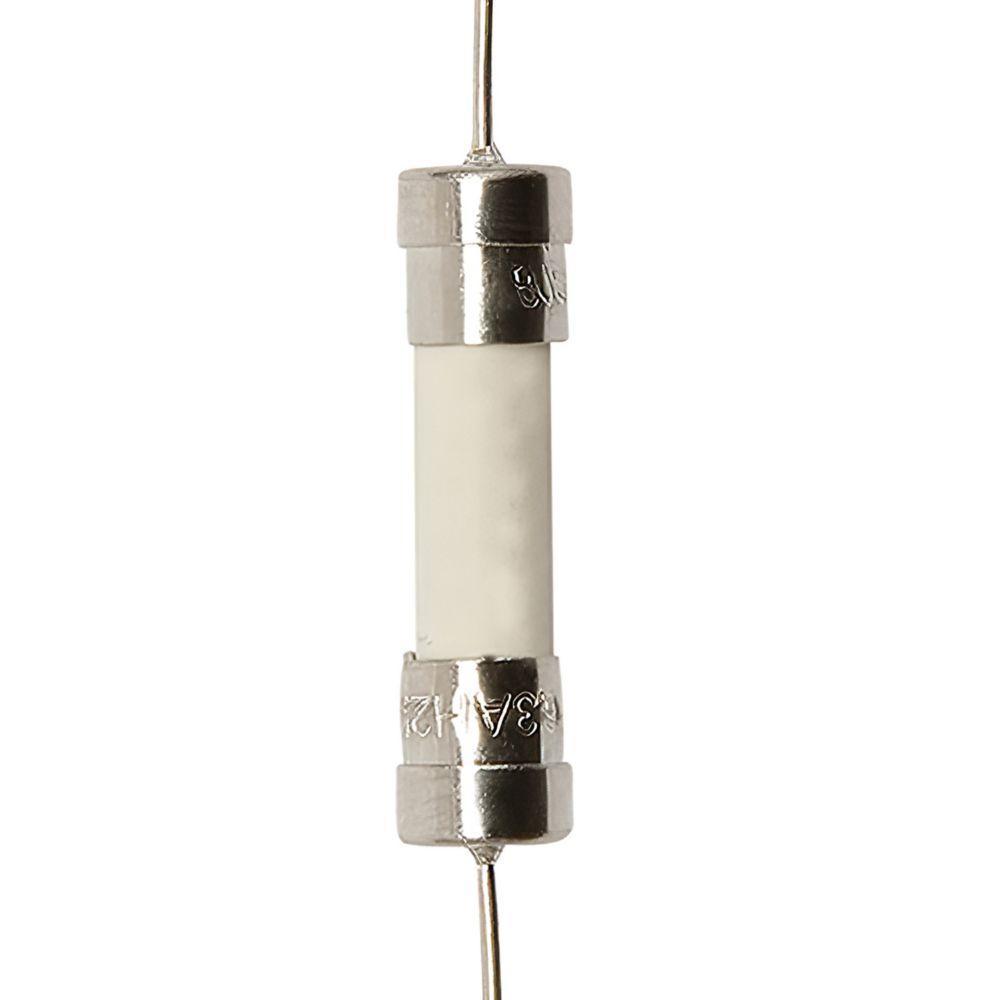

Eaton’s S501 fast-acting, low breaking capacity 5mm x 20mm ferrule fuses are designed to IEC 60127-2 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.Fast-acting, low breaking capacity 5 mm x 20 mm ferrule fuse designed to IEC 60127-2 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Bussmann Fast Acting Fuse, Small Dimension, Series: S501, Non-Indicating, Non-Rejection, 8 A, 250 V AC/32 V DC, 1500 A Interrupt, 50 Hz Frequency, 30 min, 40 ms, 30 ms, 20 s, 10 ms, 1 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Ceramic, 5 mm Dia x 20 mm L Body

Specifications

 Amperage Rating 8 A
 Application Electronic Circuits
 Body Size 5 mm Dia x 20 mm L
 Body Type Cylindrical
 Brand Name Bussmann
 Element Single
 Frequency Rating 50 Hz
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number BK/S501-8-R
 Material Ceramic
 Mounting Type Clip/Holder
 PART NUMBER KEYWORDS BK/S501-8-R ; BKS5018R ; 9506378 ; 051712648608 ; 51712648608 ; 05171264860 ; 00051712648608
 Rejection Non Rejection Non-Rejection
 Response Time 30 min, 40 ms, 30 ms, 20 s, 10 ms, 1 s
 Series S501
 Standards/Approvals VDE,CCC Marked,RoHS Compliant,CE Marked
 Terminal Type Ferrule
 Type Small Dimension
 Video Links
 Voltage Rating 250 V AC/32 V DC

Features

▪ Fast acting for maximum protection
▪ High break capacity for use in higher fault energy electronic circuitry
▪ Nickel plated brass end caps
▪ 30 min minimum at 1.5 In, 30 min maximum at 2.1 In, 40 ms minimum and 20 s maximum at 2.75 In, 10 ms minimum and 1 s maximum at 4 In, 30 ms maximum at 10 In response time
▪ 1500 A at 250 VAC interrupt rating
