Eaton

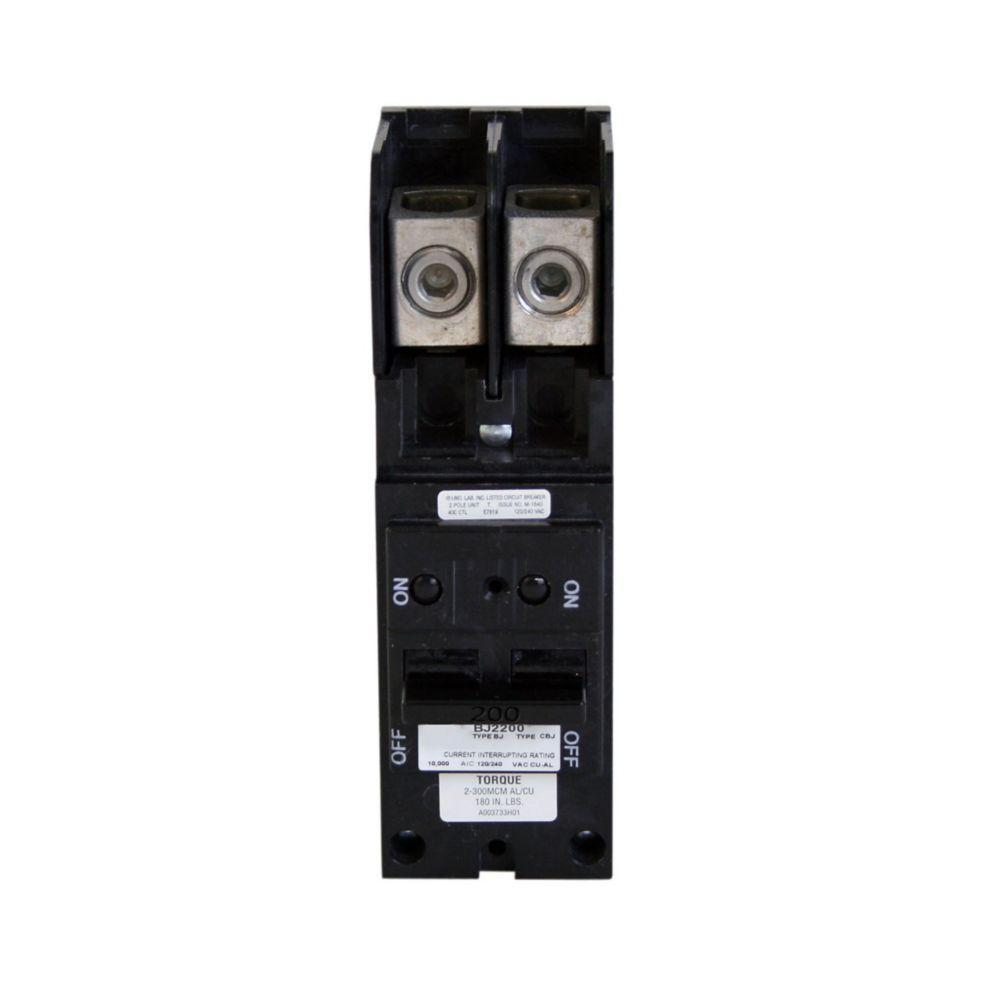

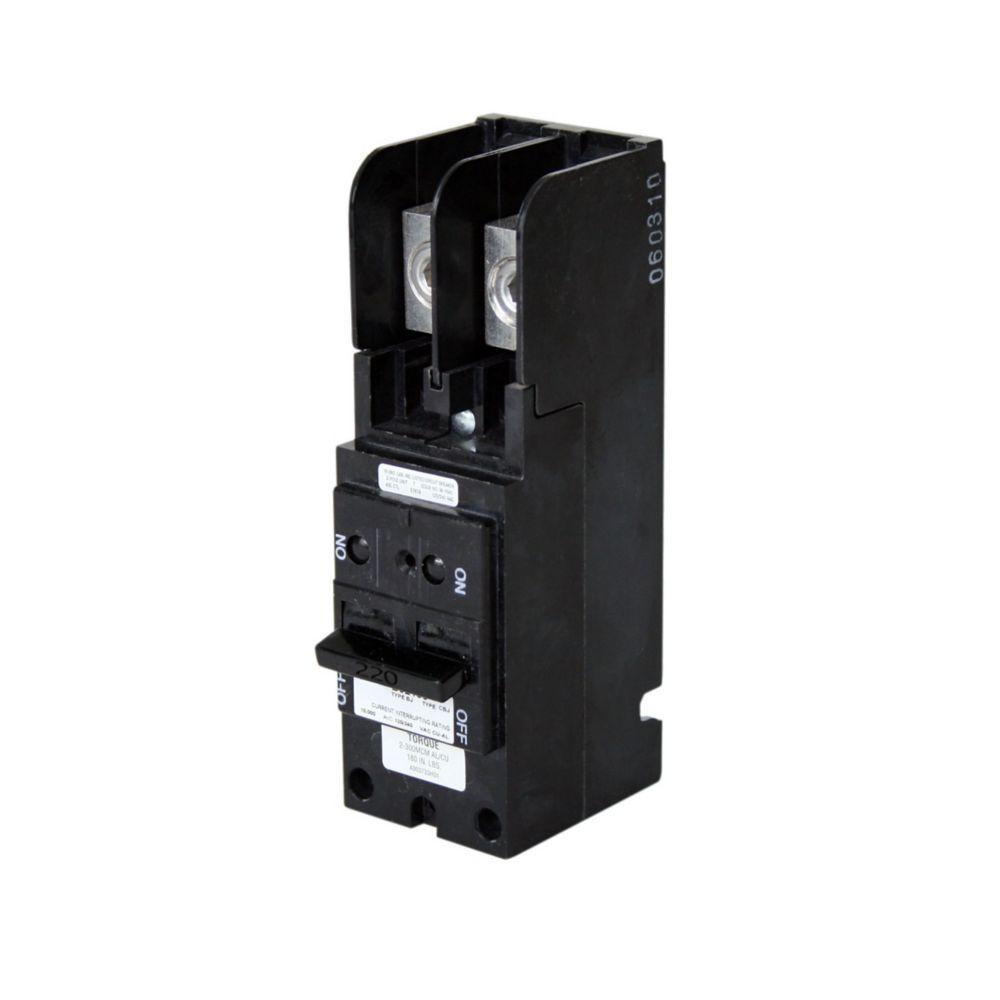

BJ2200 CH CIRCUIT BREAKER 2P 200 AMP 120/240V..

Mouse over image to zoom, click to enlarge

  • BJ2200 CH CIRCUIT BREAKER 2P 200 AMP 120/240V..
  • BJ2200 CH CIRCUIT BREAKER 2P 200 AMP 120/240V..
  • BJ2200 CH CIRCUIT BREAKER 2P 200 AMP 120/240V..

Description: EATON Circuit Breaker, Type BJ, 120/240 V AC, 200 A, 10 kA Interrupt, 2 Pole, 1 ph, Plug-On, 2 AWG to 300 kcmil Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 6-1/2 in L x 3-1/2 in W x 2-1/2 in H

Manufacturer PN: BJ2200

UPC:  78667636720

Kendall Electric Inc PN: 2222896

Invoice Description:

BJ2200 CH CIRCUIT BREAKER 2P 200 AMP 120/240V..


SPEC SHEET

▸ See All in Std Thermal Magnetic Circuit Breakers


How Can We Make This Page Better?

EATON BJ2200 Type BJ Circuit Breaker, 120/240 V AC, 200 A, 10 kA Interrupt, 2 Poles

Log In for Pricing and Availability




Description

Eaton's main circuit breakers are used in a variety of applications including the main or emergency disconnect on the outside of a house, a tenant main breaker in group metering stacks and feed-through lug blocks specifically designed for sub-feeding from an existing panel. Main breakers are available with a variety of accessories including shunt trip, bell alarms and auxiliary switches.
EATON Circuit Breaker, Type BJ, 120/240 V AC, 200 A, 10 kA Interrupt, 2 Pole, 1 ph, Plug-On, 2 AWG to 300 kcmil Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 6-1/2 in L x 3-1/2 in W x 2-1/2 in H

Specifications

 Amperage Rating 200 A
 Application Loadcenters and Circuit Protection Applications
 Brand Name EATON
 Connection Type Plug-On
 Dimensions 6-1/2 in L x 3-1/2 in W x 2-1/2 in H
 Manufacturer Part Number BJ2200
 Mounting Type Plug-On
 Number of Poles 2
 Phase 1
 Standards/Approvals UL 489,Federal Specifications Classification W-C375
 Temperature Rating 60 to 75 deg C
 Type Type BJ
 Voltage Rating 120/240 V AC

Features

▪ Common trip requires (4) 1 in spaces
