Eaton

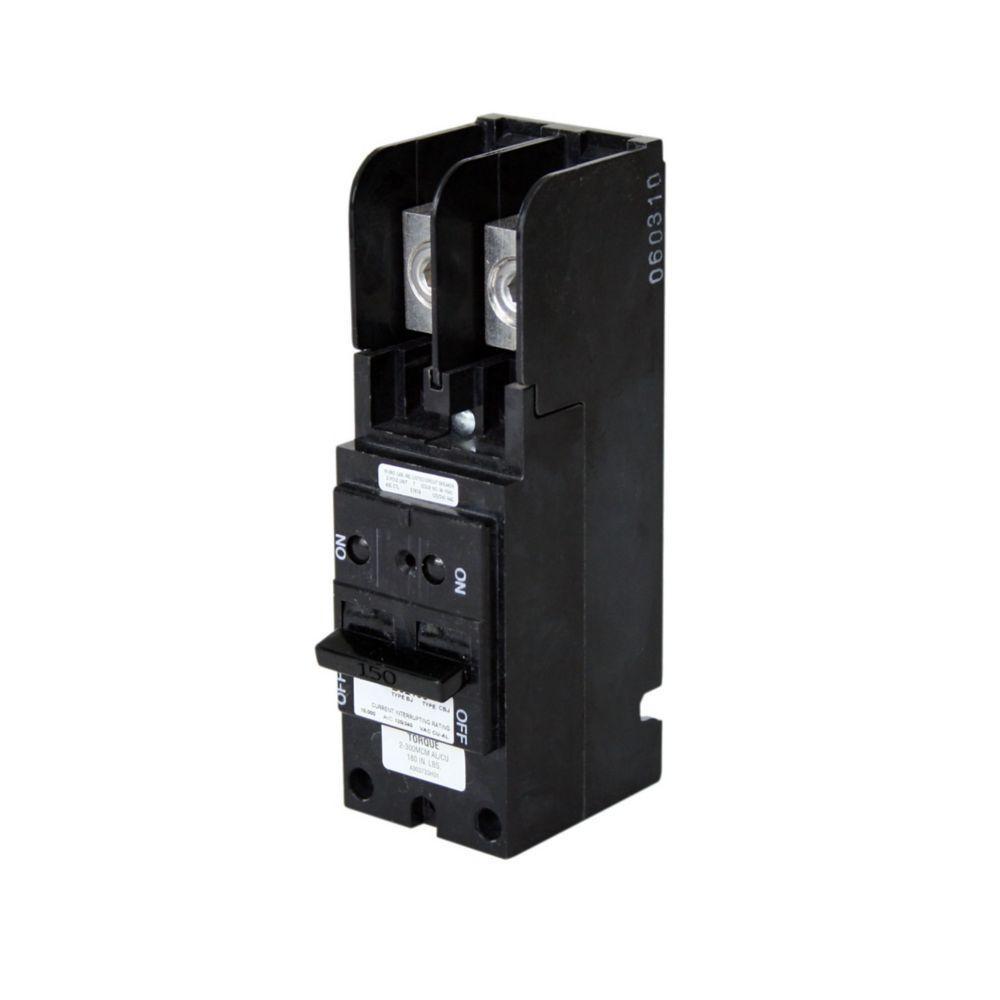

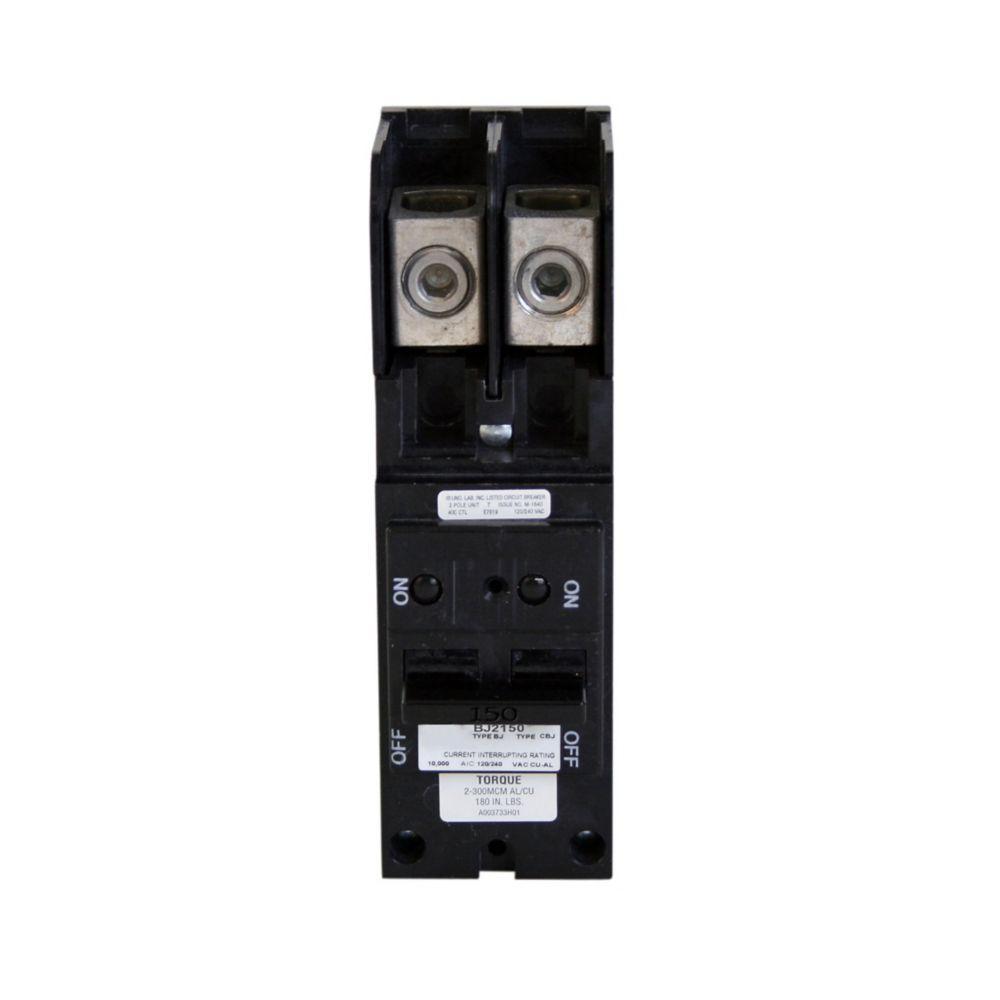

BJ2150 CH CIRCUIT BREAKER 2P 150 AMP 120/240V..

Mouse over image to zoom, click to enlarge

Description: EATON Molded Case Circuit Breaker, Type BJ Sub Feed, 120/240 V AC, 150 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Plug-On, 2 AWG to 300 kcmil Copper/Aluminum Wire, Plug-On Mount, 75 deg F, 6-1/2 in L x 3-1/2 in W x 2-1/2 in H

Manufacturer PN: BJ2150

UPC: 78667636710

Kendall Electric Inc PN: 2267066

Invoice Description:

BJ2150 CH CIRCUIT BREAKER 2P 150 AMP 120/240V..

SPEC SHEET

▸ See All in Std Thermal Magnetic Circuit Breakers

How Can We Make This Page Better?

EATON BJ2150 Type BJ Sub Feed Molded Case Circuit Breaker, 120/240 V AC, 150 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Description Specifications Resources

Description

Eaton's main circuit breakers are used in a variety of applications including the main or emergency disconnect on the outside of a house, a tenant main breaker in group metering stacks and feed-through lug blocks specifically designed for sub-feeding from an existing panel. Main breakers are available with a variety of accessories including shunt trip, bell alarms and auxiliary switches.

EATON Molded Case Circuit Breaker, Type BJ Sub Feed, 120/240 V AC, 150 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Plug-On, 2 AWG to 300 kcmil Copper/Aluminum Wire, Plug-On Mount, 75 deg F, 6-1/2 in L x 3-1/2 in W x 2-1/2 in H

Specifications

Amperage Rating	150 A
Application	Circuit Protection Applications
Brand Name	EATON
Connection Type	Plug-On
Dimensions	6-1/2 in L x 3-1/2 in W x 2-1/2 in H
Manufacturer Part Number	BJ2150
Mounting Type	Plug-On
Number of Poles	2
PART NUMBER KEYWORDS	BJ2150 ; 7434624 ; 786676367103 ; 78667636710 ; 00786676367103
Standards/Approvals	UL 489,Federal Specifications Classification W-C375
Temperature Rating	75 deg F
Type	Type BJ Sub Feed
Voltage Rating	120/240 V AC
