Eaton

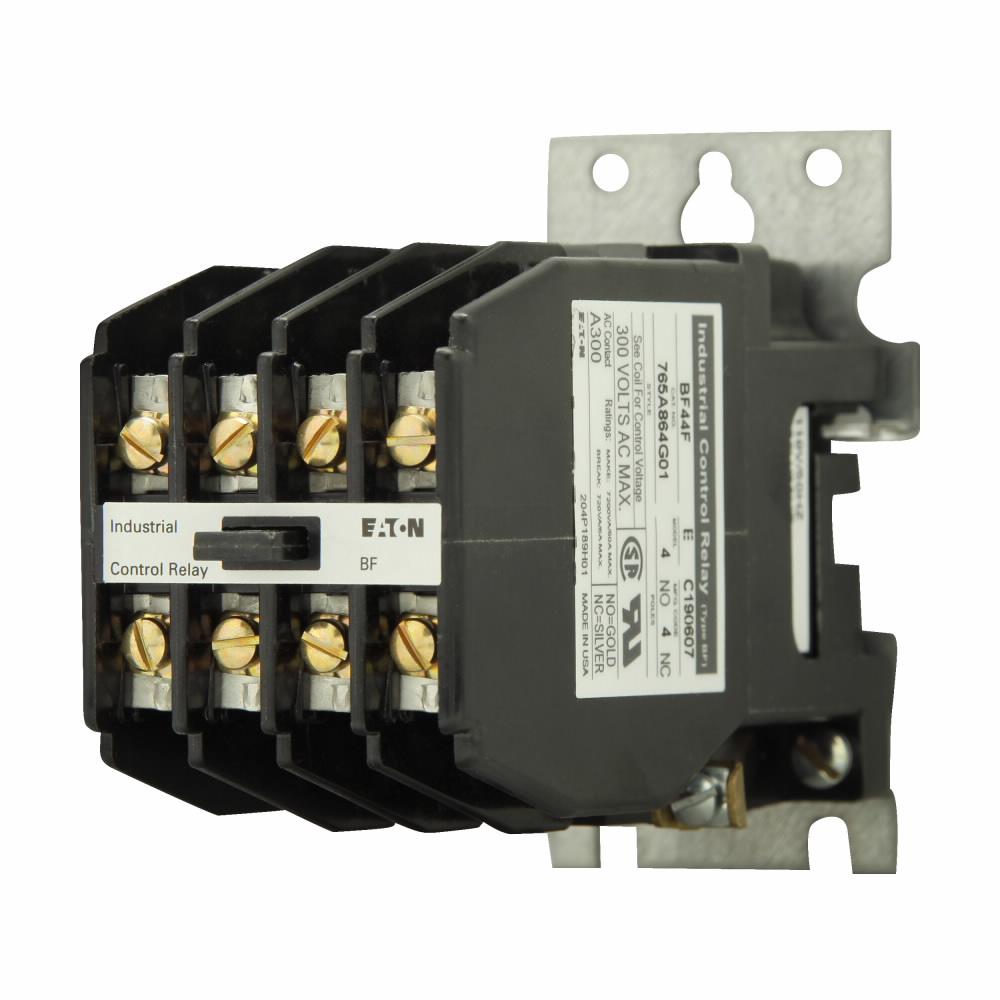

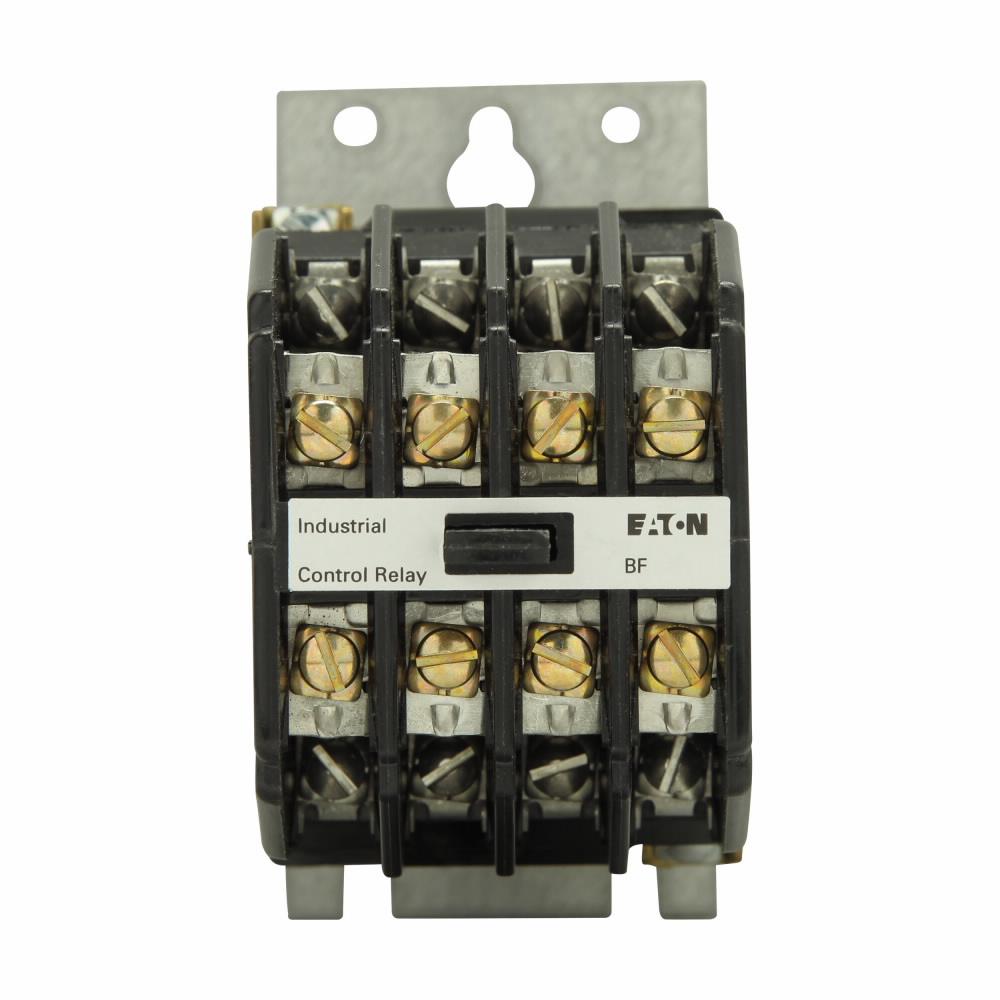

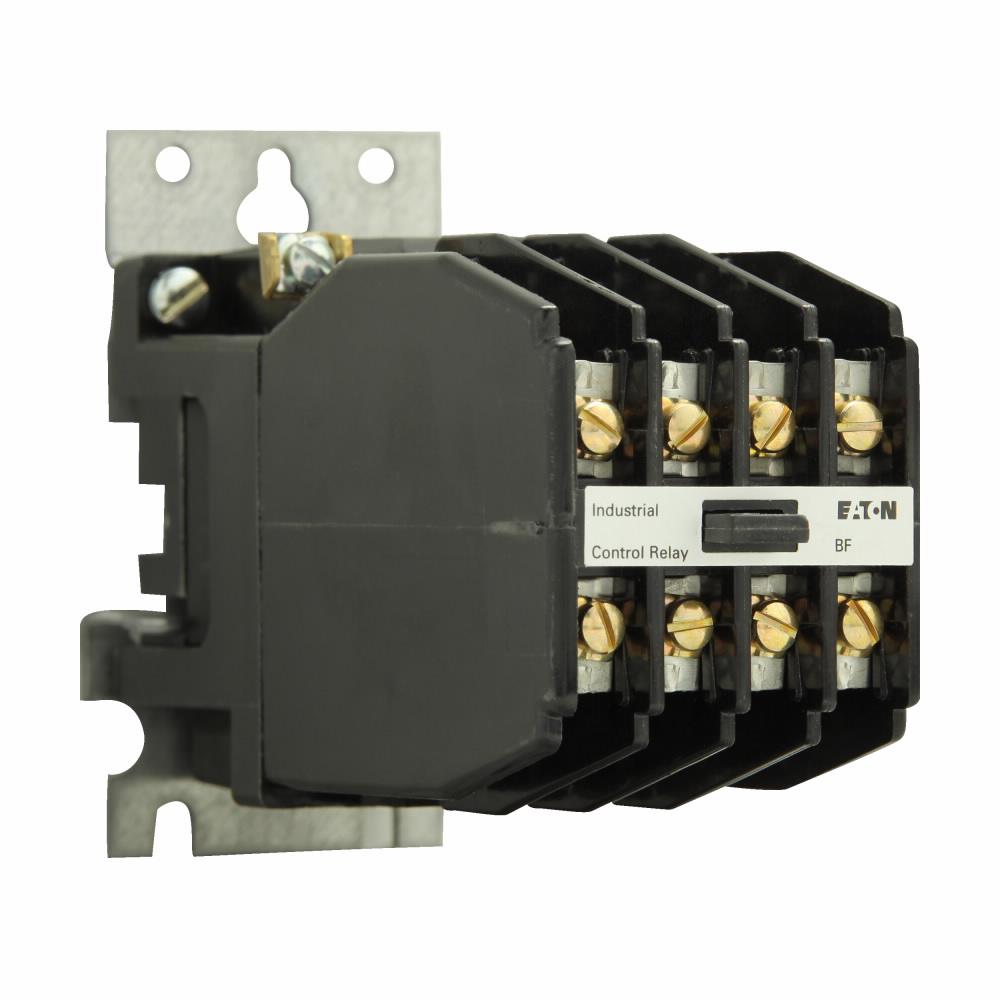

BF44F CH BF44 F RELAY A

Mouse over image to zoom, click to enlarge

  • BF44F CH BF44 F RELAY A
  • BF44F CH BF44 F RELAY A
  • BF44F CH BF44 F RELAY A
  • BF44F CH BF44 F RELAY A

Description: EATON AC Control Relay, Basic Fixed Contact Industrial, Series: BF Series, 10 A, 50/60 Hz Frequency, 110/120 V AC Coil, 4NO-4NC 4 Form C Contact Form, 8 Pole, Panel Mounting, Clamp Terminal, NEMA 1 Enclosure, 3.13 in L x 1.97 in W x 4.19 in H Dimensions

Manufacturer PN: BF44F

UPC:  78667817328

Kendall Electric Inc PN: 4667831

Invoice Description:

BF44F CH BF44 F RELAY A


SPEC SHEET

How Can We Make This Page Better?

EATON BF44F Basic Fixed Contact Industrial AC Control Relay, 10 A, 4NO-4NC 4 Form C Contact, 110/120 V AC V Coil

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

NEMA?machine tool relays include the Freedom 600 V?multi-pole (D15),?fixed?contact?industrial?control (BF, BFD),? convertible?contact?industrial?control (AR, ARD) and?type M,?multi-pole with convertible contacts (D26). These relays can be ordered as complete devices in any pole combination up to a maximum of 12NO or 8NC and 4NO poles. They are also designed for use on machines, process lines, conveyors and similar automatic and semiautomatic equipment.
EATON AC Control Relay, Basic Fixed Contact Industrial, Series: BF Series, 10 A, 50/60 Hz Frequency, 110/120 V AC Coil, 4NO-4NC 4 Form C Contact Form, 8 Pole, Panel Mounting, Clamp Terminal, NEMA 1 Enclosure, 3.13 in L x 1.97 in W x 4.19 in H Dimensions

Specifications

 Amperage Rating 10 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Coil Voltage 110/120 V AC
 Contact Form 4NO-4NC 4 Form C
 Dimensions 3.13 in L x 1.97 in W x 4.19 in H
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Manufacturer Part Number BF44F
 Mounting Type Panel
 Number of Poles 8
 PART NUMBER KEYWORDS BF44F ; 7442533 ; 786678173283 ; 78667817328 ; 00786678173283
 Series BF Series
 Standards/Approvals CSA file No. LR39402-6,UL Recognized file E19223
 Terminal Type Clamp
 Type Basic Fixed Contact Industrial

Features

▪ Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time
▪ Terminals are shrouded or finger proofed to reduce possibility of electrical shock
▪ Wide spacing of contacts simplifies installation, contact testing and maintenance
▪ Contacts are electrically and mechanically isolated from each other for added safety
▪ Surge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil for protection of sensitive instruments and solid state devices
▪ Latch coil continuously rated
▪ Latch plunger adjustable for optimum performance
