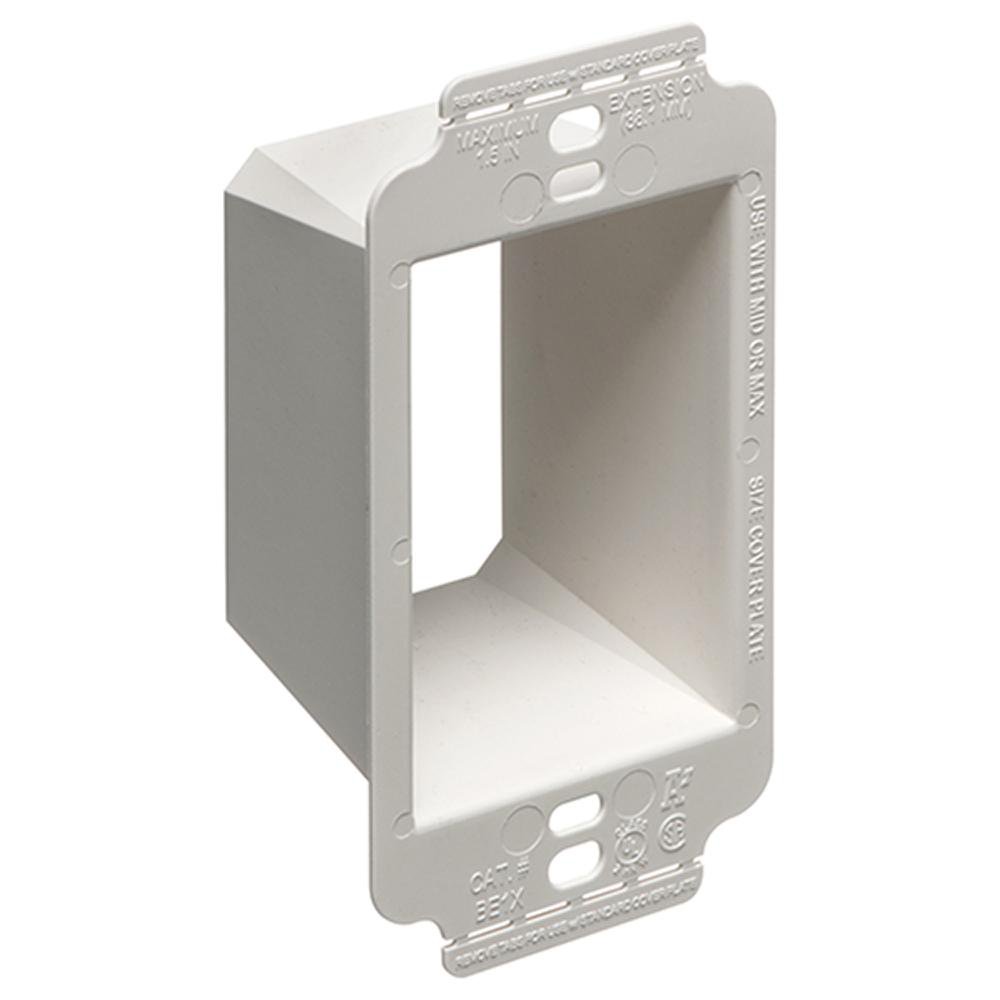

BE1X ARL X LARGE BOX EXTENDER

Mouse over image to zoom, click to enlarge

Description: Arlington Box Extender, 1 Gang, 4.628 in Length, 2.325 in Width, 1.813 in Depth, Wall Mounting, Plastic, White

Manufacturer PN: BE1X

UPC:  01899740171

Kendall Electric Inc PN: 3406669

Invoice Description:

BE1X ARL X LARGE BOX EXTENDER


SPEC SHEET

▸ See All in Switch - Device Box Extensions


How Can We Make This Page Better?

Arlington BE1X Box Extender With Larger Flange, 1 Gang, 4.628 in L x 2.325 in W x 1.813 in D, Plastic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Arlington non-conductive box extenders extend set back metal or non-metallic electrical boxes up to 1-1/2 in, the easy way. They work with any 1-gang device and most steel and non-metallic outlet boxes and provide a level, fully supported wiring device that flush with the wall surface. In steel boxes they prevent arcing and shorting by creating a barrier between the box and device screws. Our newest box extender, the BE1X, has a slightly larger flange that provides extra device support when the wall opening is miscut or oversized. It accommodates midi or maxi cover plates and costs the same as our regular single gang BE1. If you normally use a midi plate this is the box extender for you.
Arlington Box Extender, 1 Gang, 4.628 in Length, 2.325 in Width, 1.813 in Depth, Wall Mounting, Plastic, White

Specifications

 Application For handy boxes and 4 in square electrical boxes with plaster rings for a single switch or receptacle, standard devices, switches and GFCIs applications
 Brand Name Arlington
 Color White
 Depth 1.813 in
 Length 4.628 in
 Manufacturer Part Number BE1X
 Material Plastic
 Mounting Type Wall
 Number of Gangs 1
 PART NUMBER KEYWORDS BE1X ; 13048801 ; 018997401717 ; 18997401717 ; 01899740171 ; 00018997401717
 Standards/Approvals CULUS
 Video Links
 Width 2.325 in

Features

▪ Levels and supports the wiring device where the box is set back from the wall surface (adjusts up to a 1-1/2 in box extension)
▪ Functions with all standard devices, switches and GFCIs
▪ Manufactured from 105 deg c continuous use 94 V-0 rated flame-retardant plastic for safer installations
▪ 2 hr fire rating
▪ Made of heavy duty non-conductive plastic
▪ Better device support in oversized or misscut wall openings
