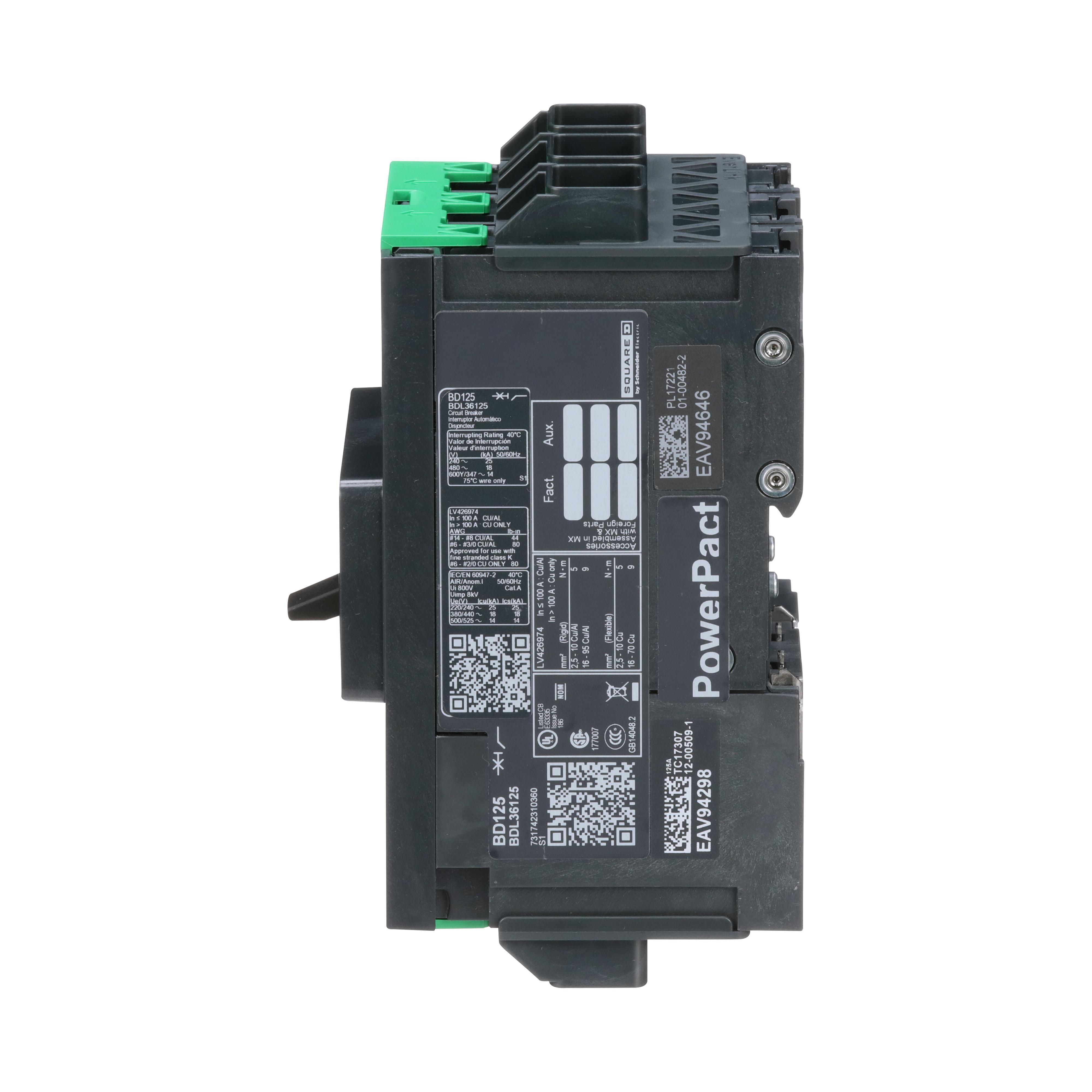

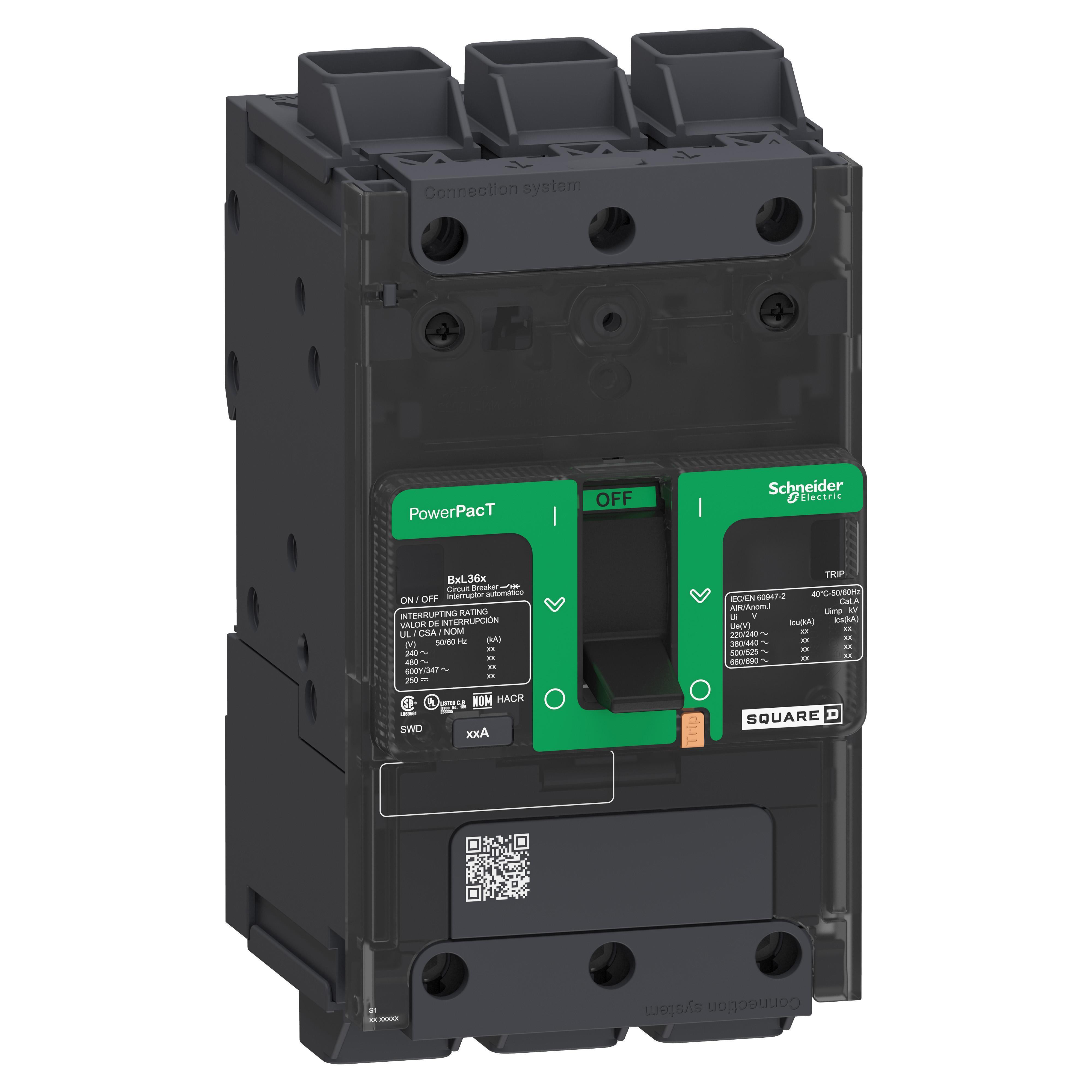

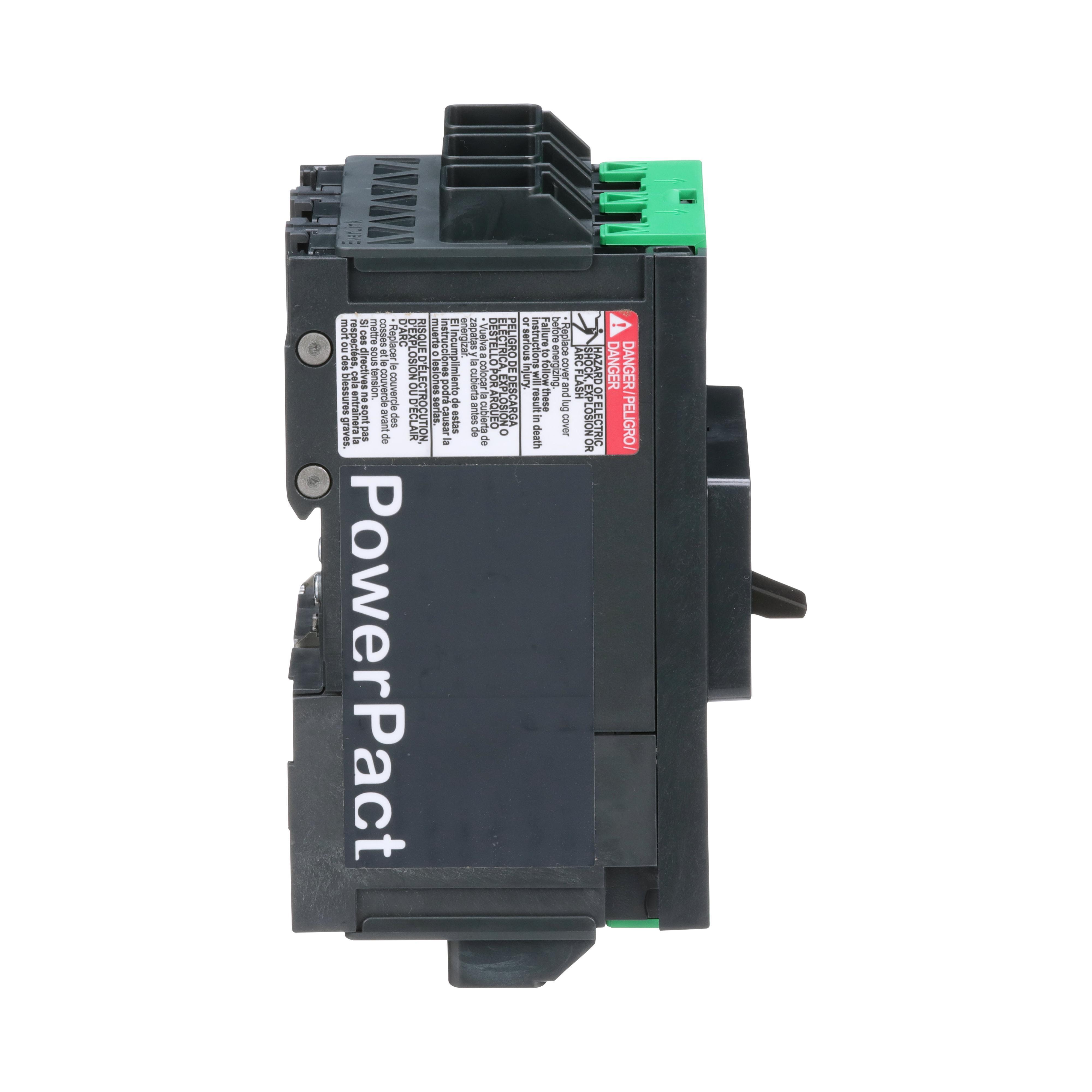

Description: Schneider Electric PowerPact™ Molded Case Circuit Breaker, Type BDL, 600Y/347 VAC, 250 VDC, 125 A, 50/60 Hz Frequency, 10/14/18/25 kA Interrupt, B Frame, Thermal Magnetic Trip, 1000 to 1500 A Trip, 3 Pole, Toggle Actuator, EverLink™ Line/Load Connection, 14 to 3/0 AWG Aluminum, 6 to 2/0 AWG Copper Wire, IP40/IK07 Enclosure, Clip-On/DIN Rail/Threaded Mounting, -13 to 158 deg F, 5.39 in H x 3.19 in W x 4.09 in D Dimensions, Gray

Manufacturer PN: BDL36125

UPC:  60648115324

Kendall Electric Inc PN: 3963234

Invoice Description:

BDL36125 SQD MOLDED CASE CIRCUIT


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

Schneider Electric PowerPact™ BDL36125 Type BDL Molded Case Circuit Breaker, 600Y/347 VAC, 250 VDC, 125 A, 10/14/18/25 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 125A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Schneider Electric PowerPact™ Molded Case Circuit Breaker, Type BDL, 600Y/347 VAC, 250 VDC, 125 A, 50/60 Hz Frequency, 10/14/18/25 kA Interrupt, B Frame, Thermal Magnetic Trip, 1000 to 1500 A Trip, 3 Pole, Toggle Actuator, EverLink™ Line/Load Connection, 14 to 3/0 AWG Aluminum, 6 to 2/0 AWG Copper Wire, IP40/IK07 Enclosure, Clip-On/DIN Rail/Threaded Mounting, -13 to 158 deg F, 5.39 in H x 3.19 in W x 4.09 in D Dimensions, Gray

Specifications

 Actuator Type Toggle
 Amperage Rating 125 A
 Application Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications
 Brand Name Square D
 Color Gray
 Connection Type EverLink™ Line/Load
 Dimensions 5.39 in H x 3.19 in W x 4.09 in D
 Enclosure IP40/IK07
 Frame B
 Frequency Rating 50/60 Hz
 Manufacturer Part Number BDL36125
 Mounting Type Clip-On/DIN Rail/Threaded
 Number of Poles 3
 Standards/Approvals BAA Compliant|CSA C22.2 #5|CCC Certified|CE Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating -13 to 158 deg F
 Trip Range 1000 to 1500 A
 Type Type BDL
 Voltage Rating 600Y to 347 V AC/250 V DC

Features

▪ Available in 1, 2, 3, and 4 pole for unit mounts
▪ Dual rated AC/DC with 3 levels of breaking capacity
▪ A wide range of accessories, auxiliaries, and lug connections available
