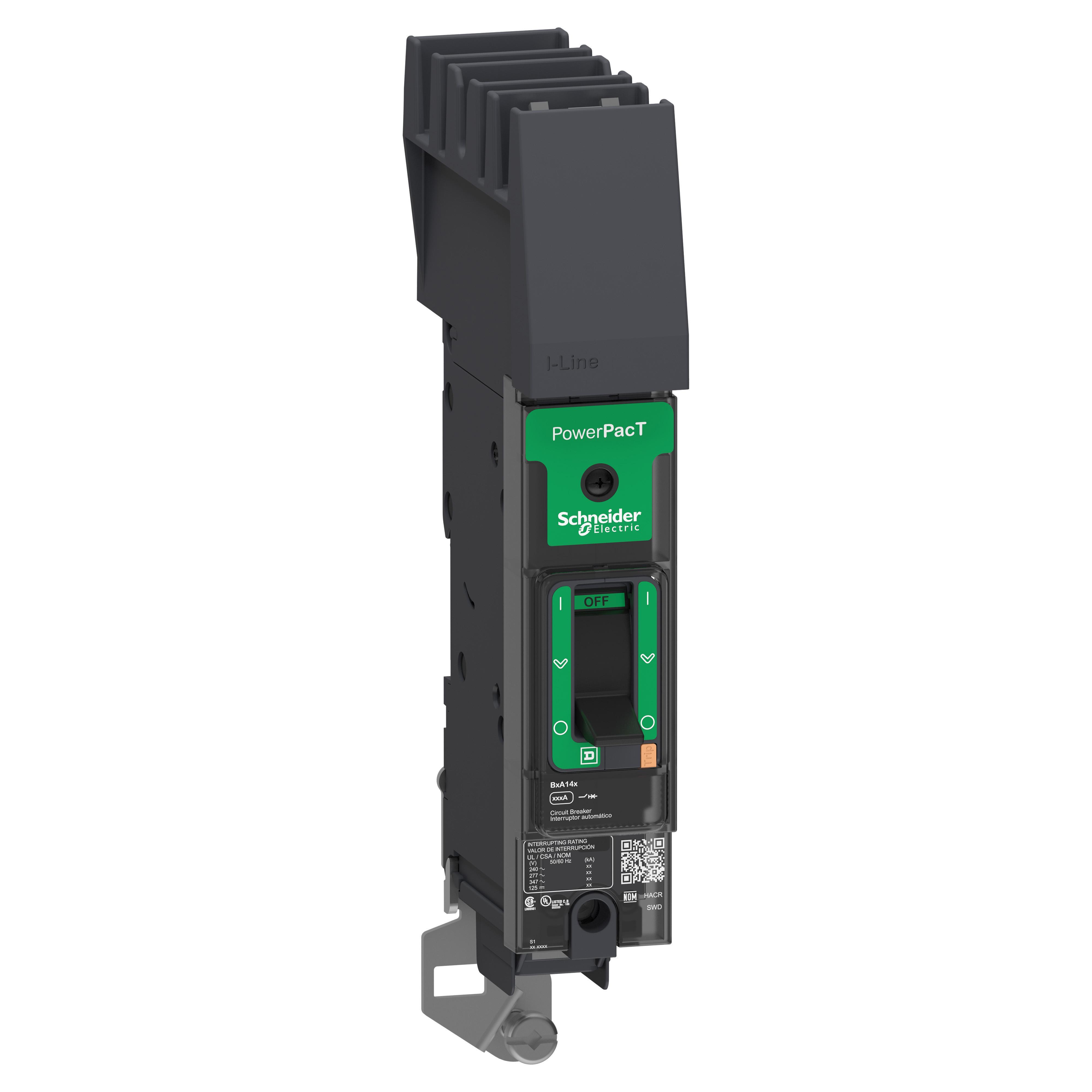

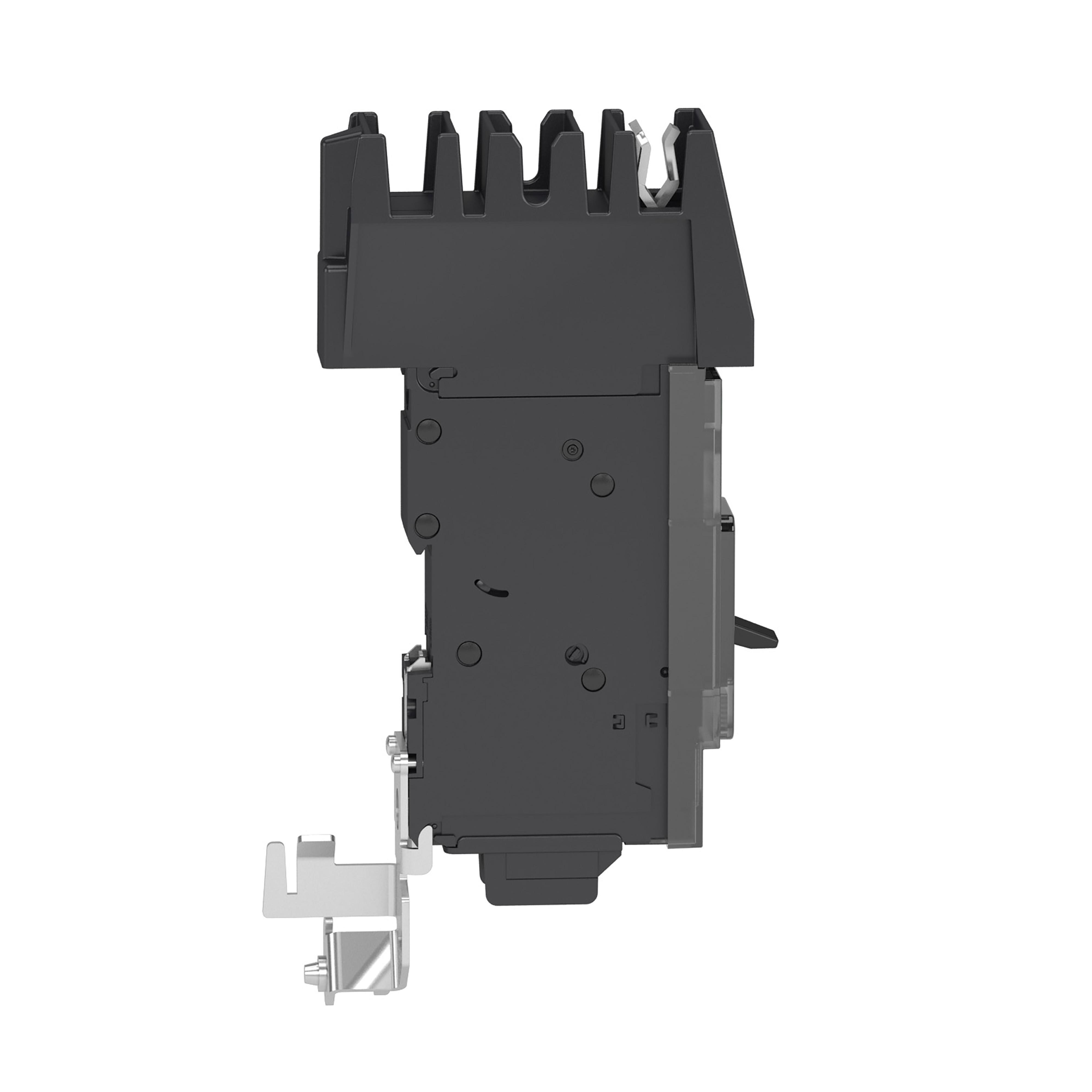

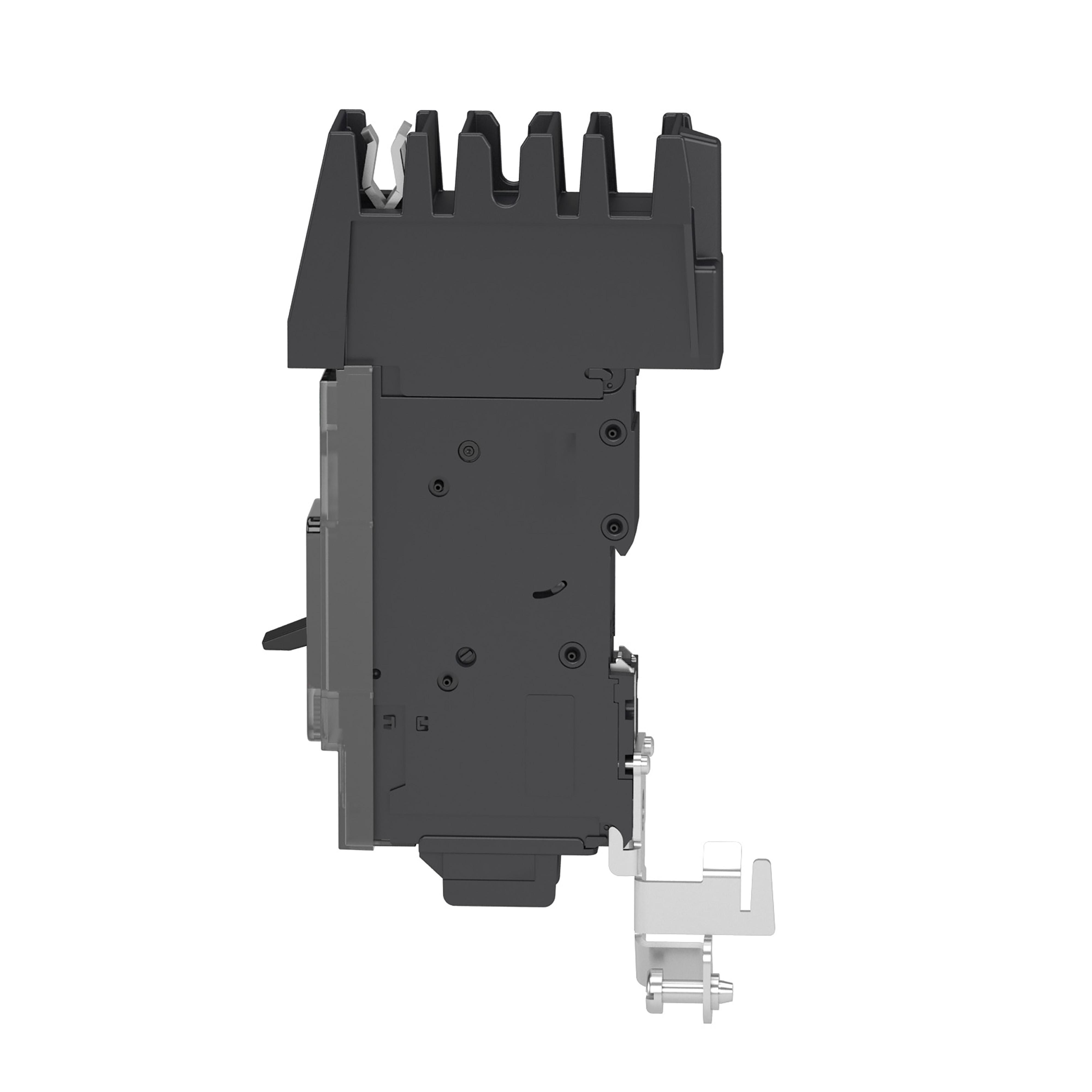

Description: Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 480Y/277 V AC, 50 A, 50/60 Hz Frequency, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 480 to 720 A Trip, 2 Pole, Toggle Actuator, Line/Load Lug Connection, 14 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mounting, -13 to 158 deg F, 2.12 in W x 4.01 in D x 5.39 in H Dimensions, Gray

Manufacturer PN: BDA140205

UPC:  60648115153

Kendall Electric Inc PN: 3963507

Invoice Description:

BDA140205 SQD MOLDED CASE CIRCUIT


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

Schneider Electric I-Line™ PowerPact™ BDA140205 Molded Case Circuit Breaker, 480Y/277 V AC, 50 A, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600Y/347 V AC Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 1 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with a C phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Schneider Electric I-Line™ PowerPact™ Molded Case Circuit Breaker, 480Y/277 V AC, 50 A, 50/60 Hz Frequency, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600Y/347 V AC Interrupt, B Frame, Thermal Magnetic Trip, 480 to 720 A Trip, 2 Pole, Toggle Actuator, Line/Load Lug Connection, 14 to 2/0 AWG Al/Cu Wire, NEMA AB4/IP40 Enclosure, DIN Rail/Threaded Mounting, -13 to 158 deg F, 2.12 in W x 4.01 in D x 5.39 in H Dimensions, Gray

Specifications

 Actuator Type Toggle
 Amperage Rating 50 A
 Application Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications
 Brand Name Square D
 Color Gray
 Connection Type Line/Load Lug

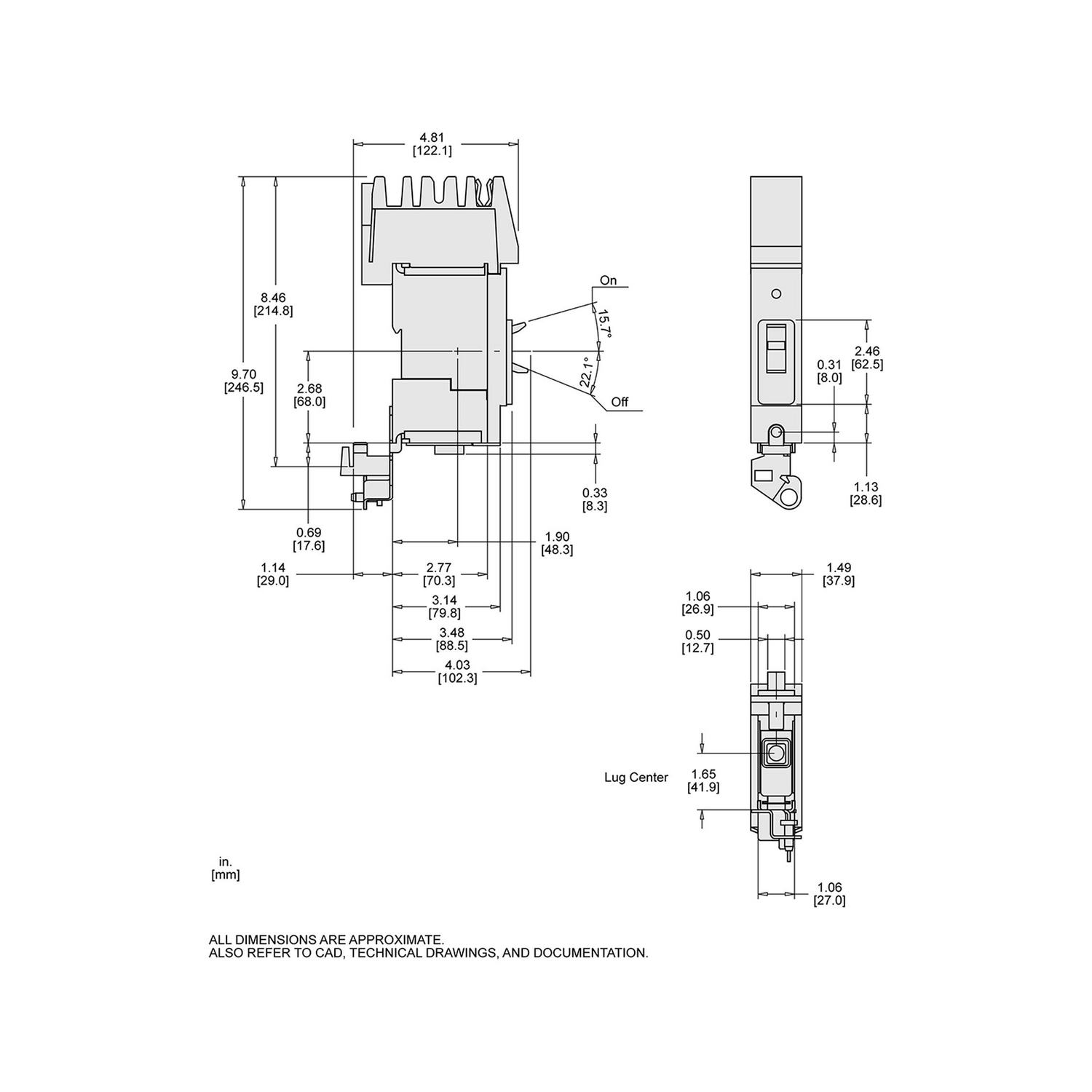

 Dimensions 2.12 in W x 4.01 in D x 5.39 in H
 Enclosure NEMA AB4/IP40
 Frame B
 Frequency Rating 50/60 Hz
 Manufacturer Part Number BDA140205
 Mounting Type DIN Rail/Threaded
 Number of Poles 2
 PART NUMBER KEYWORDS BDA140205 ; 13949389 ; 03606481151537 ; 3606481151537
 Standards/Approvals BAA Compliant|CSA C22.2 #5|CCC Certified|CE Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489|PROP65: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Temperature Rating -13 to 158 deg F
 Trip Range 480 to 720 A
 Voltage Rating 480Y/277 V AC

Features

▪ Available in 1, 2, 3, and 4 pole for unit mounts
▪ Dual rated AC/DC with 3 levels of breaking capacity
▪ A wide range of accessories, auxiliaries, and lug connections available
