nVent

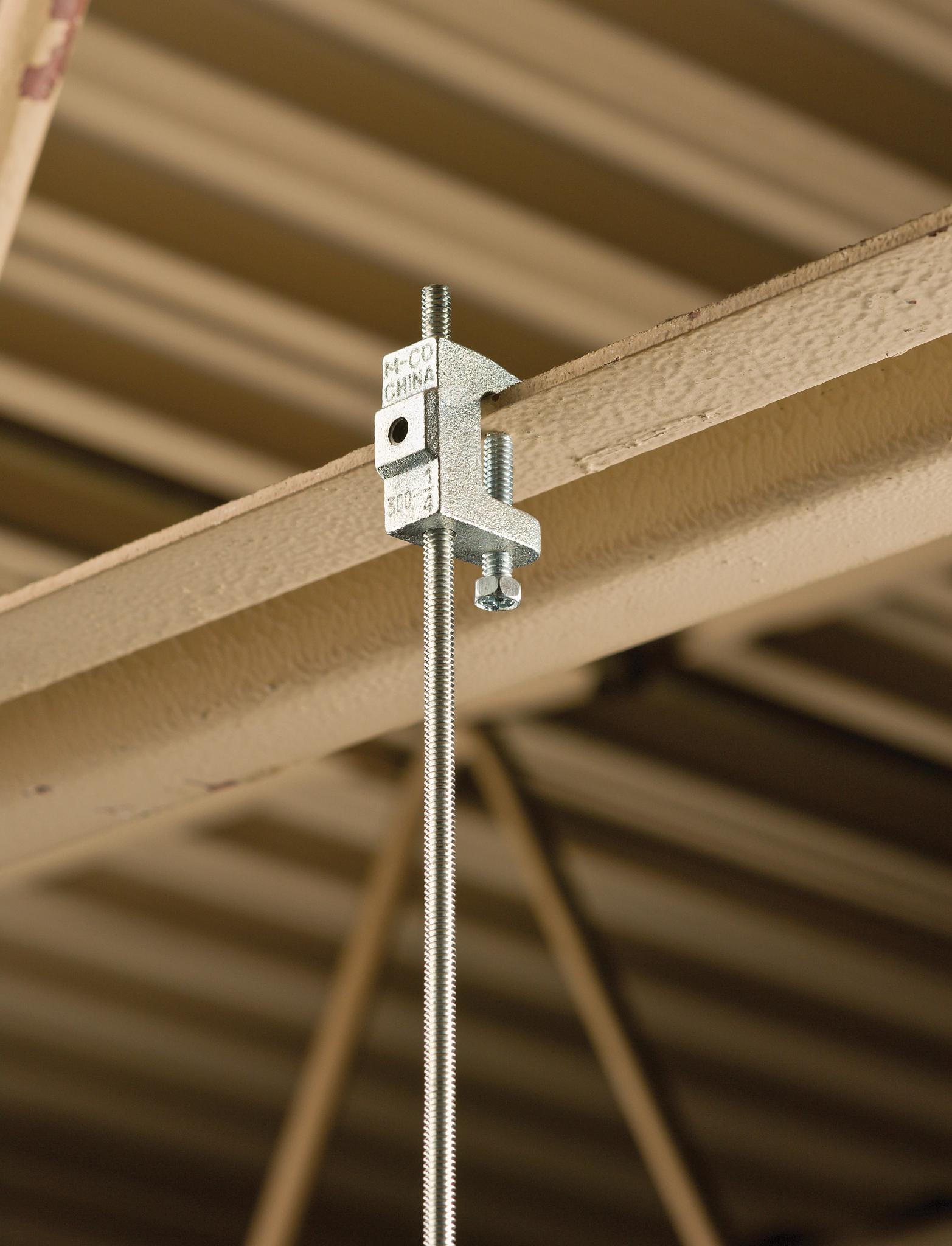

BC260025EG CDY 1/4IN REVERSIBLE BEAM CLAMP 100/BOX..

Mouse over image to zoom, click to enlarge

  • BC260025EG CDY 1/4IN REVERSIBLE BEAM CLAMP 100/BOX..
  • BC260025EG CDY 1/4IN REVERSIBLE BEAM CLAMP 100/BOX..

Description: nVent CADDY Beam Clamp, Universal, Series: BC26, 1/4 in Rod, 13/16 in Flange Thickness, 100/250 lb Static, For Use With: Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron, 13/16 in Hole, 1/4 in Dia Screw, 40 ft-lb Torque, Steel, Electro-Galvanized, 3/4 in L x 3/4 in W

Manufacturer PN: BC260025EG

UPC:  78285634025

Kendall Electric Inc PN: 23621

Invoice Description:

BC260025EG CDY 1/4IN REVERSIBLE BEAM CLAMP 100/BOX..


SPEC SHEET

▸ See All in Channel to Beam Clamps


How Can We Make This Page Better?

nVent CADDY BC260025EG Universal Beam Clamp With Tapped Hole, 1/4 in Rod, 13/16 in THK Flange, 100/250 lb Static Load, Steel, Electro-Galvanized

Log In for Pricing and Availability




Description

nVent CADDY Beam Clamp, Universal, Series: BC26, 1/4 in Rod, 13/16 in Flange Thickness, 100/250 lb Static, For Use With: Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron, 13/16 in Hole, 1/4 in Dia Screw, 40 ft-lb Torque, Steel, Electro-Galvanized, 3/4 in L x 3/4 in W

Specifications

 Application Datacom and Low Voltage, Electrical, HVAC, Plumbing and Refrigeration Applications
 Brand Name nVent CADDY
 Dimensions 3/4 in L x 3/4 in W
 Finish Electro-Galvanized
 Flange Thickness 13/16 in
 Load Capacity 100/250 lb Static
 Manufacturer Part Number BC260025EG
 Material Steel
 PART NUMBER KEYWORDS BC260025EG ; 14846493 ; 782856340256 ; 78285634025
 Rod Size 1/4 in
 Series BC26
 Specifications 13/16 in Hole, 1/4 in Dia Screw, 40 ft-lb Torque
 Standards/Approvals cULus Listed|Federal Specification WW-H-171 Type 23|ANSI/MSS-SP-58 Type 19 and 23|RoHS Compliant
 Suitable For Use With Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron
 Type Universal

Features

▪ One thru-hole for easier installation of threaded rod
