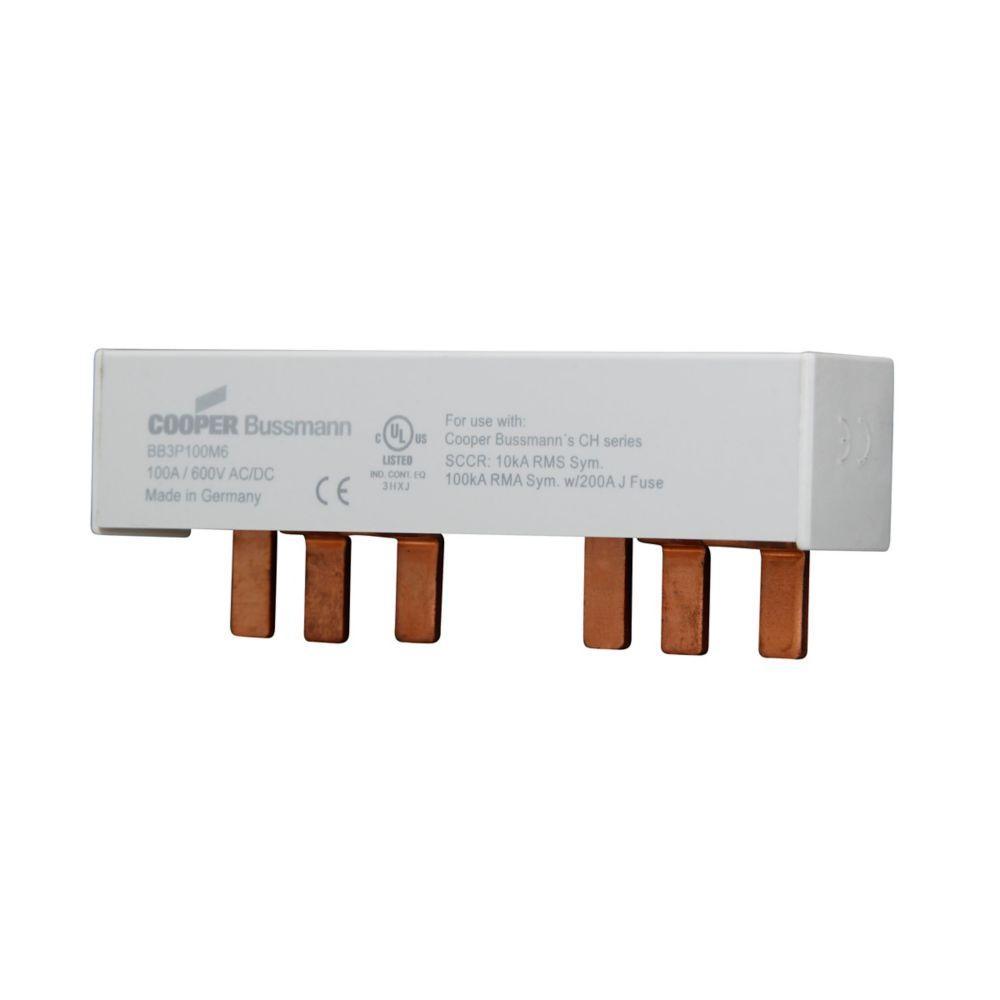

BB3P100M6 BUSSMANN THREE PHASE BB 100A, 6 PINS, ASSEMBLED (1)

Mouse over image to zoom, click to enlarge

  • BB3P100M6 BUSSMANN THREE PHASE BB 100A, 6 PINS, ASSEMBLED (1)
  • BB3P100M6 BUSSMANN THREE PHASE BB 100A, 6 PINS, ASSEMBLED (1)

Description: EATON Combination Busbar, 3-Phase 6-Pin Modular, For Use With: PV Series Class J/CC/Supplemental Non-Indicating Fuse, 600 V AC/DC, 100 A, 104 mm L

Manufacturer PN: BB3P100M6

UPC:  05171236603

Kendall Electric Inc PN: 3359320

Invoice Description:

BB3P100M6 BUSSMANN THREE PHASE BB 100A, 6 PINS, ASSEMBLED (1)


SPEC SHEET

How Can We Make This Page Better?

EATON BB3P100M6 3-Phase 6-Pin Modular Combination Busbar With Assembled End Cap, For Use With PV Series Class J/CC/Supplemental Non-Indicating Fuse, 600 V AC/DC, 100 A

Log In for Pricing and Availability




Description

EATON Combination Busbar, 3-Phase 6-Pin Modular, For Use With: PV Series Class J/CC/Supplemental Non-Indicating Fuse, 600 V AC/DC, 100 A, 104 mm L

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Dimensions 104 mm L
 Manufacturer Part Number BB3P100M6
 PART NUMBER KEYWORDS BB3P100M6 ; 11278867 ; 051712366038 ; 51712366038 ; 05171236603 ; 00051712366038
 Specifications 600 V AC/DC, 100 A
 Standards/Approvals RoHS Compliant
 Suitable For Use With PV Series Class J/CC/Supplemental Non-Indicating Fuse
 Type 3-Phase 6-Pin Modular
 Video Links

Features

▪ Flexible cut to length solutions without compromising on the product's finger safe features
▪ 100 kA short circuit current rating when protected by a 200 A class J fuse
▪ 3 ph bus bars rated to 600 VAC/VDC and 100 A in end-fed configuration
▪ Power feed terminals for 3 ph systems
