Eaton

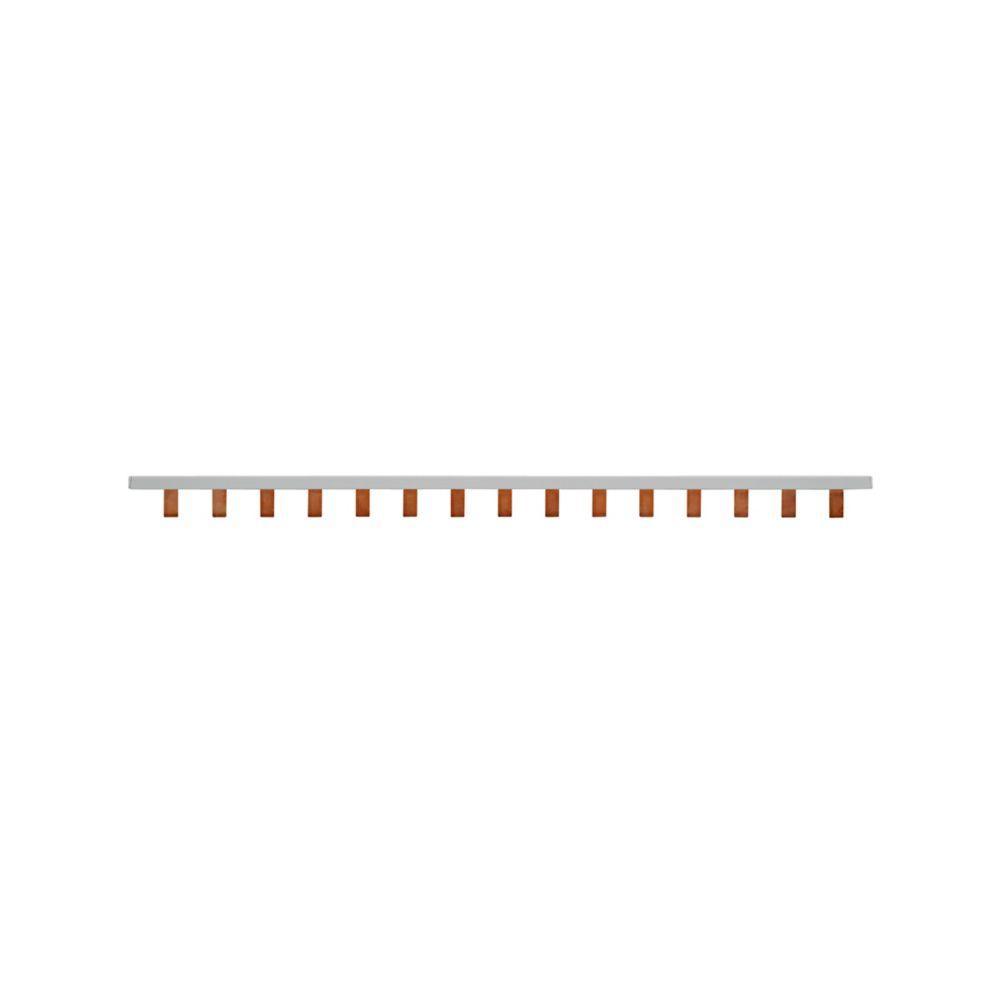

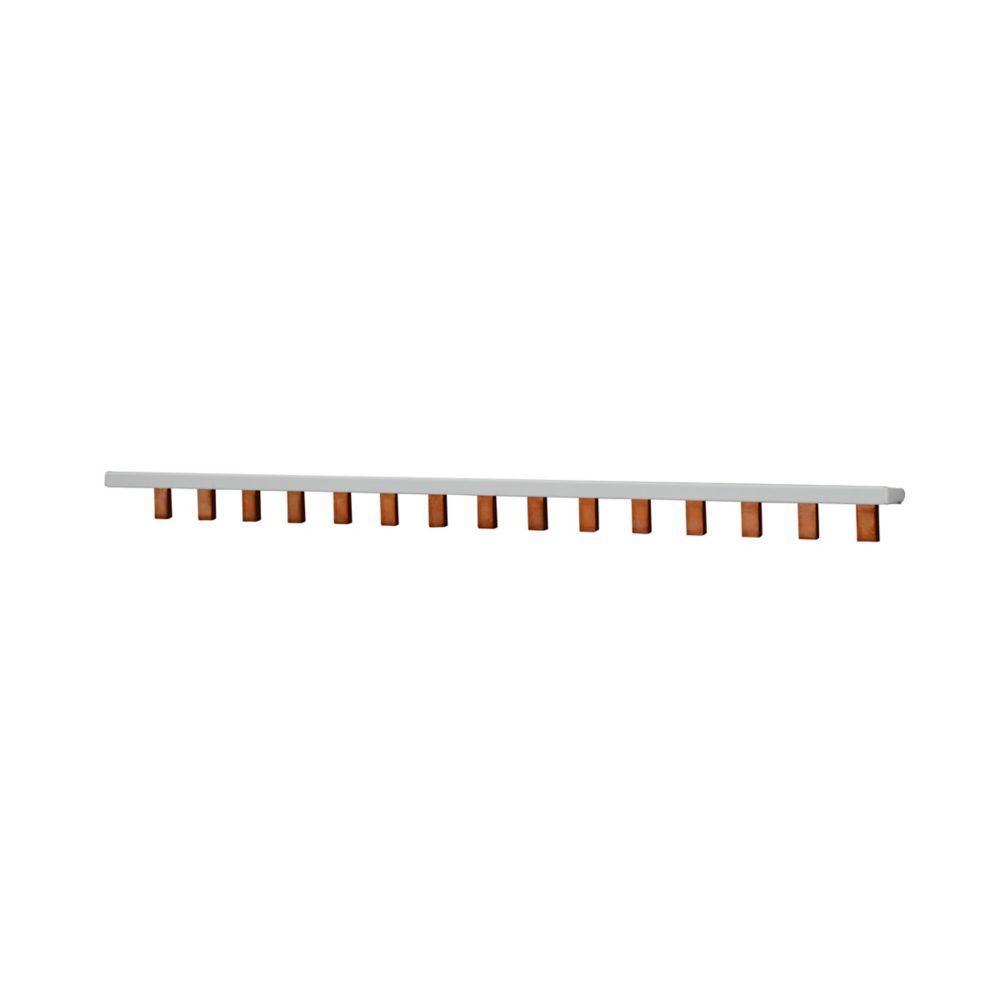

BB1P100M15 BUS SNGL-PHASE 1000V DC BB 100A 15 PINS EC

Mouse over image to zoom, click to enlarge

  • BB1P100M15 BUS SNGL-PHASE 1000V DC BB 100A 15 PINS EC
  • BB1P100M15 BUS SNGL-PHASE 1000V DC BB 100A 15 PINS EC
  • BB1P100M15 BUS SNGL-PHASE 1000V DC BB 100A 15 PINS EC

Description: EATON Combination Busbar, 1-Phase 15-Pin Modular, For Use With: PV Series Class J/CC/Supplemental Non-Indicating Fuse, 100 V DC, 100 A, 272 mm L

Manufacturer PN: BB1P100M15

UPC:  05171236601

Kendall Electric Inc PN: 2880397

Invoice Description:

BB1P100M15 BUS SNGL-PHASE 1000V DC BB 100A 15 PINS EC


SPEC SHEET

▸ See All in Plugs, Caps and Replacement Parts


How Can We Make This Page Better?

EATON BB1P100M15 1-Phase 15-Pin Modular Combination Busbar With Assembled End Cap, For Use With PV Series Class J/CC/Supplemental Non-Indicating Fuse, 100 V DC, 100 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON Combination Busbar, 1-Phase 15-Pin Modular, For Use With: PV Series Class J/CC/Supplemental Non-Indicating Fuse, 100 V DC, 100 A, 272 mm L

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name Bussmann
 Dimensions 272 mm L
 Manufacturer Part Number BB1P100M15
 Specifications 100 V DC, 100 A
 Standards/Approvals RoHS Compliant|UL 508 File No. E195399
 Suitable For Use With PV Series Class J/CC/Supplemental Non-Indicating Fuse
 Type 1-Phase 15-Pin Modular
 Video Links

Features

▪ Flexible cut to length solutions without compromising on the product's finger safe features
▪ 100 kA short circuit current rating when protected by a 200 A class J fuse
▪ 1 ph bus bars rated to 1000 VDC and 100 A in end fed configuration
▪ Power feed terminals for 1 ph systems
