Eaton
BAC05 BUS AUX CONTACT 1NO (1)

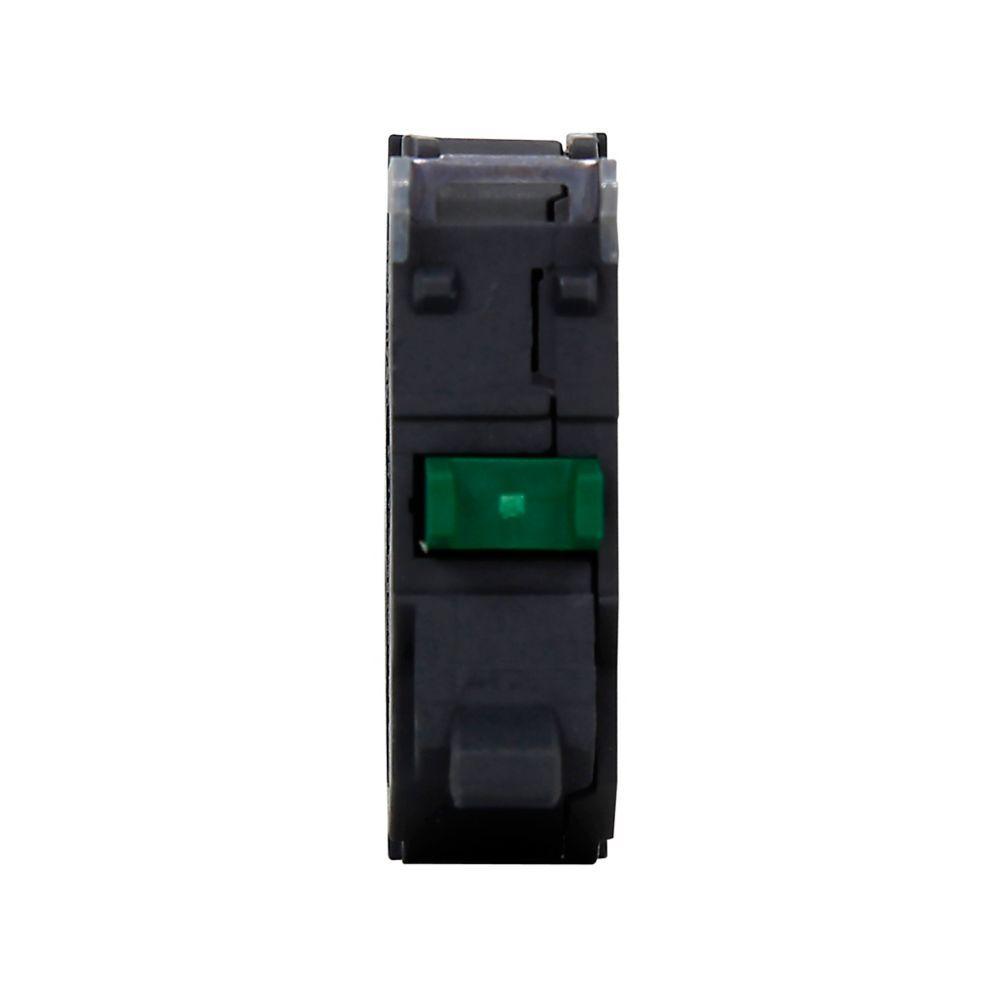

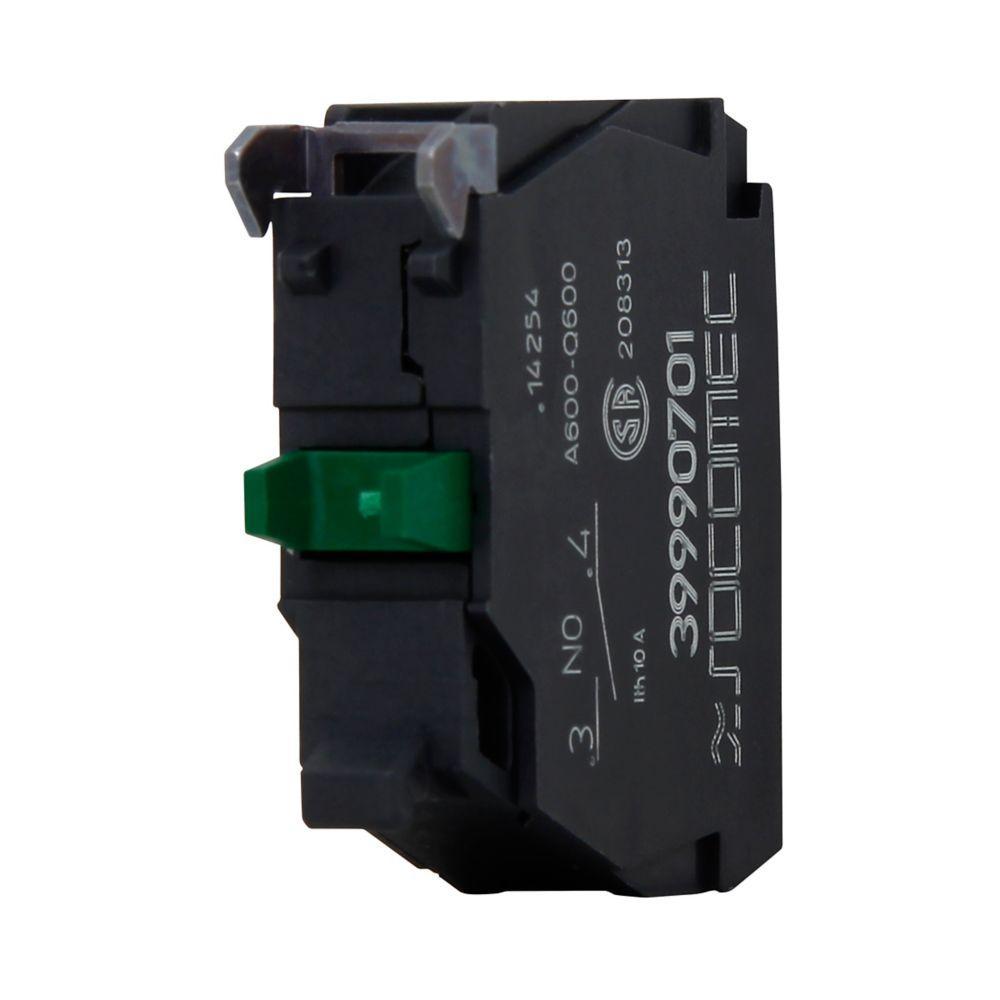

Mouse over image to zoom, click to enlarge

  • BAC05 BUS AUX CONTACT 1NO (1)
  • BAC05 BUS AUX CONTACT 1NO (1)
  • BAC05 BUS AUX CONTACT 1NO (1)

Description: Bussmann Auxiliary Contact, 600 V AC, 10 A, 1NO Contacts, For Use With: 30 A Fused Rotary Disconnect Switches, 1.27 in L x 0.38 in W x 1.1 in H Dimensions

Manufacturer PN: BAC05

UPC:  05171240158

Kendall Electric Inc PN: 3257927

Invoice Description:

BAC05 BUS AUX CONTACT 1NO (1)


SPEC SHEET

▸ See All in Safety/Disconnect Auxiliary Contacts


How Can We Make This Page Better?

Bussmann BAC05 Auxiliary Contact, 600 V AC, 10 A, 1NO Contacts

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann series enclosed rotary disconnects provide an easy to install solution for providing a switch for power. Enclosed compact circuit protectors (CCP) offer some of the smallest options in the market for increasing protection and panel SCCR, available for 30 amp Class CC fuses, and up to 60A for class CF fuses. Other UL 98 options include up to 1200A non-fused and up to 800A Class L fused options. UL 508 load break disconnects for control and disconnecting means for motor applications.
Bussmann Auxiliary Contact, 600 V AC, 10 A, 1NO Contacts, For Use With: 30 A Fused Rotary Disconnect Switches, 1.27 in L x 0.38 in W x 1.1 in H Dimensions

Specifications

 Amperage Rating 10 A
 Application Stationary Machinery and Equipment Applications
 Brand Name Bussmann
 Dimensions 1.27 in L x 0.38 in W x 1.1 in H
 Manufacturer Part Number BAC05
 PART NUMBER KEYWORDS BAC05 ; 19844697 ; 051712401586 ; 51712401586 ; 05171240158 ; 00051712401586
 Standards/Approvals Contact Manufacturer,RoHS Compliant,Not Applicable
 Suitable For Use With 30 A Fused Rotary Disconnect Switches
 Video Links
 Voltage Rating 600 V AC

Features

▪ (4) auxiliary contacts per switch

Resources

 Catalog Page
 Product Data Sheet
