Eaton
  • BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..
  • BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..
  • BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..
  • BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..
  • BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..
  • BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..

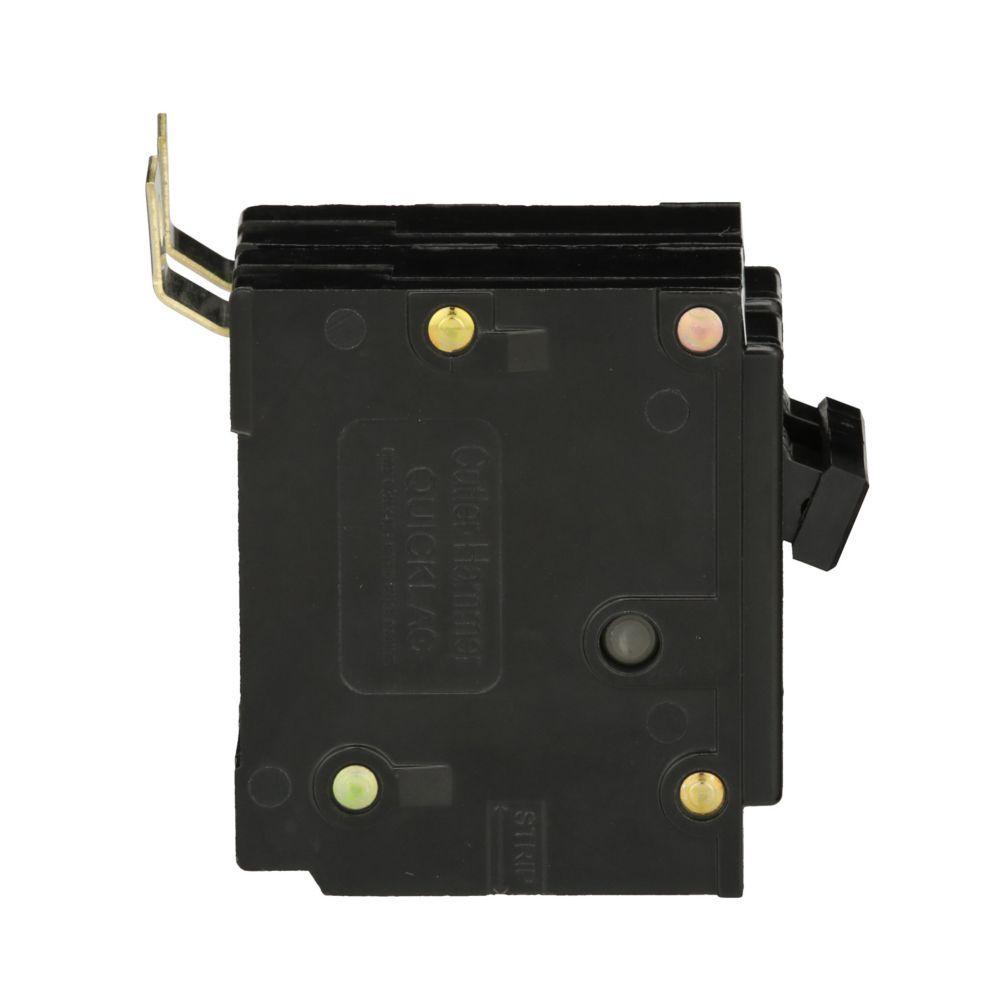

Description: EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 V AC, 60 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Steel Box Lug, 8 to 1/0 AWG Wire, Bolt-On Mount, 40 deg C, 3.8 in L x 2.2 in W x 4.8 in H

Manufacturer PN: BAB2060

UPC:  78667930260

Kendall Electric Inc PN: 2020381

Invoice Description:

BAB2060 CH CIRCUIT BREAKER 2P 60 AMP 120/240V..


SPEC SHEET

▸ See All in Molded Case Circuit Breakers


How Can We Make This Page Better?

EATON QuickLag® BAB2060 Type BAB Miniature Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Description

Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.
EATON QuickLag® Miniature Circuit Breaker, Type BAB, 120/240 V AC, 60 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Steel Box Lug, 8 to 1/0 AWG Wire, Bolt-On Mount, 40 deg C, 3.8 in L x 2.2 in W x 4.8 in H

Specifications

 Amperage Rating 60 A
 Application Datacentres, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities, Protection of Panel boards and Industrial Applications
 Brand Name EATON
 Connection Type Steel Box Lug
 Dimensions 3.8 in L x 2.2 in W x 4.8 in H
 Frequency Rating 50/60 Hz
 Manufacturer Part Number BAB2060
 Mounting Type Bolt-On
 Number of Poles 2
 Phase 1
 Standards/Approvals CSA Certified,UL Listed
 Temperature Rating 40 deg C
 Type Type BAB
 Video Links
 Voltage Rating 120/240 V AC

Features

▪ Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installations
▪ Field mountable accessories make installations and on-site custom configuration easy

Resources

 Catalog Page
 Product Data Sheet
