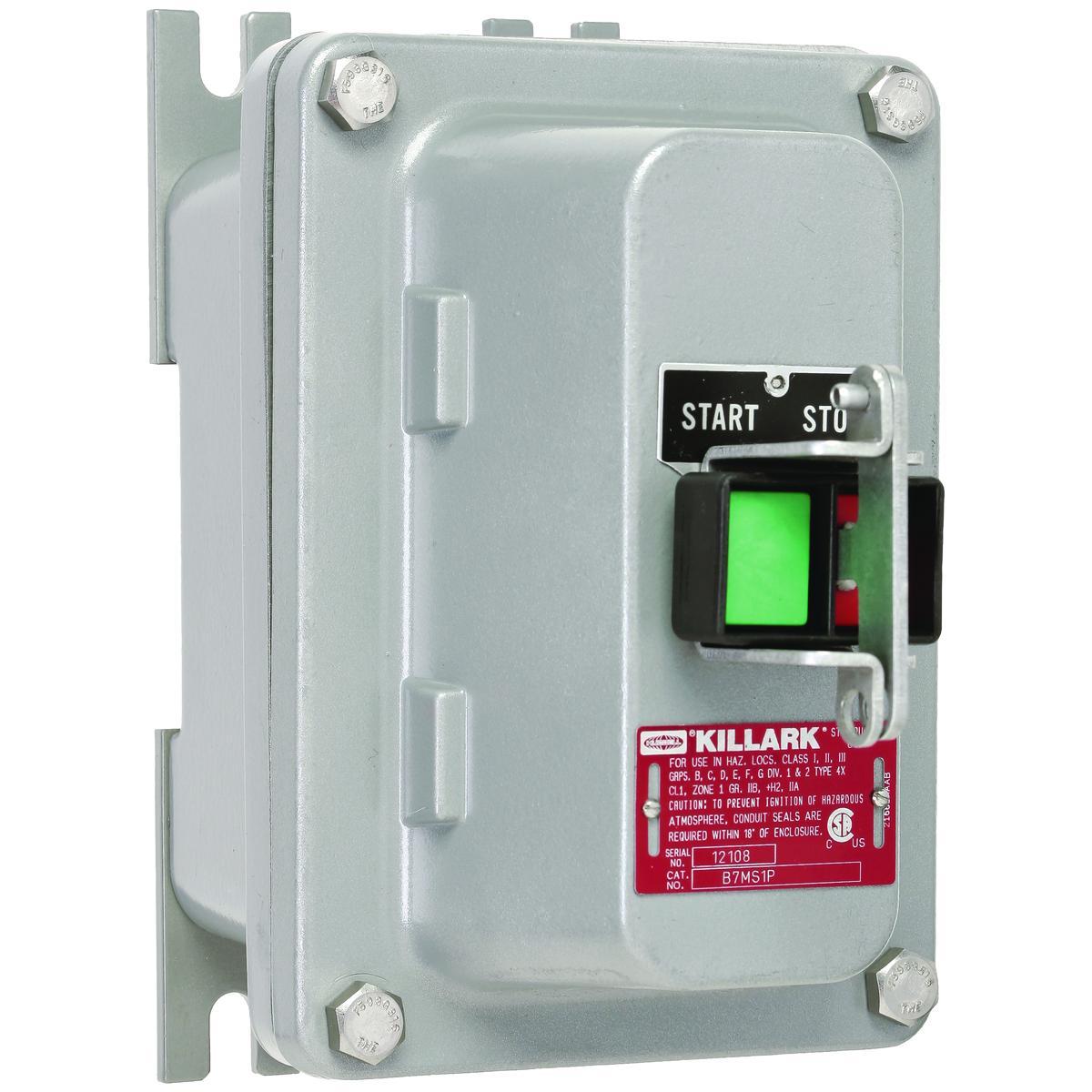

B7MS1PS-6 KILLARK B7 SERIES STRTR ENCL PB IEC SQD 7.5HP

Mouse over image to zoom, click to enlarge

  • B7MS1PS-6 KILLARK B7 SERIES STRTR ENCL PB IEC SQD 7.5HP
  • B7MS1PS-6 KILLARK B7 SERIES STRTR ENCL PB IEC SQD 7.5HP

Description: Killark®, B7MS1PS-6, Aluminum Compact Push Button, Series: B7MS, 600 V, 7.5 hp Motor, NEMA 3/4/4X Enclosure, Aluminum

Manufacturer PN: B7MS1PS-6

UPC:  78393601226

Kendall Electric Inc PN: 4648511

Invoice Description:

B7MS1PS-6 KILLARK B7 SERIES STRTR ENCL PB IEC SQD 7.5HP


SPEC SHEET

▸ See All in Hazardous Location Motor Starters



Killark® B7MS1PS-6 B7MS Aluminum Compact Push Button, NEMA 3/4/4X Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Killark's B7MS Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Available with either "Push-Button" or "Rotary" style operators, the internal IEC-style starter is available in manufacturer configurations including Square D and ABB. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Killark®, B7MS1PS-6, Aluminum Compact Push Button, Series: B7MS, 600 V, 7.5 hp Motor, NEMA 3/4/4X Enclosure, Aluminum

Specifications

 Application For use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors and where overload protection is needed, manual starters are generally used on small machine tools, fans and blowers, pumps, compressors and conveyors, as well as many other types of electrical equipment
 Brand Name Killark
 Coil Voltage 600 V AC
 Dimensions 8-1/6 in H x 5-3/4 in W x 6-5/16 in D
 Enclosure NEMA 3/4/4X
 Full Load Current 6 to 10 A
 Manufacturer Part Number B7MS1PS-6
 Material Aluminum
 Motor Power 7.5 hp
 Number of Poles 3
 PART NUMBER KEYWORDS B7MS1PS-6 ; B7MS1PS6 ; 783936012261 ; 78393601226 ; 00783936012261
 Phase 3
 Reset Type Push Button
 Series B7MS
 Standards/Approvals cCSAus LR11714|Class I, Divisions 1 and 2, Groups B, C, D|Class I, Zones 1 and 2, Groups IIB+H2, IIA|Class II, Divisions 1 and 2, Groups E, F, G|Class III, Divisions 1 and 2|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
 Voltage Rating 600 V

Features

▪ Type 4, 4X rated for protection from hose directed water and corrosion
▪ Pre-drilled to facilitate easy field installation of starters
▪ Either rotary or push button operator
▪ Provisions for drain and breather
▪ Bolt on ductile mounting lugs
