Eaton

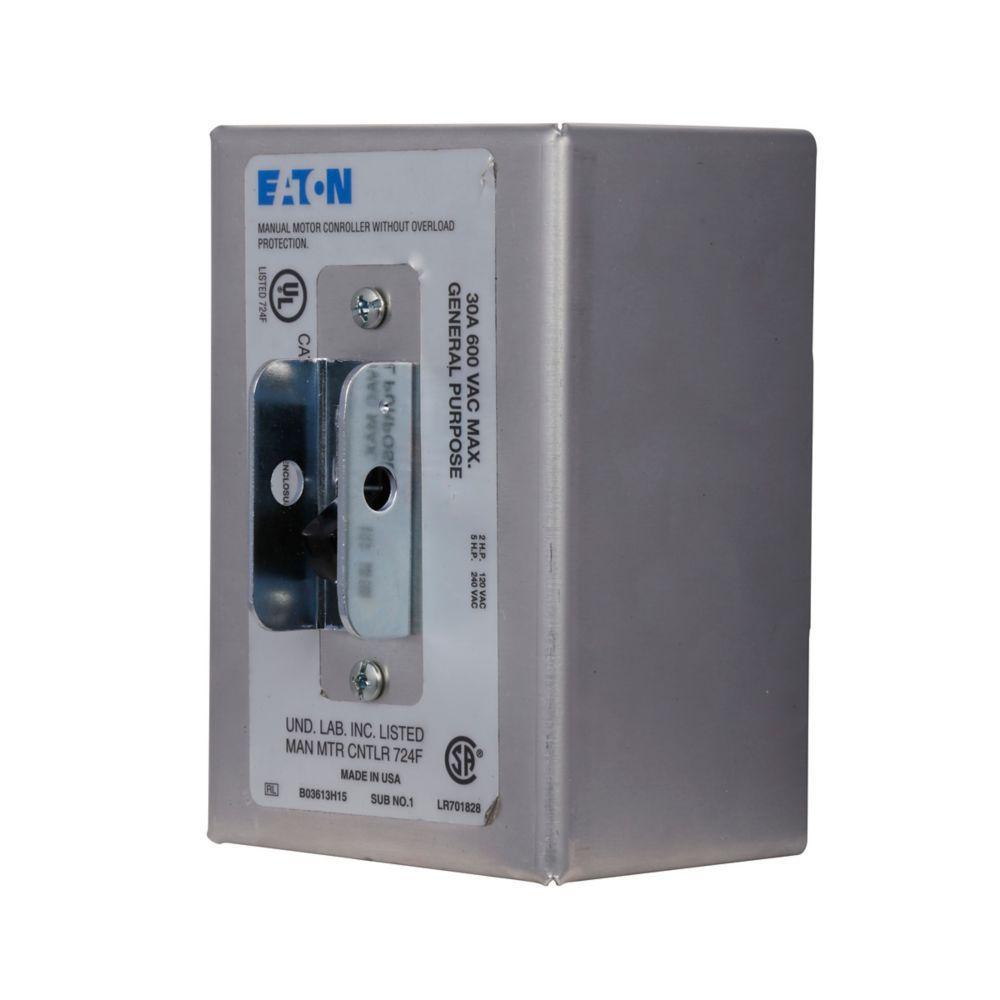

B230BGD CH 2P NEMA 1 ENCL MANUAL MOTOR SWITCH

Mouse over image to zoom, click to enlarge

  • B230BGD CH 2P NEMA 1 ENCL MANUAL MOTOR SWITCH
  • B230BGD CH 2P NEMA 1 ENCL MANUAL MOTOR SWITCH
  • B230BGD CH 2P NEMA 1 ENCL MANUAL MOTOR SWITCH

Description: EATON Manual Motor Switch, Type B230 Non-Reversing, 600 V AC, 2 hp, 5 hp, 10 hp, 15 hp, 2 Pole, NEMA 1 Enclosure, 4.72 in L x 3.2 in W x 3.09 in H

Manufacturer PN: B230BGD

UPC:  78211415508

Kendall Electric Inc PN: 2473669

Invoice Description:

B230BGD CH 2P NEMA 1 ENCL MANUAL MOTOR SWITCH


SPEC SHEET

How Can We Make This Page Better?

EATON B230BGD Type B230 Non-Reversing Manual Motor Switch, 600 V AC, 2 hp, 5 hp, 10 hp, 15 hp Power Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. These adjustable bimetallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors.
EATON Manual Motor Switch, Type B230 Non-Reversing, 600 V AC, 2 hp, 5 hp, 10 hp, 15 hp, 2 Pole, NEMA 1 Enclosure, 4.72 in L x 3.2 in W x 3.09 in H

Specifications

 Application Fans, Blowers, Pumps, Wood Working Equipment and Machine Tools
 Brand Name EATON
 Dimensions 4.72 in L x 3.2 in W x 3.09 in H
 Enclosure NEMA 1
 Manufacturer Part Number B230BGD
 Number of Poles 2
 PART NUMBER KEYWORDS B230BGD ; 7379008 ; 782114155080 ; 78211415508 ; 00782114155080
 Power Rating 2 hp, 5 hp, 10 hp, 15 hp
 Standards/Approvals UL Listed file E146654,CSA File No. LR710828 (Class 3211-05),UL Listed,CSA Certified
 Type Type B230 Non-Reversing
 Voltage Rating 600 V AC

Features

▪ Compact size
▪ Easy installation
▪ Simple operation
▪ Without overload
▪ 2 hp at 120 V, 5 hp at 240 V, 10 hp at 480 V, 15 hp at 600 V

Resources

 Catalog Page
 Product Data Sheet
