Lutron Electronics
  • AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE
  • AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE
  • AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE
  • AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE
  • AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE
  • AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE

Description: Lutron®, AYCL-253P-WH, Dimmer Switch, 3-Way Traditional Style, Series: Ariadni® C.L™, 120 VAC, 250/350/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Toggle Control, NEMA SSL-7A/2 Enclosure, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.6 in H x 2.86 in W x 0.23 in D Dimensions

Manufacturer PN: AYCL-253P-WH

UPC:  78427609010

Kendall Electric Inc PN: 3342019

Invoice Description:

AYCL-253P-WH LUTRON ARIADNI 3WAY/SINGLE POLE 600W (INC/HAL) 250W (CFL/LED) WHITE


SPEC SHEET

▸ See All in Dimmer Switches


How Can We Make This Page Better?

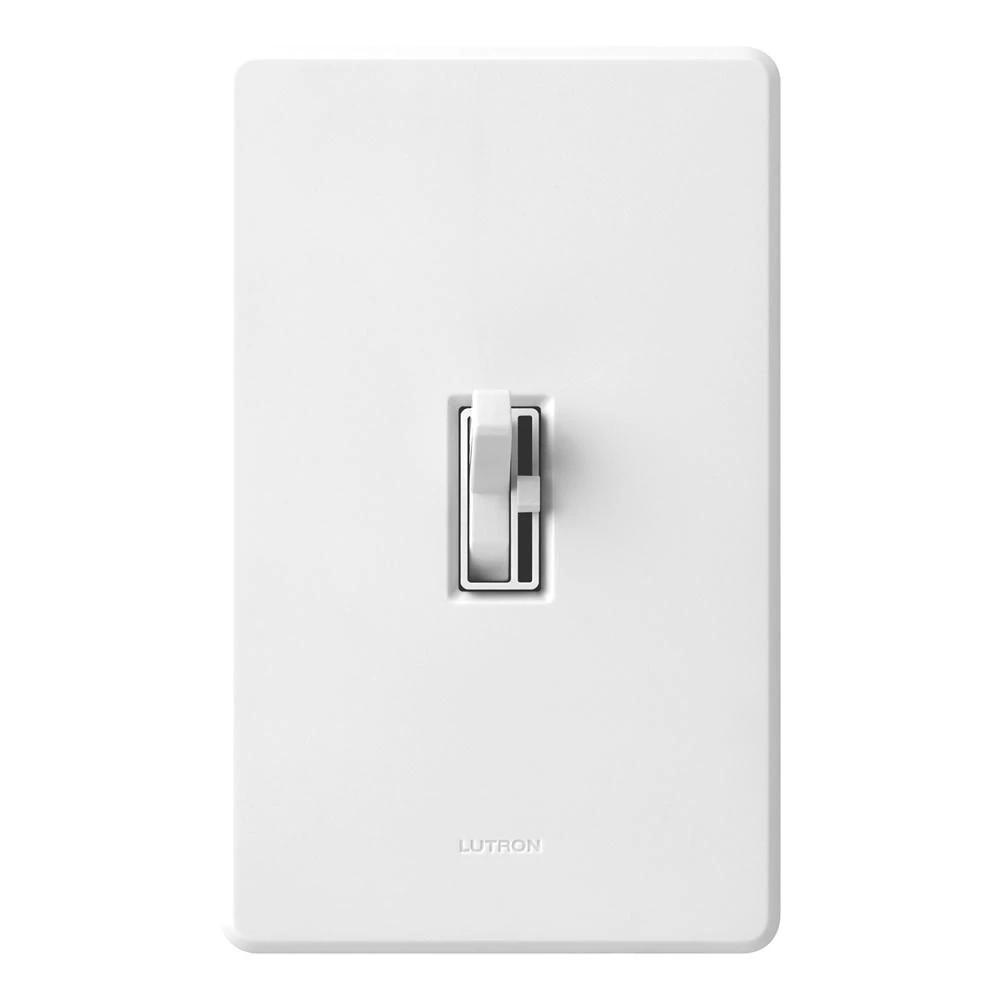

Lutron® AYCL-253P-WH Ariadni® C.L™ 3-Way Traditional Style Dimmer Switch, 120 VAC, 1 Poles, Slide-to-Bright/Dim Operation, White

Log In for Pricing and Availability




Description

These Lutron® dimmers are designed to replace or match your traditional style switches. Save energy and extend bulb life with the Ariadni® easy to use toggle switch and small slide dimmer. Designed with a shallow 1 in D back cover for easy installation, A
Lutron®, AYCL-253P-WH, Dimmer Switch, 3-Way Traditional Style, Series: Ariadni® C.L™, 120 VAC, 250/350/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Toggle Control, NEMA SSL-7A/2 Enclosure, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.6 in H x 2.86 in W x 0.23 in D Dimensions

Specifications

 Application Indoor, Commercial and Residential Applications
 Brand Name Lutron®
 Color White
 Control Toggle

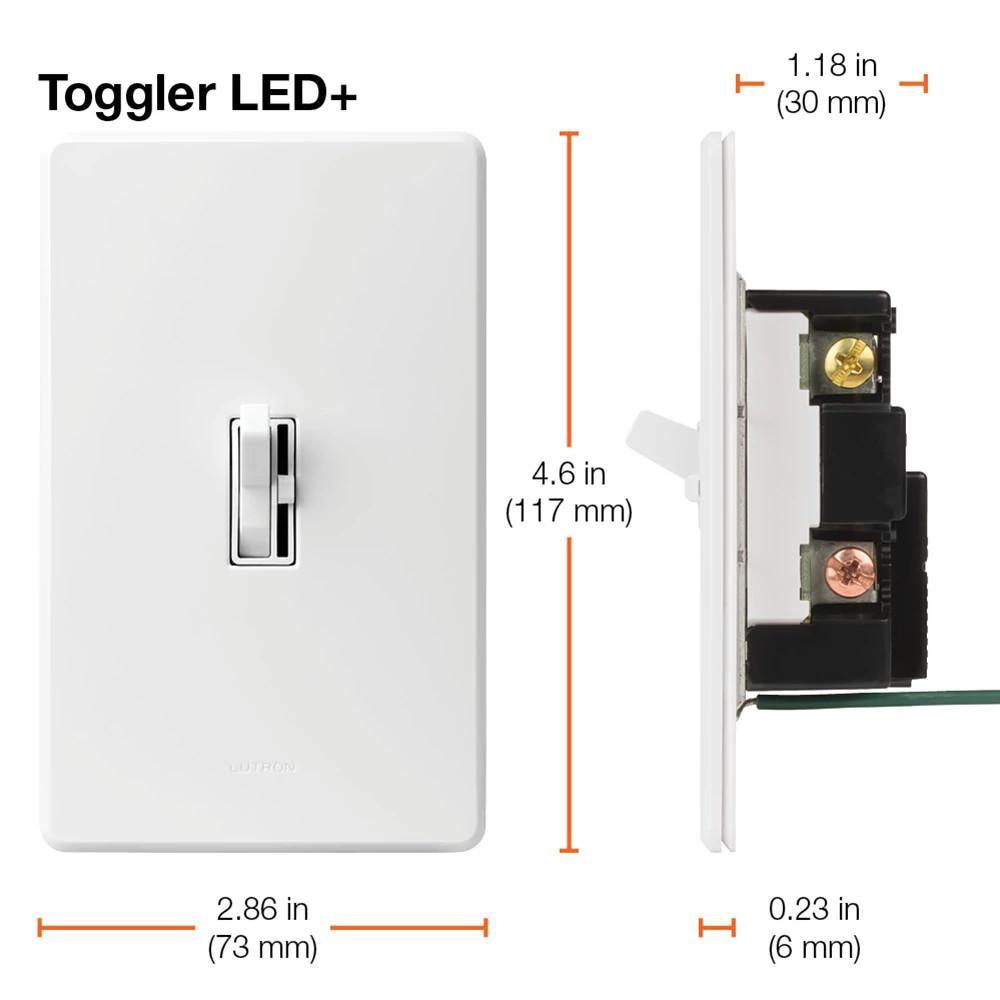

 Dimensions 4.6 in H x 2.86 in W x 0.23 in D
 Enclosure NEMA SSL-7A/2
 Frequency Rating 60 Hz
 Lamp Type CFL/Halogen/Incandescent/LED
 Manufacturer Part Number AYCL-253P-WH
 Material Plastic
 Mounting Type Wall
 Number of Poles 1
 Operation Mode Slide-to-Bright/Dim
 Power Rating 250/350/600 W
 Series Ariadni® C.L™
 Standards/Approvals CSA C22.2 File No. 184.1|NOM Certified|cULus|UL 1472 Listed|CSA C22.2 184.1 Certified|NEMA SSL-7A Type 2
 Start Type Preset
 Temperature Rating 0 to 40 deg C
 Terminal Type Push-In/Screw
 Type 3-Way Traditional Style
 Video Links
 Voltage Rating 120 VAC

Features

▪ 100% factory tested
▪ Shallow 1 in deep back cover for easy installation
▪ Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2
▪ HED™ technology advanced Lutron® dimming circuitry designed for compatibility with most high efficacy light bulbs
▪ Precise color matching
▪ Mechanical air-gap switch to disconnect load power
▪ Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming. For list of recommended bulbs view "Compatibility Chart
▪ To control dimmable compact fluorescent load (CFL) with integrated ballast, dimmable LED with integrated driver, halogen, incandescent
▪ C.L models for dimmable CFL and LED bulbs are available, these models have HED technology, which improves dimming performance of these bulbs

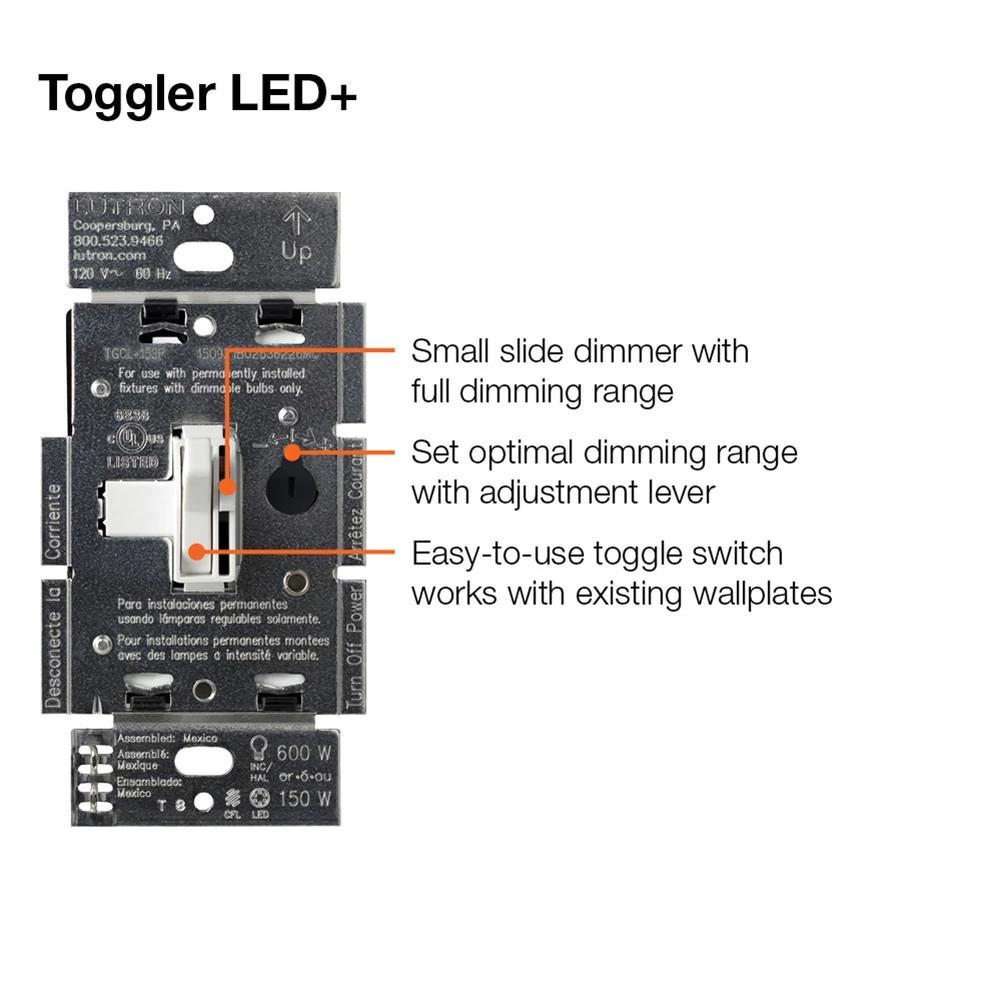

▪ Toggle switch turns lights on/off to favorite light level. Small slider dims and brightens the lights
▪ Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
▪ Power failure memory should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored
▪ Lutron controls are rated at 120 VAC, 60 Hz unless otherwise noted
▪ Provides over 250 lighting levels so you can create the perfect light for any activity
▪ Matching Fassada gloss wallplates available for 1-gang to 3-gang sizes
▪ On/off toggle switch with a captive linear slide dimmer for a traditional wallplate opening
▪ Superior RFI suppression
▪ Low end adjustment to accommodate a wide range of bulbs
