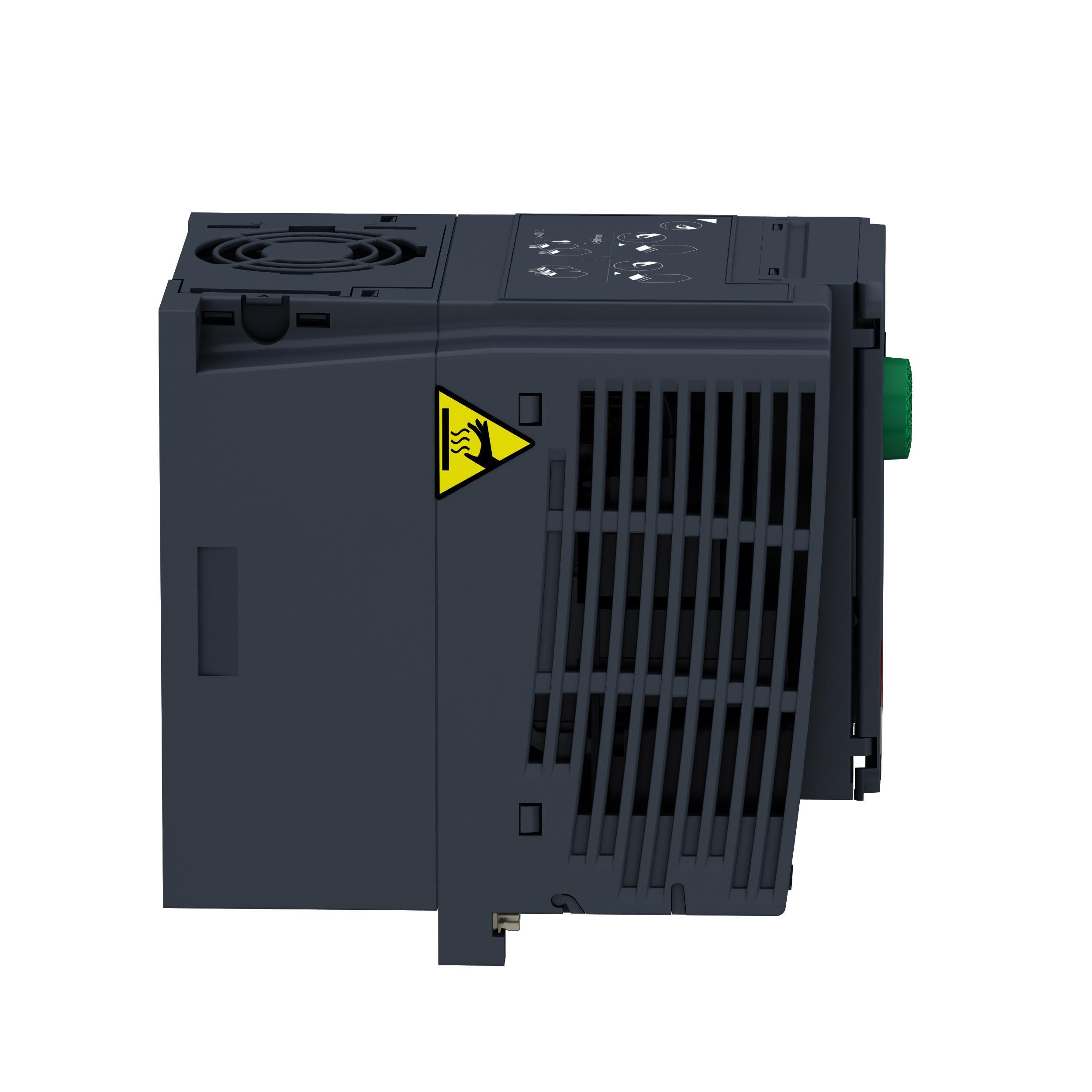

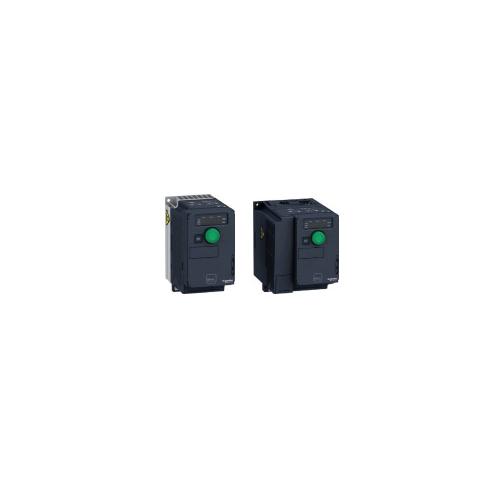

Description: Schneider Electric Square D™ AC Variable Speed Drive, 1-Phase Compact, Series: Altivar™ 320, 200/240 VAC, 11.5/13.6 A, 1-1/2 hp, 4.13 in Width, 6.22 in Depth, 5.59 in Height, IP20 Enclosure

Manufacturer PN: ATV320U11M2C

UPC:  60648096655

Kendall Electric Inc PN: 3963467

Invoice Description:

ATV320U11M2C SQD ATV320 COMPACT


SPEC SHEET

▸ See All in Variable Frequency Drives


How Can We Make This Page Better?

Schneider Electric Square D™ ATV320U11M2C Altivar™ 320 1-Phase Compact AC Variable Speed Drive With Class C2 Integrated EMC Filter, 200/240 VAC, 11.5/13.6 A, 1-1/2 hp, 4.13 in W x 6.22 in D

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This variable speed/frequency drive (VSD/VFD) is designed for simple industry and commercial machinery, such as packaging, material handling machinery, mechanical actuators and lifting equipment. Its compact form factor allows for reduction of machine footprint, through vertical stacking of drives in a machine frame. Its advanced connectivity, including CANopen and Modbus, allows deep integration into automation architectures without the use of additional network equipment.
Schneider Electric Square D™ AC Variable Speed Drive, 1-Phase Compact, Series: Altivar™ 320, 200/240 VAC, 11.5/13.6 A, 1-1/2 hp, 4.13 in Width, 6.22 in Depth, 5.59 in Height, IP20 Enclosure

Specifications

 Amperage Rating 11.5/13.6 A
 Application Material Handling, Packaging, Textiles, Hoisting, Mechanical Actuators, Material Working, Conveyors, Carton Packers, Gantry Cranes, Woodworking, Metal Processing, Fans, Complex Machine, Asynchronous and Synchronous Motors Applications
 Brand Name Square D
 Depth 6.22 in
 Enclosure IP20
 Height 5.59 in
 Horsepower 1/1/2002 hp
 Manufacturer Part Number ATV320U11M2C
 Series Altivar™ 320
 Standards/Approvals REACH Compliant|Green Premium|WEEE Compliant|EN/IEC 61800-3|EN/IEC 61800-3 Environment 2 Category C3|EN/IEC 61800-5-1|IEC 61000-3-12|IEC 60721-3|IEC 61508|IEC 13849-1|CE Certified|ATEX Compliant|UL 508|CSA 22.2|NOM Certified|EAC Certified|RCM Certified|KC Certified|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type 1-Phase Compact
 Video Links
 Voltage Rating 200/240 VAC
 Width 4.13 in

Features

▪ MachineStruxure integration in SoMachine
▪ Operation in velocity mode and torque control (with current limitation)
▪ Customizable and flexible application functions with ATV logic (up to 50 Function blocks)
▪ Embedded safety functions dedicated to targeted application segments
▪ 13.6 A at 200 VAC, 11 5 A at 240 VAC for heavy duty amperage rating
