Schneider Electric

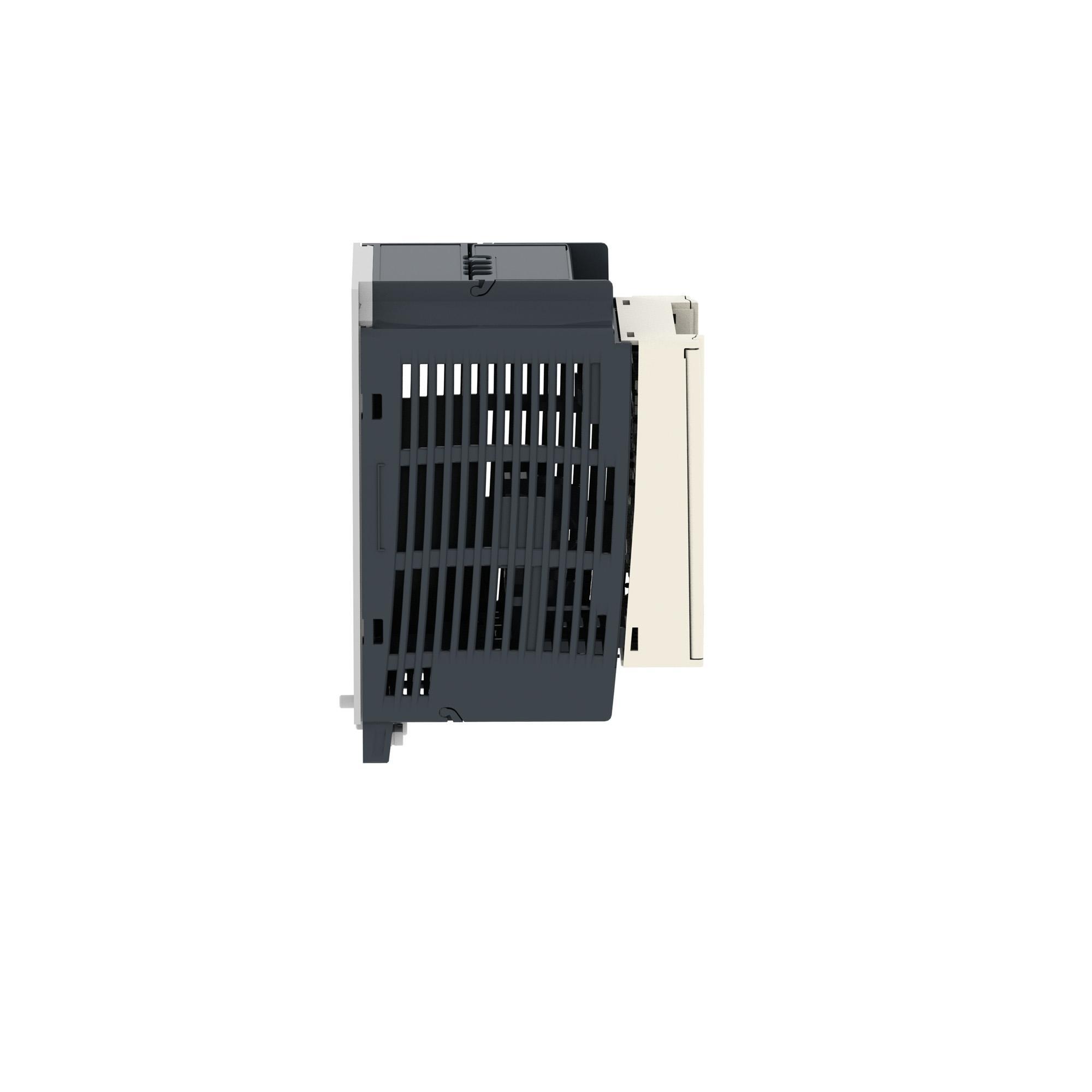

  • ATV12H037M2 SQD AC DRIVE 0.5 HP
  • ATV12H037M2 SQD AC DRIVE 0.5 HP
  • ATV12H037M2 SQD AC DRIVE 0.5 HP
  • ATV12H037M2 SQD AC DRIVE 0.5 HP

Description: Schneider Electric Altivar™ 12 Square D™ Variable Speed Drive, 1-Phase, 200 to 240/230 V AC, 4.9/5.9 A, 0.55 hp, 2.83 in Width, 4.77 in Depth, 5.62 in Height, IP20 Enclosure, Analog Display, DIN Rail Mounting

Manufacturer PN: ATV12H037M2

UPC:  60648007105

Kendall Electric Inc PN: 3962089

Invoice Description:

ATV12H037M2 SQD AC DRIVE 0.5 HP


SPEC SHEET

▸ See All in Variable Frequency Drives


How Can We Make This Page Better?

Schneider Electric Altivar™ 12 Square D™ ATV12H037M2 1-Phase Variable Speed Drive With Heat Sink, 200 to 240/230 V AC, 4.9/5.9 A, 0.55 hp, 2.83 in W x 4.77 in D

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Schneider Electric Altivar™ 12 Square D™ Variable Speed Drive, 1-Phase, 200 to 240/230 V AC, 4.9/5.9 A, 0.55 hp, 2.83 in Width, 4.77 in Depth, 5.62 in Height, IP20 Enclosure, Analog Display, DIN Rail Mounting

Specifications

 Amperage Rating 4.9/5.9 A
 Application Simple Machine and Commercial Applications
 Brand Name Square D
 Depth 4.77 in
 Enclosure IP20
 Height 5.62 in
 Horsepower 0.55 hp
 Manufacturer Part Number ATV12H037M2
 Mounting Type DIN Rail
 Standards/Approvals C-Tick Compliant|CE Certified|CSA Certified|DNV/GOST Approved|EN/IEC 60068-2-6/60068-2-27/61800-3 2, 4, 8, 12/61000-4-6/60068-2-6-1/60721-3-3/61000-4-5|NOM 117|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL Listed
 Type 1-Phase
 Video Links
 Voltage Rating 200 to 240/230 V AC
 Width 2.83 in

Features

▪ Highest quality
▪ Designed for easy fitting and wiring
▪ Save time on commissioning
▪ Modbus communication port protocol
▪ Electrical between power and control insulation
