Schneider Electric
  • ATS22D75S6U SQD SOFT START
  • ATS22D75S6U SQD SOFT START
  • ATS22D75S6U SQD SOFT START
  • ATS22D75S6U SQD SOFT START

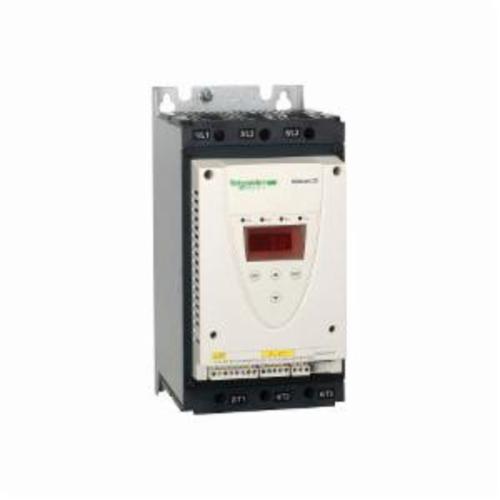

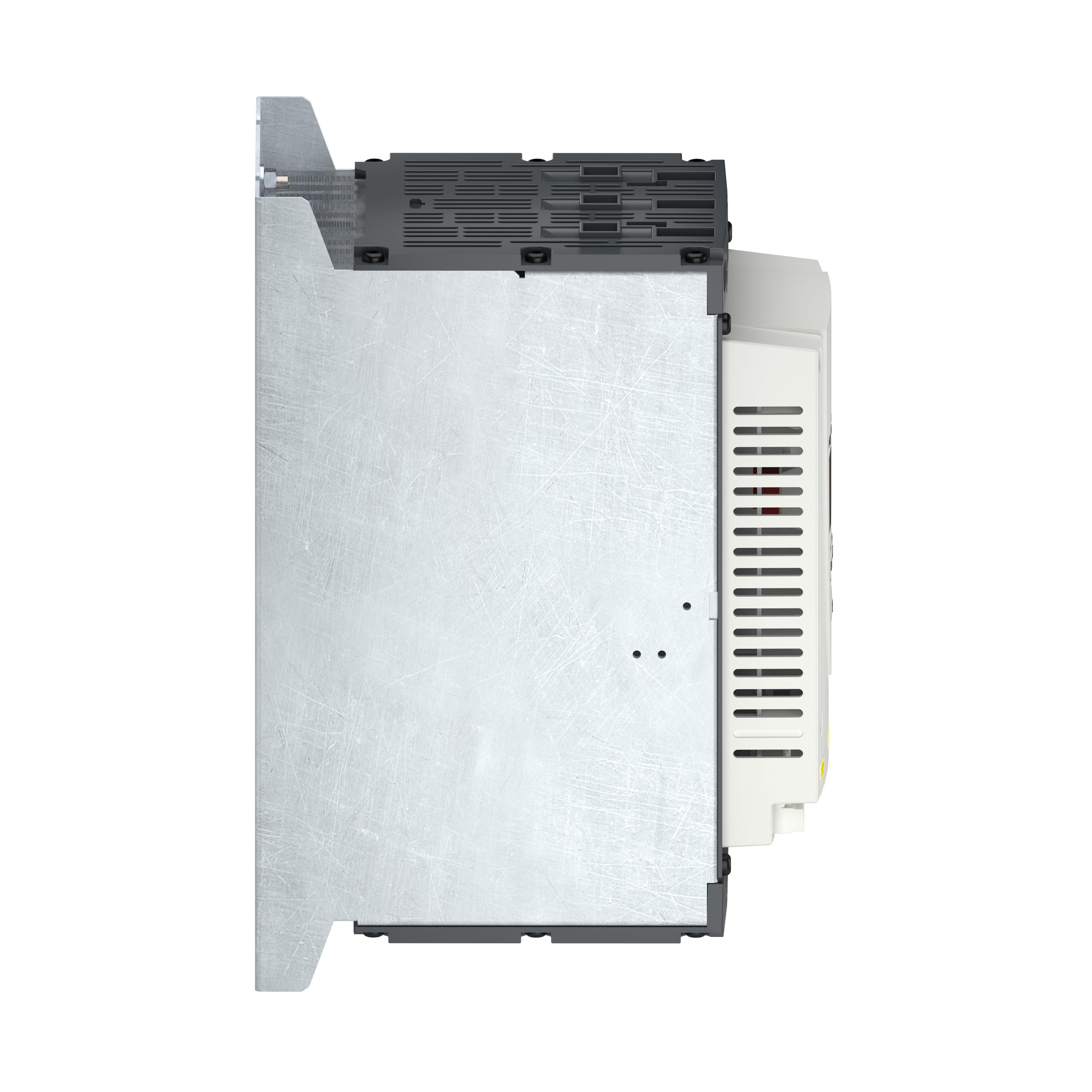

Description: Square D™ Altistart® 22 Soft Starter, Internal Bypass, Series: ATS22, 208/600 V AC, 75 A, 50/60 Hz Frequency, 63 W Wattage, 20 hp Motor, 110 VAC Coil, 3 Pole, 3 ph, Plug-In Connection, IP20 Enclosure, -10 to 40 deg C Operating, 145 mm W x 207 mm D x 295 mm H Dimensions

Manufacturer PN: ATS22D75S6U

UPC:  60648016741

Kendall Electric Inc PN: 3962251

Invoice Description:

ATS22D75S6U SQD SOFT START


SPEC SHEET

▸ See All in Open Soft Starters


How Can We Make This Page Better?

Square D™ Altistart® 22 ATS22D75S6U Internal Bypass Soft Starter With Heat Sink, 110 VAC V Coil, 3 Poles, IP20 Enclosure

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 75A, a rated power from 20HP to 60HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Square D™ Altistart® 22 Soft Starter, Internal Bypass, Series: ATS22, 208/600 V AC, 75 A, 50/60 Hz Frequency, 63 W Wattage, 20 hp Motor, 110 VAC Coil, 3 Pole, 3 ph, Plug-In Connection, IP20 Enclosure, -10 to 40 deg C Operating, 145 mm W x 207 mm D x 295 mm H Dimensions

Specifications

 Amperage Rating 75 A
 Application Asynchronous Motor, Centrifugal Pumps, Piston Pumps, Fans, Screw Compressors, Specialist Machinery, Material Handling Conveyors Applications
 Brand Name Square D
 Coil Voltage 110 V AC
 Connection Type Plug-In
 Dimensions 145 mm W x 207 mm D x 295 mm H
 Enclosure IP20
 Frequency Rating 50/60 Hz
 Includes 18 Months
 Manufacturer Part Number ATS22D75S6U
 Motor Power 20 hp
 Number of Poles 3
 Operating Temperature -10 to 40 deg C
 PART NUMBER KEYWORDS ATS22D75S6U ; 10896722 ; 785901692478 ; 78590169247 ; 03606480167416 ; 3606480167416
 Phase 3
 Series ATS22
 Standards/Approvals IP20
 Type Internal Bypass
 Voltage Rating 208/600 V AC
 Wattage 63 W

Features

▪ Provide smooth starting, avoiding mechanical stresses and extending their service life
▪ Reduce hearing discomfort for operators on the workfloor
▪ Slim form factor improves versatility
▪ Less cost to stock spares
▪ Overcome difficult or high-torque starts
▪ Precise control over start time gives capability to match your system's inertia and mechanical limits
