ABB

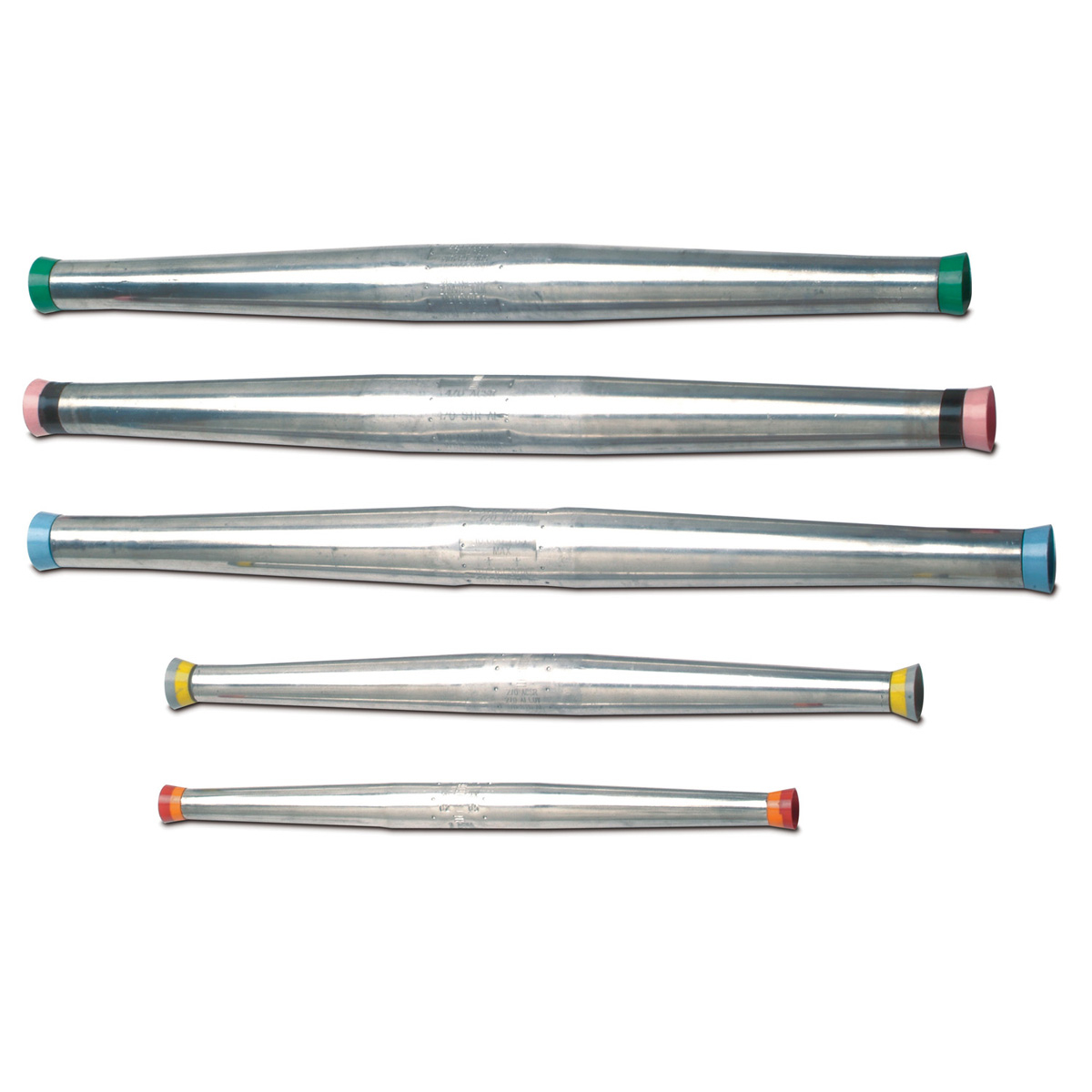

ATS2 T&B AUTOMATIC TENSION SPLICE 78378602056

Mouse over image to zoom, click to enlarge

  • ATS2 T&B AUTOMATIC TENSION SPLICE 78378602056
  • ATS2 T&B AUTOMATIC TENSION SPLICE 78378602056
  • ATS2 T&B AUTOMATIC TENSION SPLICE 78378602056

Description: Blackburn® Automatic Tension Splice, Autoset, Series: ATS, ASCR/AAAC/AAC Conductor, 2 AWG Conductor, 13-3/4 in Length, Red Color Code, 35 kV AC, Specifications: 2-Conductors, Tension Connection, Aluminum, Bare, Red

Manufacturer PN: ATS2

UPC:  78378602056

Kendall Electric Inc PN: 2474759

Invoice Description:

ATS2 T&B AUTOMATIC TENSION SPLICE 78378602056


SPEC SHEET

▸ See All in Overhead Automatic Splices & Deadends


How Can We Make This Page Better?

Blackburn® ATS2 Autoset Automatic Tension Splice, 2 AWG ASCR/AAAC/AAC Conductor, 13-3/4 in L, Aluminum

Log In for Pricing and Availability




Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Blackburn® Automatic Tension Splice, Autoset, Series: ATS, ASCR/AAAC/AAC Conductor, 2 AWG Conductor, 13-3/4 in Length, Red Color Code, 35 kV AC, Specifications: 2-Conductors, Tension Connection, Aluminum, Bare, Red

Specifications

 Application For making quick, dependable overhead tension splices and speed up installation time
 Brand Name Blackburn®
 Color Red
 Color Code Red
 Conductor Size 2 AWG
 Conductor Type ASCR/AAAC/AAC
 Finish Bare
 Length 13-3/4 in
 Manufacturer Part Number ATS2
 Material Aluminum
 PART NUMBER KEYWORDS ATS2 ; 7TAA267130R0003 ; 10902566 ; 783786020560 ; 78378602056 ; 00783786020560 ; 5414363148104
 Series ATS
 Specifications 2-Conductors, Tension Connection
 Type Autoset
 Voltage Rating 35 kV AC

Features

▪ Color coded, center stop
▪ Color coded, funnel shaped end pieces provide instant visual identification of maximum conductor and swiftly guide conductor into position for insertion
▪ Pilot caps envelop cable strands and guide the conductors into the center of the splice
▪ Die cast precision made jaws provide optimum contact area for a greater range of conductor sizes
▪ Compression spring positions the jaw for positive conductor acceptance
▪ Tubular center stop automatically determines proper insertion length of both conductors
▪ High-strength aluminum alloy tubing covers the connection for superior corrosion protection and long lasting durability
▪ Color coded tape enables identification of the minimum conductor of wide range connectors it further eliminates errors and speeds up installation
▪ All seasons environmental conditions
▪ 2 6/1, 7/1 ASCR, 2 AAAC, 2 AAC conductor range
