ABB

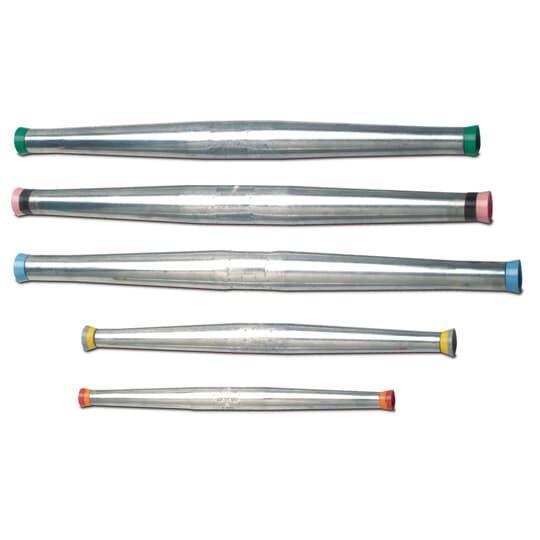

ATS1020 BLACKBURN 2/0 AUTOSET AUTOMATIC TENSION SPLICE

Mouse over image to zoom, click to enlarge

  • ATS1020 BLACKBURN 2/0 AUTOSET AUTOMATIC TENSION SPLICE
  • ATS1020 BLACKBURN 2/0 AUTOSET AUTOMATIC TENSION SPLICE
  • ATS1020 BLACKBURN 2/0 AUTOSET AUTOMATIC TENSION SPLICE
  • ATS1020 BLACKBURN 2/0 AUTOSET AUTOMATIC TENSION SPLICE

Description: Blackburn® Automatic Tension Splice, Autoset, Series: ATS, ASCR/AAAC/AAC Conductor, 1/0 AWG Conductor, 16-1/4 in Length, Gray/Yellow Color Code, 35 kV AC, Specifications: 2-Conductors, Tension Connection, Aluminum, Bare, Gray/Yellow

Manufacturer PN: ATS1020

UPC:  78378610381

Kendall Electric Inc PN: 2550181

Invoice Description:

ATS1020 BLACKBURN 2/0 AUTOSET AUTOMATIC TENSION SPLICE


SPEC SHEET

▸ See All in Overhead Automatic Splices & Deadends


How Can We Make This Page Better?

Blackburn® ATS1020 Autoset Automatic Tension Splice, 1/0 AWG ASCR/AAAC/AAC Conductor, 16-1/4 in L, Aluminum

Log In for Pricing and Availability




Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Blackburn® Automatic Tension Splice, Autoset, Series: ATS, ASCR/AAAC/AAC Conductor, 1/0 AWG Conductor, 16-1/4 in Length, Gray/Yellow Color Code, 35 kV AC, Specifications: 2-Conductors, Tension Connection, Aluminum, Bare, Gray/Yellow

Specifications

 Application For making quick, dependable overhead tension splices and speed up installation time
 Brand Name Blackburn
 Color Gray/Yellow
 Color Code Gray/Yellow
 Conductor Size 1/0 AWG
 Conductor Type ASCR/AAAC/AAC
 Finish Bare
 Length 16-1/4 in
 Manufacturer Part Number ATS1020
 Material Aluminum
 PART NUMBER KEYWORDS ATS1020 ; 7TAA267130R0002 ; 10902565 ; 783786103812 ; 78378610381 ; 00783786103812 ; 5414363148098
 Series ATS
 Specifications 2-Conductors, Tension Connection
 Type Autoset
 Voltage Rating 35 kV AC

Features

▪ Color coded, center stop
▪ Color coded, funnel shaped end pieces provide instant visual identification of maximum conductor and swiftly guide conductor into position for insertion
▪ Pilot caps envelop cable strands and guide the conductors into the center of the splice
▪ Die cast precision made jaws provide optimum contact area for a greater range of conductor sizes
▪ Compression spring positions the jaw for positive conductor acceptance
▪ Tubular center stop automatically determines proper insertion length of both conductors
▪ High-strength aluminum alloy tubing covers the connection for superior corrosion protection and long lasting durability
▪ Color coded tape enables identification of the minimum conductor of wide range connectors it further eliminates errors and speeds up installation
▪ All seasons environmental conditions
▪ 1/0, 6/1, 2/0 and 7/1 AWG ASCR, 1/0 to 2/0 AWG AAAC, 1/0 to 2/0 AWG AAC conductor range
