Panduit

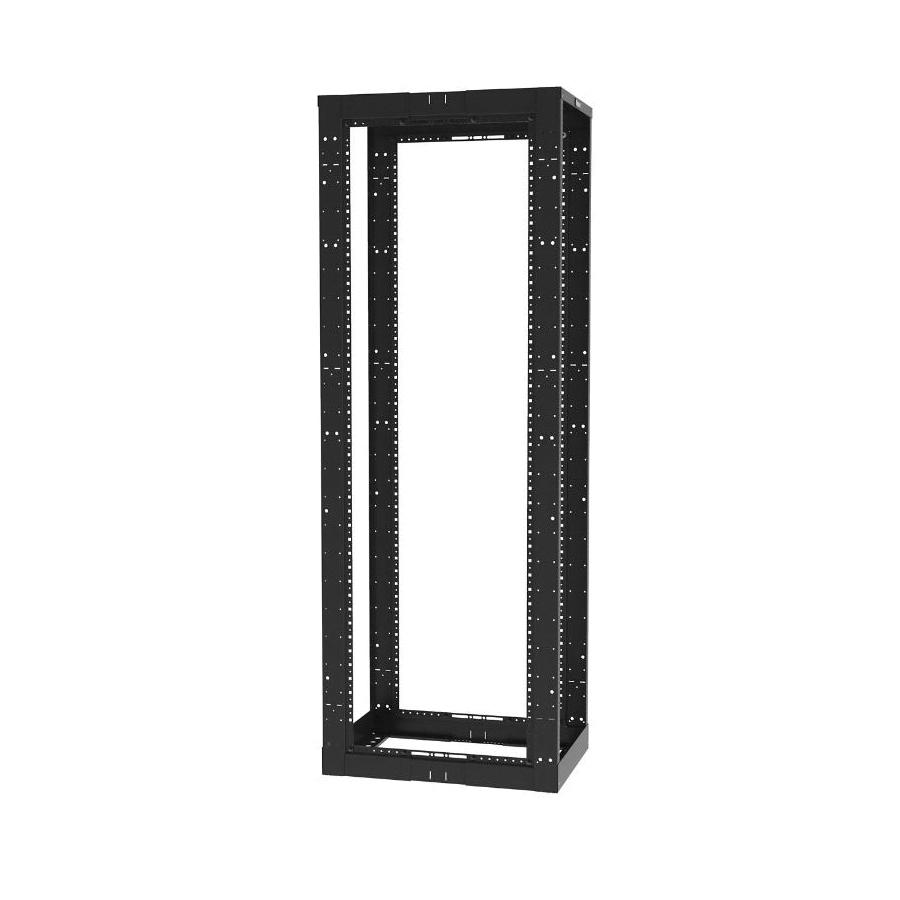

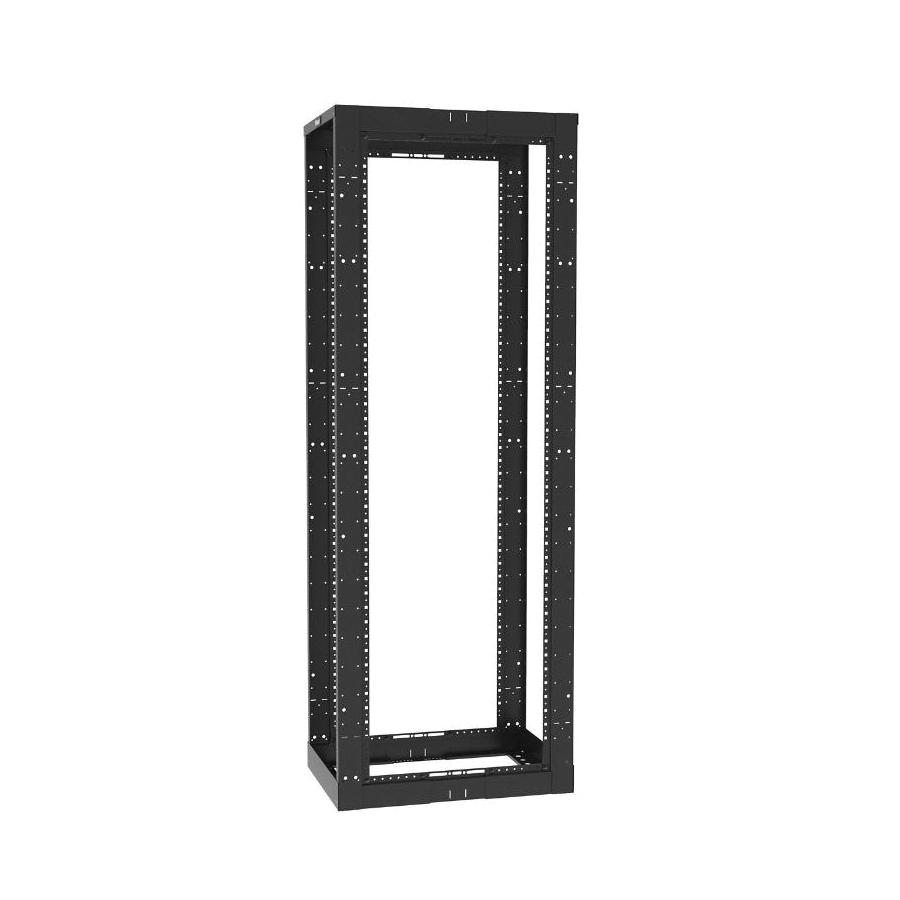

AR4P PAN ADJ DEPTH 4-POST RACK 45 RU #12-24 RA

Mouse over image to zoom, click to enlarge

  • AR4P PAN ADJ DEPTH 4-POST RACK 45 RU #12-24 RA
  • AR4P PAN ADJ DEPTH 4-POST RACK 45 RU #12-24 RA
  • AR4P PAN ADJ DEPTH 4-POST RACK 45 RU #12-24 RA

Description: Panduit® Post Rack, Bottom Up, 20.31 in Width, 23 to 42 in Depth, 84.13 in Height, 2000 lb, 45 Shelves, 1/2 in Shelf, Steel, Powder Coated

Manufacturer PN: AR4P

UPC:  61305679681

Kendall Electric Inc PN: 4348018

Invoice Description:

AR4P PAN ADJ DEPTH 4-POST RACK 45 RU #12-24 RA


SPEC SHEET

▸ See All in Rack/Cabinet Miscellaneous Accessories


How Can We Make This Page Better?

Panduit® AR4P Bottom Up Post Rack, 84.13 in H x 20.31 in W x 23 to 42 in D, 2000 lb Load, 45 Shelves

Log In for Pricing and Availability




Description

The adjustable depth four Post Rack supports equipment mounting depths from 23 to 42 in 0.5 in increments to provide greater flexibility with a single part number. The front and rear structural posts of the rack are capable of mounting all Panduit® vertical cable managers and various accessories such as power distribution unit brackets, waterfalls and vertical tie-off panels. The rack has #12-24 threaded rails and is 45RU in height. The rack is black in color.
Panduit® Post Rack, Bottom Up, 20.31 in Width, 23 to 42 in Depth, 84.13 in Height, 2000 lb, 45 Shelves, 1/2 in Shelf, Steel, Powder Coated

Specifications

 Application For designed to support network equipment found in data center, telecommunication room and lab environments
 Brand Name Panduit®
 Depth 23 to 42 in
 Finish Powder Coated
 Height 84.13 in
 Includes Welded Rack Frames, Adjustable Depth Mount Brackets and Hardware Kit
 Load Capacity 2000 lb
 Manufacturer Part Number AR4P
 Material Steel
 Number of Shelves 45
 Shelf Size 1/2 in
 Standards/Approvals EIA/ECA-310-E|RoHS Compliant|UL 2416
 Type Bottom Up
 Video Links
 Width 20.31 in

Features

▪ All Panduit® vertical and horizontal cable managers, standard 19 and 34, mount accessories
▪ Self-squaring - front to back braces are installed in two axes, helping to maintain squareness of the rack during assembly
▪ Inward facing feet - reduces overall front to back footprint, aligning better to floor tiles
▪ Numerical rack unit identification allows for quick location of rack spaces speeding installation of rack mount items, racks are numbered from bottom up
▪ Fully bonded structure paint piercing hardware electrically bonds the rack when assembled, eliminating the need for additional bonding components
▪ PEM stud and carriage bolt construction eliminates the need for a second wrench, increasing speed and ease of assembly
