Eaton

Mouse over image to zoom, click to enlarge

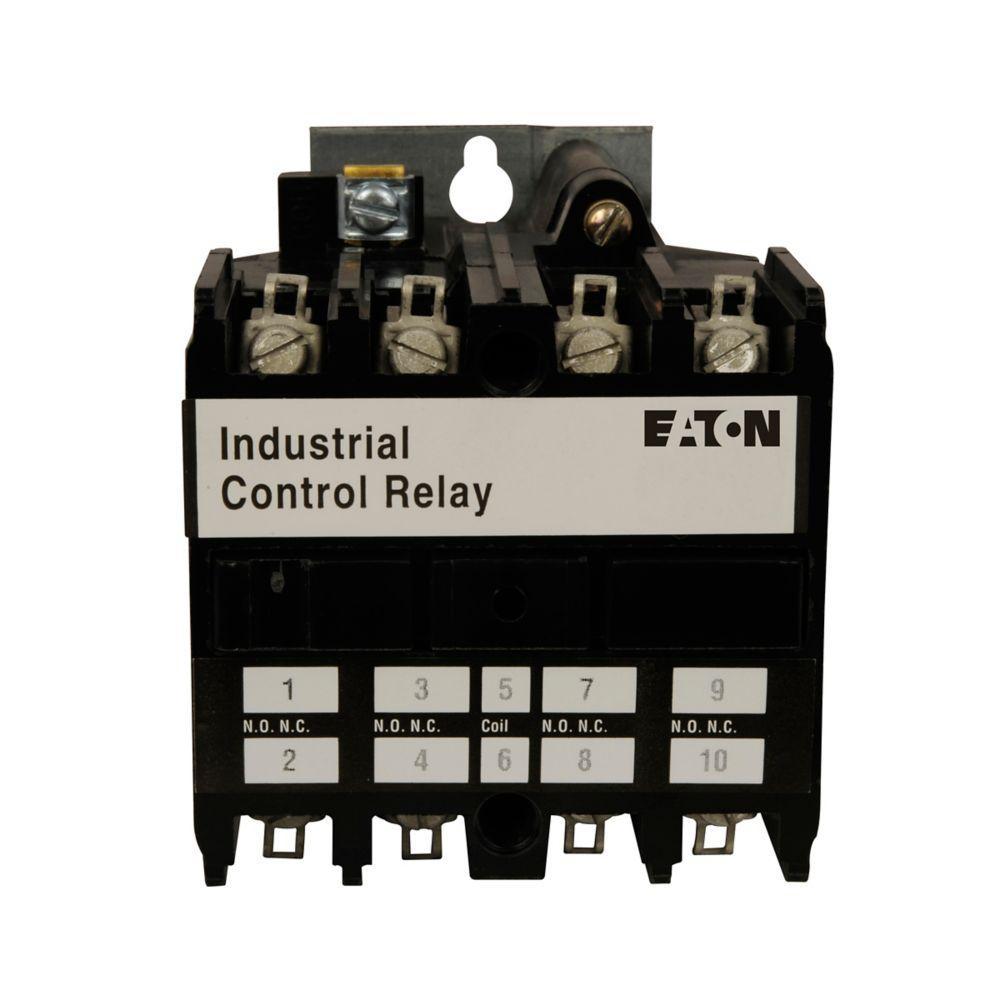

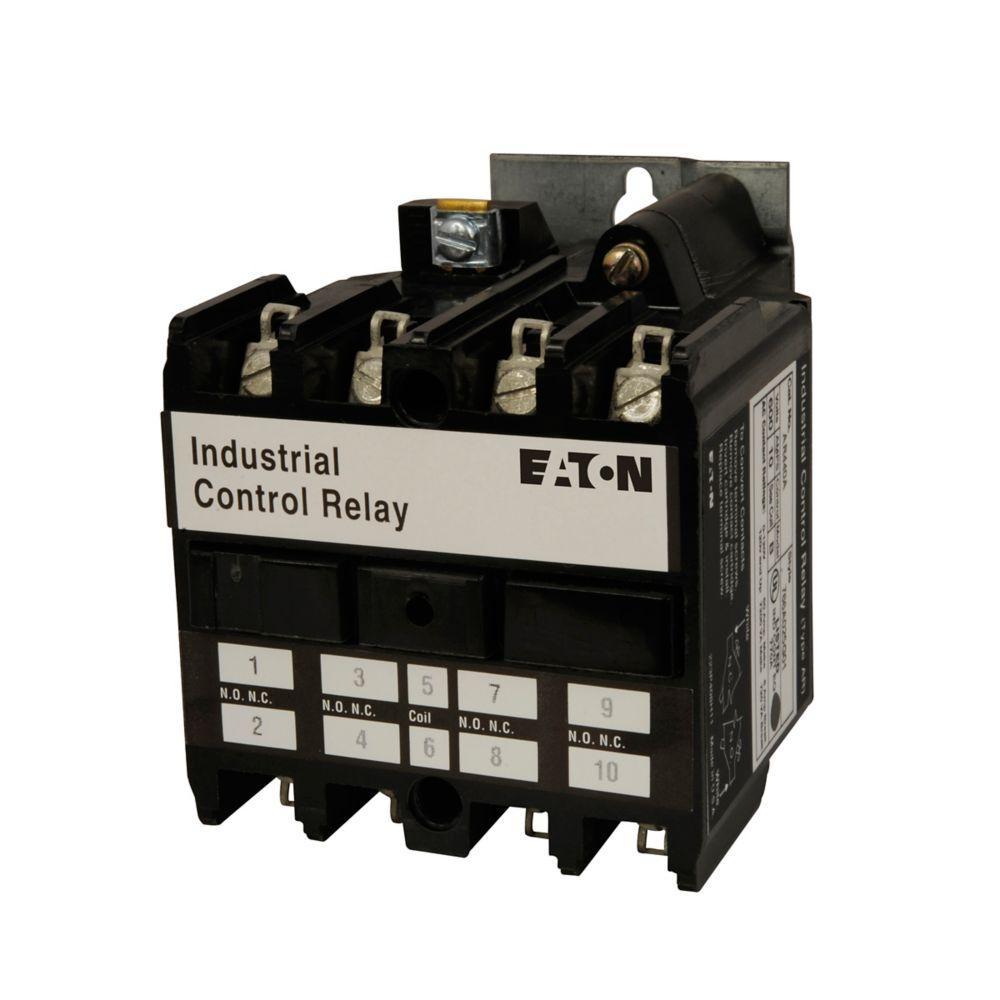

Description: EATON AC Control Relay, Convertible Contact Industrial, Series: AR Series, 50/60 Hz Frequency, 110/120 V AC Coil, 4NO 4 Form A Contact Form, 4 Pole, Panel Mounting, Clamp Terminal, NEMA 1 Enclosure, 2.88 in L x 3.44 in W x 3.56 in H Dimensions

Manufacturer PN: AR440A

UPC: 78667825464

Kendall Electric Inc PN: 2574924

Invoice Description:

AR440A CH 4P RELAY 4NO 120V

SPEC SHEET

How Can We Make This Page Better?

EATON AR440A Convertible Contact Industrial AC Control Relay, 4NO 4 Form A Contact, 110/120 V AC V Coil

Note: Lead times are estimates only

Description Specifications Features Resources

Description

NEMA?machine tool relays include the Freedom 600 V?multi-pole (D15),?fixed?contact?industrial?control (BF, BFD),? convertible?contact?industrial?control (AR, ARD) and?type M,?multi-pole with convertible contacts (D26). These relays can be ordered as complete devices in any pole combination up to a maximum of 12NO or 8NC and 4NO poles. They are also designed for use on machines, process lines, conveyors and similar automatic and semiautomatic equipment.

EATON AC Control Relay, Convertible Contact Industrial, Series: AR Series, 50/60 Hz Frequency, 110/120 V AC Coil, 4NO 4 Form A Contact Form, 4 Pole, Panel Mounting, Clamp Terminal, NEMA 1 Enclosure, 2.88 in L x 3.44 in W x 3.56 in H Dimensions

Specifications

Application	Electrical Assemblies, Panels and EOEMs Applications
Brand Name	EATON
Coil Voltage	110/120 V AC
Contact Form	4NO 4 Form A
Dimensions	2.88 in L x 3.44 in W x 3.56 in H
Enclosure	NEMA 1
Frequency Rating	50/60 Hz
Manufacturer Part Number	AR440A
Mounting Type	Panel
Number of Poles	4
PART NUMBER KEYWORDS	AR440A ; 7445710 ; 786678254647 ; 78667825464 ; 00786678254647
Series	AR Series
Standards/Approvals	UL Listed file E19223,CSA Certified
Terminal Type	Clamp
Type	Convertible Contact Industrial

Features

▪ Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time

▪ Terminals are shrouded or finger proofed to reduce possibility of electrical shock

▪ Wide spacing of contacts simplifies installation, contact testing and maintenance

▪ Contacts are electrically and mechanically isolated from each other for added safety

▪ Surge suppressors mount in contact cavity, limiting high transient voltages resulting from de-energizing relay coil for protection of sensitive instruments and solid state devices

▪ 0 blank number of cavities
