Prysmian

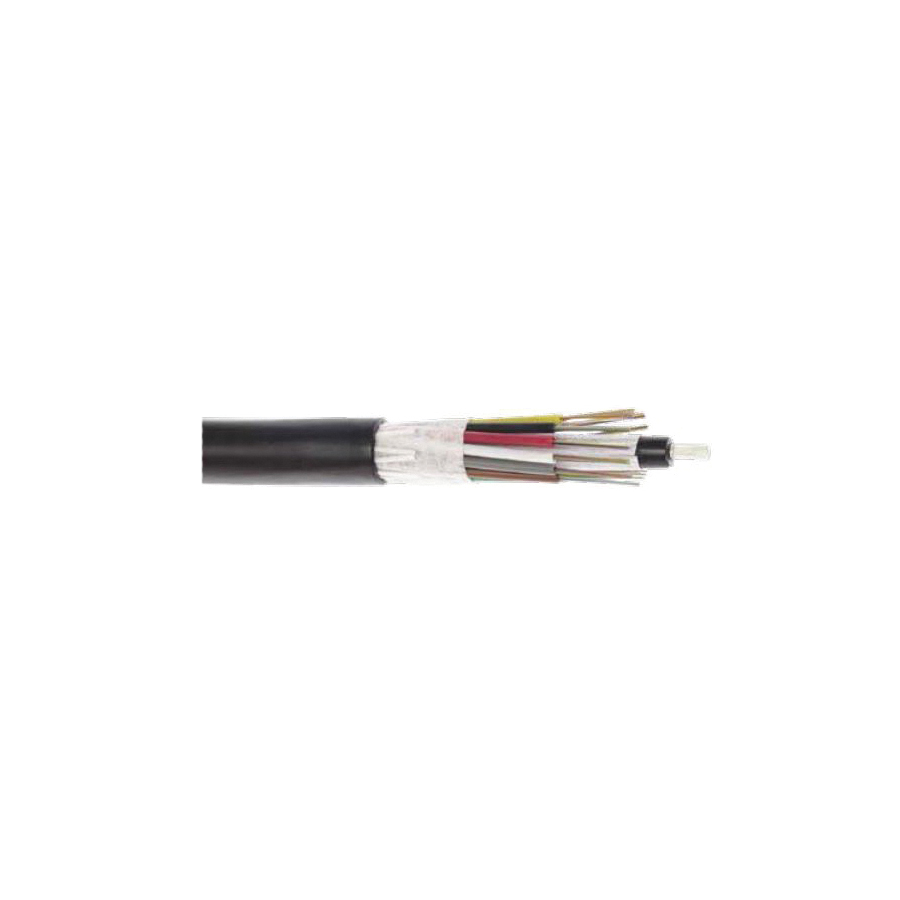

AQ0484M1A-DWB GEN 48F SM LT OUTDOOR DUCT

Mouse over image to zoom, click to enlarge

  • AQ0484M1A-DWB GEN 48F SM LT OUTDOOR DUCT
  • AQ0484M1A-DWB GEN 48F SM LT OUTDOOR DUCT
  • AQ0484M1A-DWB GEN 48F SM LT OUTDOOR DUCT

Description: General Cable® NextGen® Fiber Optic Cable, 1-Jacket Single-Mode, Reel Packaging, 48 Fibers, 0.4 to 0.35 dB/km Attenuation, Acrylate Insulation, Polyethylene Jacket, Black Jacket, -40 to 158 deg F

Manufacturer PN: AQ0484M1A-DWB

UPC:  66300820508

Kendall Electric Inc PN: 2372835

Invoice Description:

AQ0484M1A-DWB GEN 48F SM LT OUTDOOR DUCT


SPEC SHEET

▸ See All in Fiber Optic Outdoor Cables


How Can We Make This Page Better?

General Cable® NextGen® AQ0484M1A-DWB 1-Jacket Single-Mode Fiber Optic Cable, Reel Packaging, 48 Fiber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

NextGen® brand fiber optic cable is right for any outside plant application. Outside plant cables with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles. They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements. General Cable® manufactures a wide range of cables from 2-312 fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in NextGen® fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection. Our line of outside plant products conforms to TIA/EIA, ICEA, Telcordia and RUS standard.
General Cable® NextGen® Fiber Optic Cable, 1-Jacket Single-Mode, Reel Packaging, 48 Fibers, 0.4 to 0.35 dB/km Attenuation, Acrylate Insulation, Polyethylene Jacket, Black Jacket, -40 to 158 deg F

Specifications

 Application For interbuilding voice or data communication Back-Bones, installed in ducts, underground conduits, aerial/lashed and outside plant cable
 Attenuation 0.4 to 0.35 dB/km
 Brand Name General Cable
 Fiber Count 48
 Insulation Material Acrylate
 Jacket Color Black
 Jacket Material Polyethylene
 Manufacturer Part Number AQ0484M1A-DWB
 Standards/Approvals RoHS 2011/65/EU|RoHS 2002/95/EC|EIA/TIA-455 FOTPs|ICEA S-87-640|Rural Utilities Service (RUS) 7 CFR 1755.900 (REA PE-90)|GR-20|ANSI/TIA/EIA 568B.3
 Temperature Rating -40 to 158 deg F
 Type 1-Jacket Single-Mode

Features

▪ Standard loose tube single mode, SMF-28® ultra fiber
▪ Loose tube gel-filled construction for superior fiber protection
▪ Epoxy/glass rod central strength member
▪ UV and moisture resistant polyethylene (PE)
▪ 20 X OD installation, 10 X OD in-service maximum bend radius
▪ 125 lb/in short, 63 lb/in long maximum crush resistance
▪ 600 lb installation, 180 lb in-service maximum tensile load
▪ 4-loose tubes
▪ Dry water block cable core for ease of handling
▪ Full spectrum, low water peak single mode, ITU-T recommendation G.657.A1, IEC 60793-2-50 for B1.3 and B6_a1 class fibers, TIA/EIA-492CAAB and Telcordia GR-20-CORE, Issue 3
