Prysmian

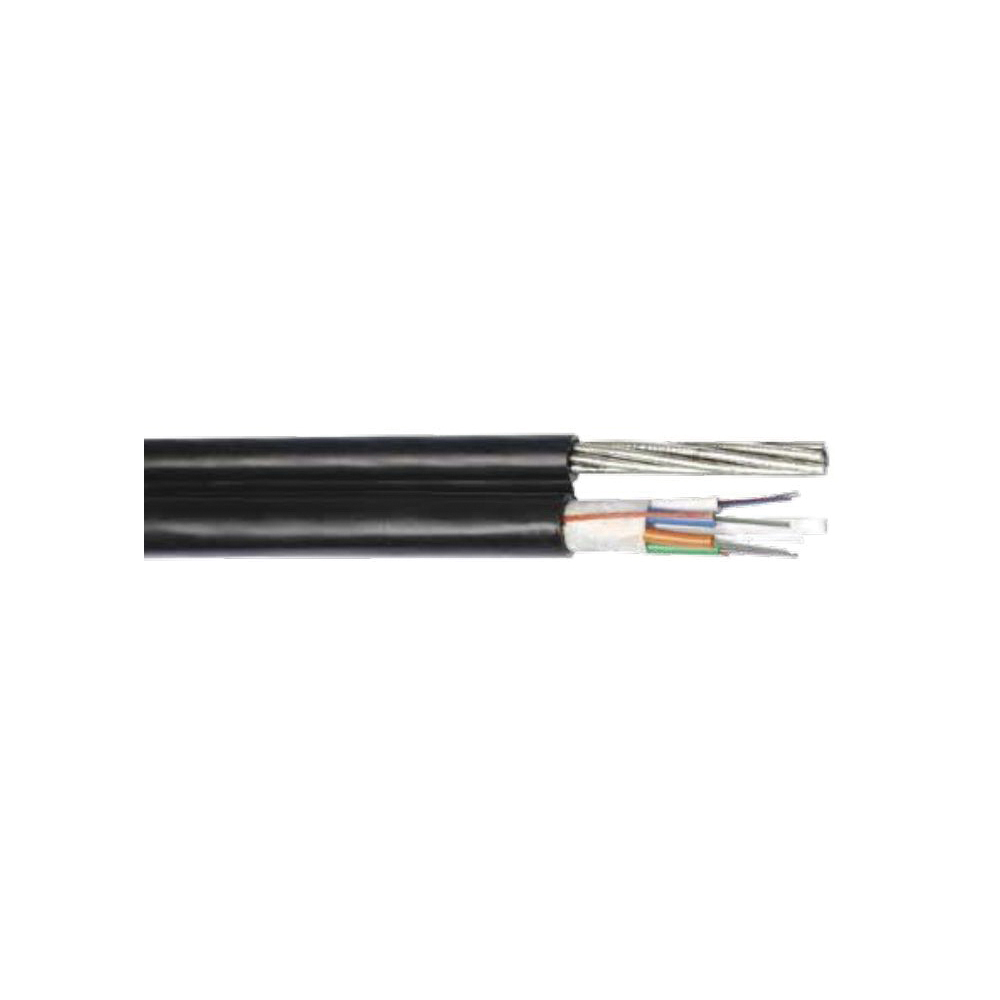

AQ0124M1Y-DWB GEN-DATA 12F SM LT AERIAL/NON-ARMORED

Mouse over image to zoom, click to enlarge

  • AQ0124M1Y-DWB GEN-DATA 12F SM LT AERIAL/NON-ARMORED
  • AQ0124M1Y-DWB GEN-DATA 12F SM LT AERIAL/NON-ARMORED
  • AQ0124M1Y-DWB GEN-DATA 12F SM LT AERIAL/NON-ARMORED

Description: General Cable® NextGen® Fiber Optic Cable, 1-Jacket Single-Mode Non-Armored, Reel Packaging, 12 Fibers, 0.4 to 0.35 dB/km Attenuation, Polyethylene Jacket, Black Jacket, -40 to 158 deg F

Manufacturer PN: AQ0124M1Y-DWB

UPC:  66300820836

Kendall Electric Inc PN: 4382161

Invoice Description:

AQ0124M1Y-DWB GEN-DATA 12F SM LT AERIAL/NON-ARMORED


SPEC SHEET

▸ See All in Fiber Optic Outdoor Cables


How Can We Make This Page Better?

General Cable® NextGen® AQ0124M1Y-DWB 1-Jacket Single-Mode Non-Armored Fiber Optic Cable, Reel Packaging, 12 Fiber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

NextGen® brand fiber optic cable is right for any outside plant application. Outside plant cables with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles. They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements. General Cable® manufactures a wide range of cables from 2-312 fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in NextGen® fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection. Our line of outside plant products conforms to TIA/EIA, ICEA, Telcordia and RUS standard.
General Cable® NextGen® Fiber Optic Cable, 1-Jacket Single-Mode Non-Armored, Reel Packaging, 12 Fibers, 0.4 to 0.35 dB/km Attenuation, Polyethylene Jacket, Black Jacket, -40 to 158 deg F

Specifications

 Application For interbuilding voice or data communication Back-Bones, installed aerially and outside plant cable applications
 Attenuation 0.4 to 0.35 dB/km
 Brand Name General Cable
 Fiber Count 12
 Jacket Color Black
 Jacket Material Polyethylene
 Manufacturer Part Number AQ0124M1Y-DWB
 Standards/Approvals RoHS 2011/65/EU|EIA/TIA-455 FOTPs|ICEA S-87-640|Rural Utilities Service (RUS) 7 CFR 1755.900 (REA PE-90)|GR-20|CSA Certified
 Temperature Rating -40 to 158 deg F
 Type 1-Jacket Single-Mode Non-Armored

Features

▪ Standard loose tube SM, SMF-28® ultra fiber
▪ Loose tube gel-filled construction for superior fiber protection
▪ Epoxy/glass rod central strength member

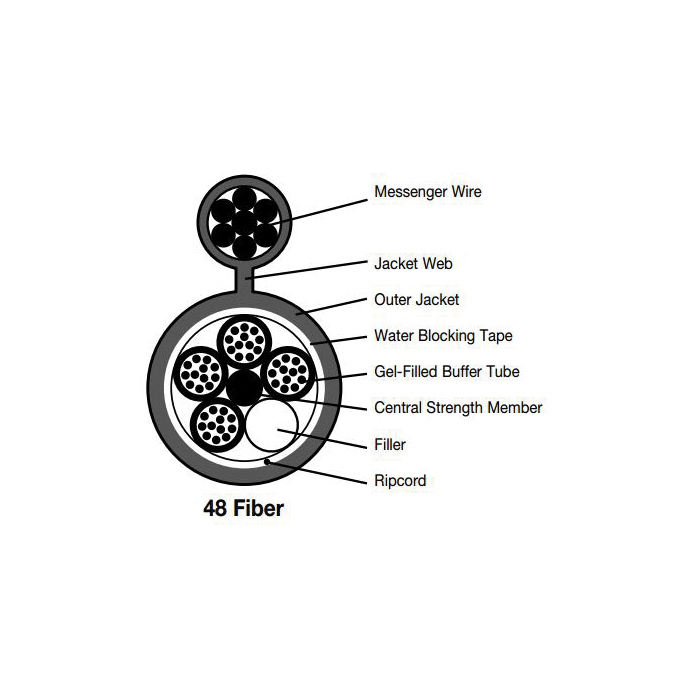

▪ Self-supporting figure-8 design
▪ UV and moisture resistant design, 1/4 in stranded EHS galvanized steel, MRCL with messenger 14923 N/3350 kF
▪ 20 X OD installation, 10 X OD in-service maximum bend radius
▪ 125 lb/in short, 63 lb/in long maximum crush resistance
▪ 600 lb installation, 180 lb in-service maximum tensile load
▪ 1-loose tube
▪ Full spectrum, low water peak single mode, ITU-T recommendation G.657.A1, IEC 60793-2-50 for B1.3 and B6_a1 class fibers, TIA/EIA-492CAAB and Telcordia GR-20-CORE, Issue 3
