Eaton

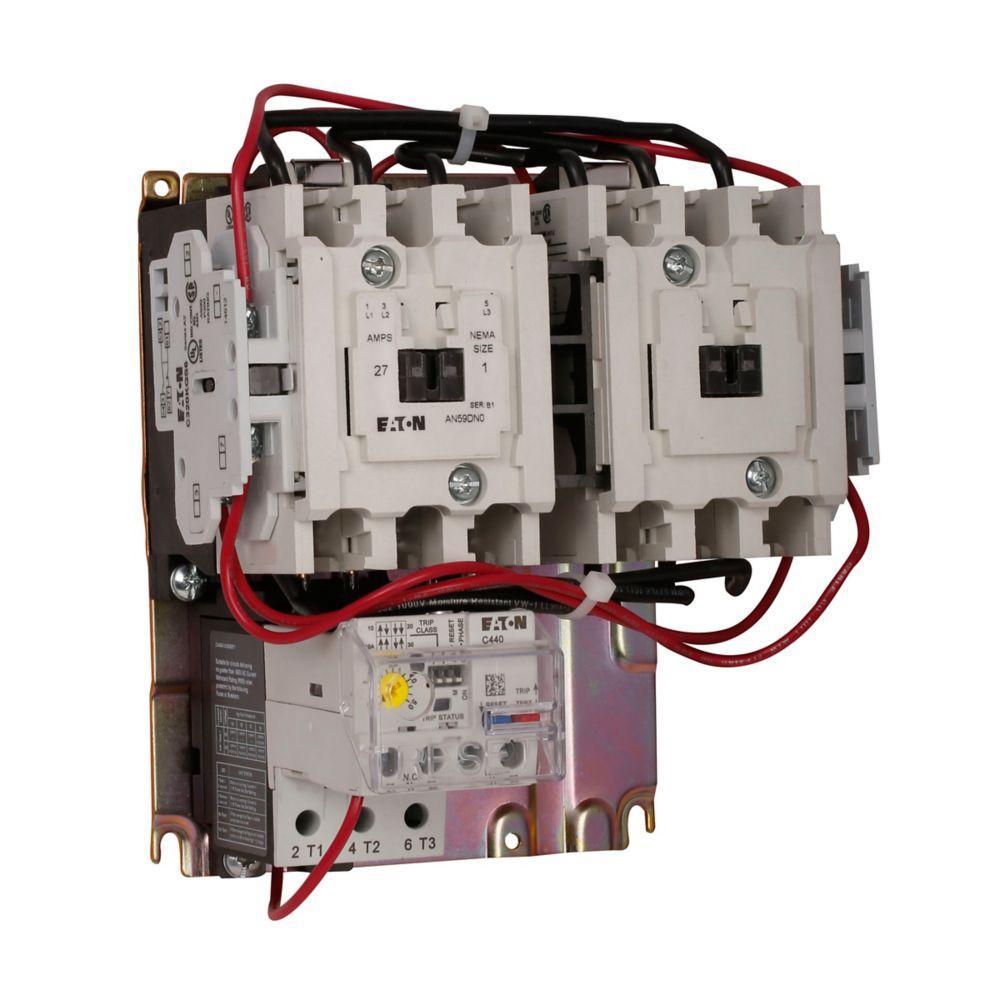

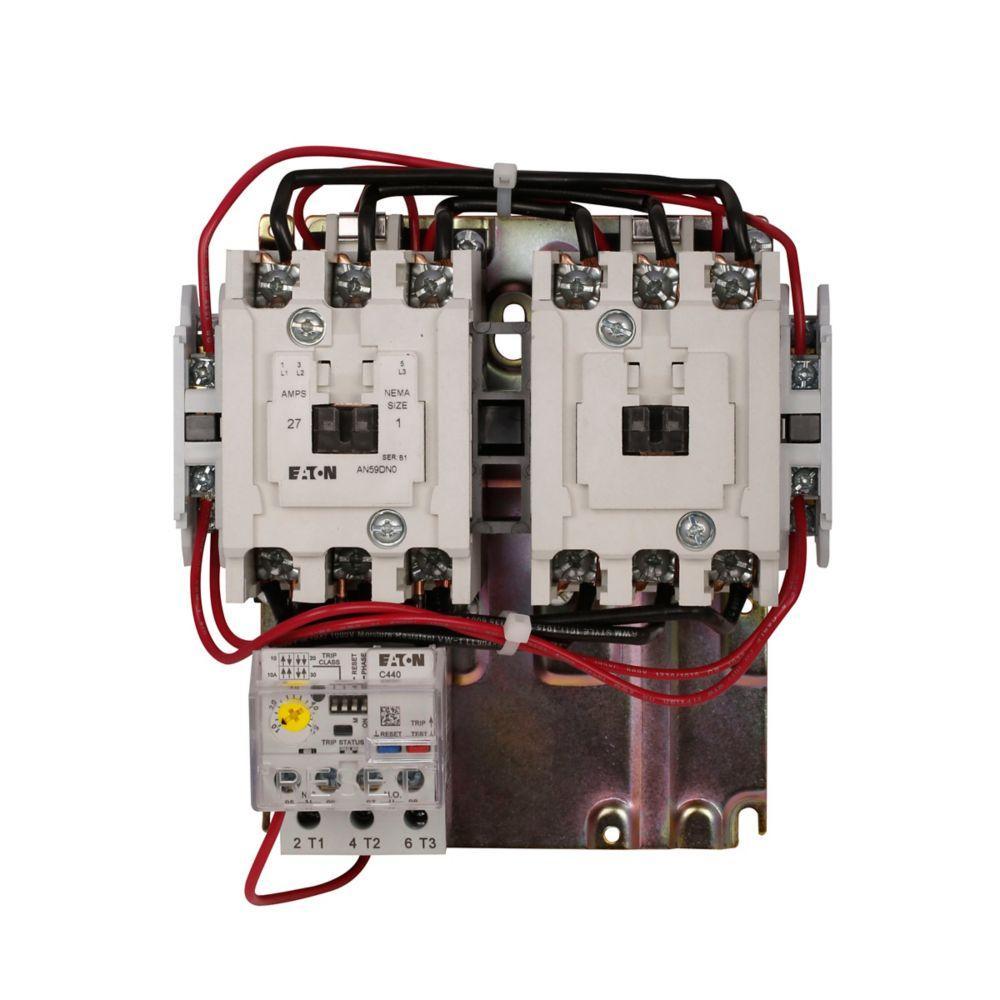

AN59GN0A5G045 CH C440 (9-45A) SZ 2 FVR STARTER 120VAC GND FLT

Mouse over image to zoom, click to enlarge

  • AN59GN0A5G045 CH C440 (9-45A) SZ 2 FVR STARTER 120VAC GND FLT
  • AN59GN0A5G045 CH C440 (9-45A) SZ 2 FVR STARTER 120VAC GND FLT
  • AN59GN0A5G045 CH C440 (9-45A) SZ 2 FVR STARTER 120VAC GND FLT

Description: EATON NEMA Starter, Full Voltage Magnetic Reversing, Series: Type AN59 Freedom, 600 V AC, 9 A, 50/60 Hz, 2 hp Motor, 110/120 VAC Coil, 3 Pole, Setting: 9 to 45 A, Automatic/Manual Reset, 1/3 ph, Line/Load Lug, C440 Standard Electronic with Ground Fault Feature Overload Relay, 1NO Auxiliary, Open, 4.98 x 6.7 x 7.1 in

Manufacturer PN: AN59GN0A5G045

UPC:  78668541507

Kendall Electric Inc PN: 4554000

Invoice Description:

AN59GN0A5G045 CH C440 (9-45A) SZ 2 FVR STARTER 120VAC GND FLT


SPEC SHEET

▸ See All in NEMA Starters


How Can We Make This Page Better?

EATON AN59GN0A5G045 Type AN59 Freedom Full Voltage Magnetic Reversing NEMA Starter, 110/120 VAC V Coil, 3 Poles, Open Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON NEMA Starter, Full Voltage Magnetic Reversing, Series: Type AN59 Freedom, 600 V AC, 9 A, 50/60 Hz, 2 hp Motor, 110/120 VAC Coil, 3 Pole, Setting: 9 to 45 A, Automatic/Manual Reset, 1/3 ph, Line/Load Lug, C440 Standard Electronic with Ground Fault Feature Overload Relay, 1NO Auxiliary, Open, 4.98 x 6.7 x 7.1 in

Specifications

 Amperage Rating 9 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Auxiliary Contact Rating 1NO
 Brand Name EATON
 Coil Voltage 110/120 V AC
 Connection Type Line/Load Lug
 Dimensions 4.98 x 6.7 x 7.1 in
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number AN59GN0A5G045
 Motor Power 2 hp
 Number of Poles 3
 Overload Relay C440 Standard Electronic with Ground Fault Feature
 PART NUMBER KEYWORDS AN59GN0A5G045 ; 11051262 ; 786685415079 ; 78668541507 ; 00786685415079
 Phase 1/3
 Reset Type Automatic/Manual
 Series Type AN59 Freedom
 Setting 9 to 45 A
 Standards/Approvals NEMA,CSA,CE,UL,RoHS Compliant
 Type Full Voltage Magnetic Reversing
 Voltage Rating 600 V AC

Features

▪ Reliable, accurate, electronic motor protection
▪ Easy to select, install and maintain
▪ Compact size
▪ Flexible, intelligent design
▪ 1/3 hp at 115 VAC 1 ph, 1 hp at 230 VAC 1 ph, 1-1/2 hp at 208/240 VAC 3 ph, 2 hp at 480/600 VAC 3 ph horsepower rating
