Eaton

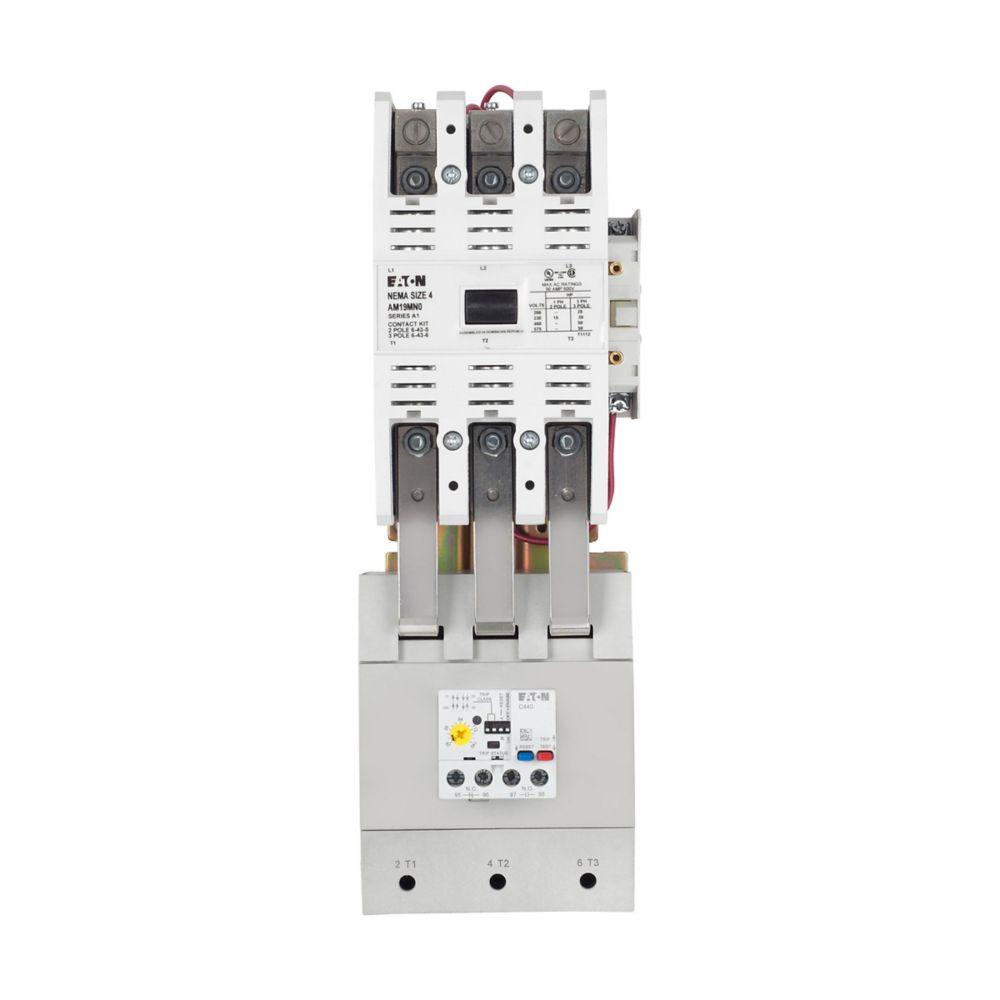

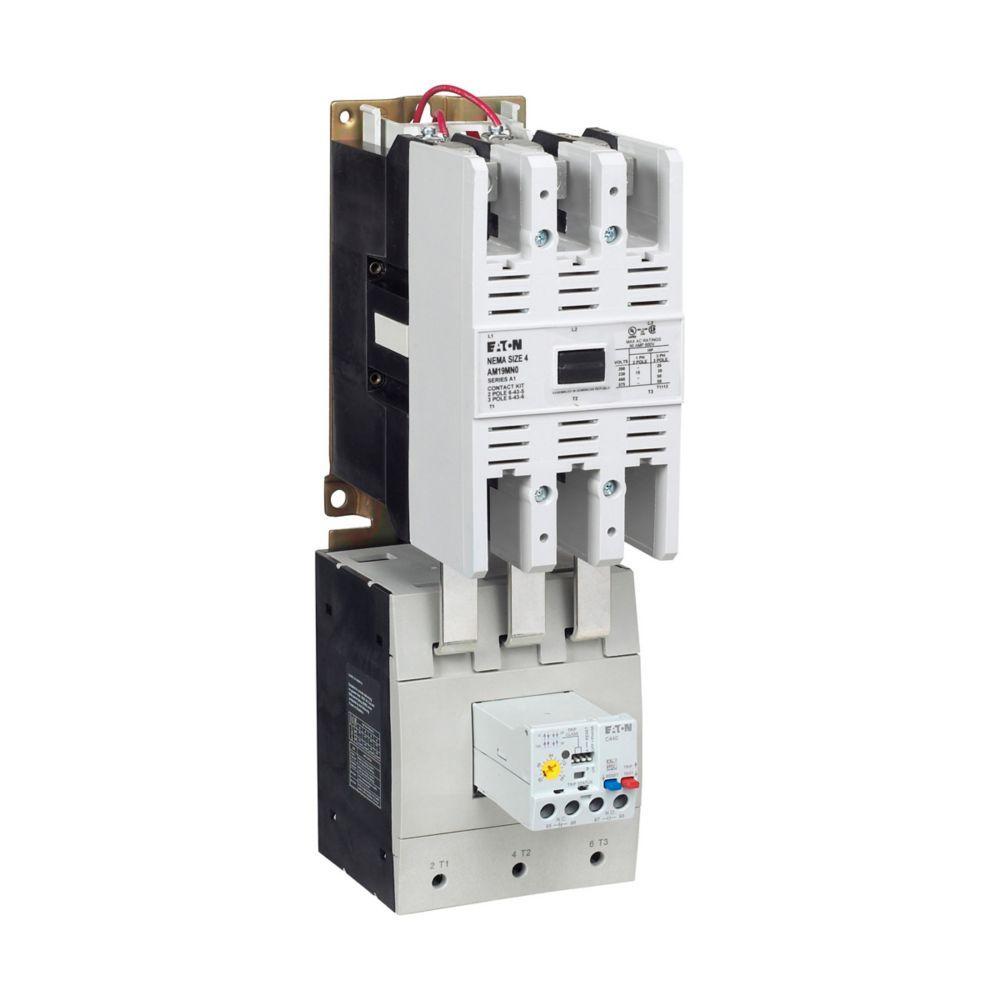

AN19NN0A5E140 CH C440 (28-140A) SZ 4 FVNR STR 120VAC STD

Mouse over image to zoom, click to enlarge

  • AN19NN0A5E140 CH C440 (28-140A) SZ 4 FVNR STR 120VAC STD
  • AN19NN0A5E140 CH C440 (28-140A) SZ 4 FVNR STR 120VAC STD
  • AN19NN0A5E140 CH C440 (28-140A) SZ 4 FVNR STR 120VAC STD

Description: EATON NEMA Starter, Full Voltage Non-Reversing, Series: Freedom, 600 V AC, 28 to 140 A, 50/60 Hz Frequency, 100 hp Motor, 120 VAC Coil, 3 Pole, Auto/Manual Reset, Line/Load Lug Connection, C440 Electronic Overload Relay, 28 to 140 A Full Load, Open Enclosure, 22 in L x 13 in W x 9 in H Dimensions

Manufacturer PN: AN19NN0A5E140

UPC:  78668557511

Kendall Electric Inc PN: 3663245

Invoice Description:

AN19NN0A5E140 CH C440 (28-140A) SZ 4 FVNR STR 120VAC STD


SPEC SHEET

▸ See All in NEMA Starters


How Can We Make This Page Better?

EATON AN19NN0A5E140 Freedom Full Voltage Non-Reversing NEMA Starter, 120 VAC V Coil, 3 Poles, Open Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON NEMA Starter, Full Voltage Non-Reversing, Series: Freedom, 600 V AC, 28 to 140 A, 50/60 Hz Frequency, 100 hp Motor, 120 VAC Coil, 3 Pole, Auto/Manual Reset, Line/Load Lug Connection, C440 Electronic Overload Relay, 28 to 140 A Full Load, Open Enclosure, 22 in L x 13 in W x 9 in H Dimensions

Specifications

 Amperage Rating 28 to 140 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Coil Voltage 120 V AC
 Connection Type Line/Load Lug
 Dimensions 22 in L x 13 in W x 9 in H
 Enclosure Open
 Frequency Rating 50/60 Hz
 Full Load Current 28 to 140 A
 Manufacturer Part Number AN19NN0A5E140
 Motor Power 100 hp
 Number of Poles 3
 Overload Relay C440 Electronic
 Reset Type Auto/Manual
 Series Freedom
 Standards/Approvals UL Listed
 Type Full Voltage Non-Reversing
 Voltage Rating 600 V AC

Features

▪ Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
▪ Accessible terminals allow for ease of use and are convenient for simple wiring
▪ Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
▪ Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
▪ 40 hp at 208 VAC, 50 hp at 240 VAC, 100 hp at 480 VAC
