Eaton

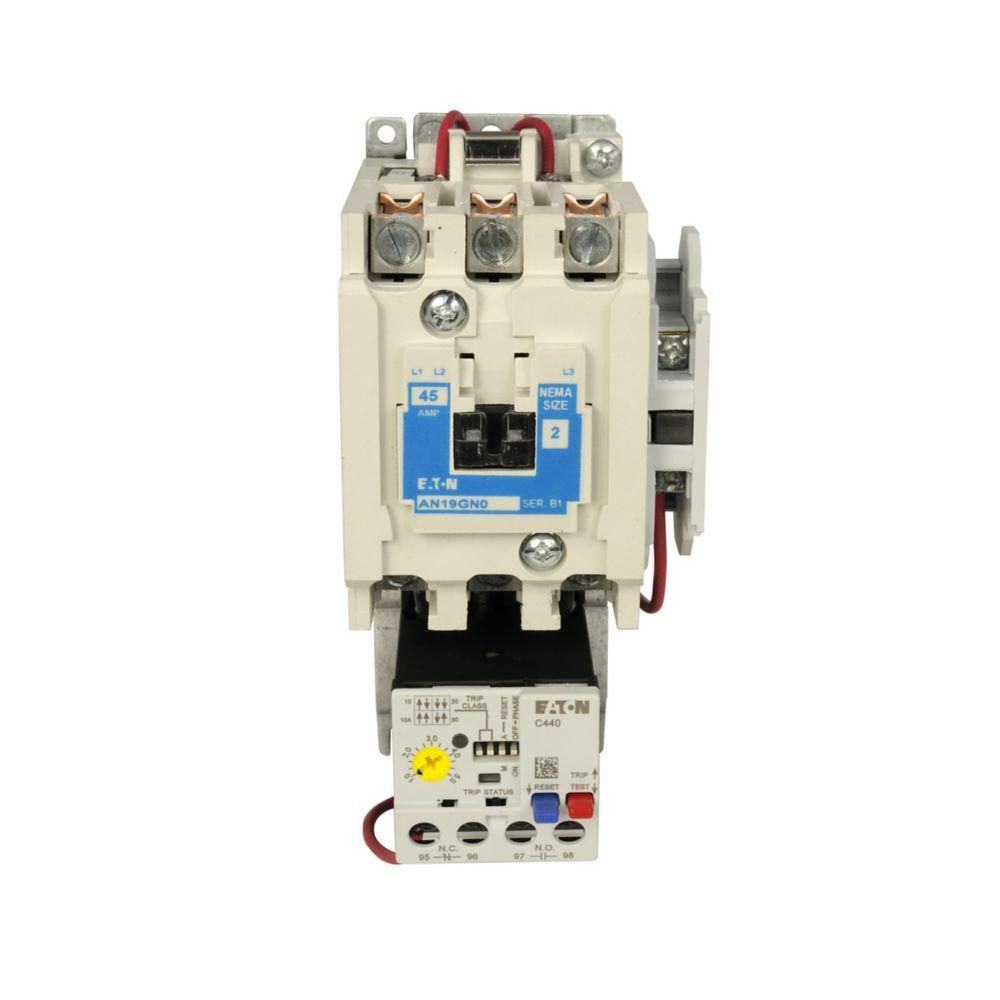

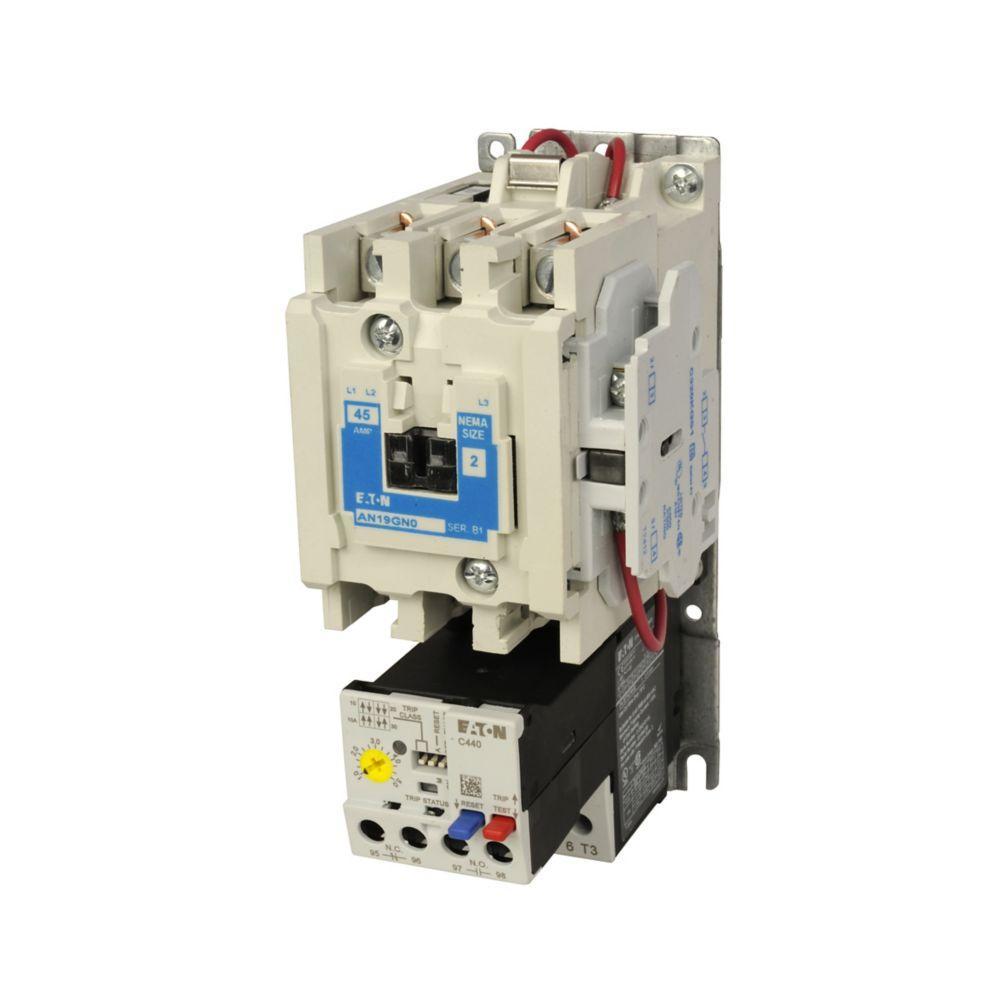

AN19GN0C5E045 CH C440 (9-45A) SZ 2 FVNR STR 480VAC STD

Mouse over image to zoom, click to enlarge

  • AN19GN0C5E045 CH C440 (9-45A) SZ 2 FVNR STR 480VAC STD
  • AN19GN0C5E045 CH C440 (9-45A) SZ 2 FVNR STR 480VAC STD
  • AN19GN0C5E045 CH C440 (9-45A) SZ 2 FVNR STR 480VAC STD

Description: EATON NEMA Starter, Full Voltage Open, Series: Freedom, 600 V AC, 45 A, 50/60 Hz, 25 hp Motor, 440/480 VAC Coil, 3 Pole, Non-Reversing, C440 Electronic Overload Relay, 9 to 45 A Full Load, NEMA 2, 4.98 x 2.6 x 7.1 in

Manufacturer PN: AN19GN0C5E045

UPC:  78668541526

Kendall Electric Inc PN: 3673044

Invoice Description:

AN19GN0C5E045 CH C440 (9-45A) SZ 2 FVNR STR 480VAC STD


SPEC SHEET

How Can We Make This Page Better?

EATON AN19GN0C5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 440/480 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 2 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON NEMA Starter, Full Voltage Open, Series: Freedom, 600 V AC, 45 A, 50/60 Hz, 25 hp Motor, 440/480 VAC Coil, 3 Pole, Non-Reversing, C440 Electronic Overload Relay, 9 to 45 A Full Load, NEMA 2, 4.98 x 2.6 x 7.1 in

Specifications

 Amperage Rating 45 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Coil Voltage 440/480 V AC
 Dimensions 4.98 x 2.6 x 7.1 in
 Enclosure NEMA 2
 Frequency Rating 50/60 Hz
 Full Load Current 9 to 45 A
 Manufacturer Part Number AN19GN0C5E045
 Motor Power 25 hp
 Number of Poles 3
 Overload Relay C440 Electronic
 PART NUMBER KEYWORDS AN19GN0C5E045 ; 11051244 ; 786685415260 ; 78668541526 ; 00786685415260
 Series Freedom
 Standards/Approvals CSA,UL,NEMA,CE,RoHS Compliant
 Type Full Voltage Open
 Voltage Rating 600 V AC

Features

▪ Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
▪ Accessible terminals allow for ease of use and are convenient for simple wiring
▪ Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
▪ Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
▪ 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 hp at 480 VAC horsepower rating
