Eaton

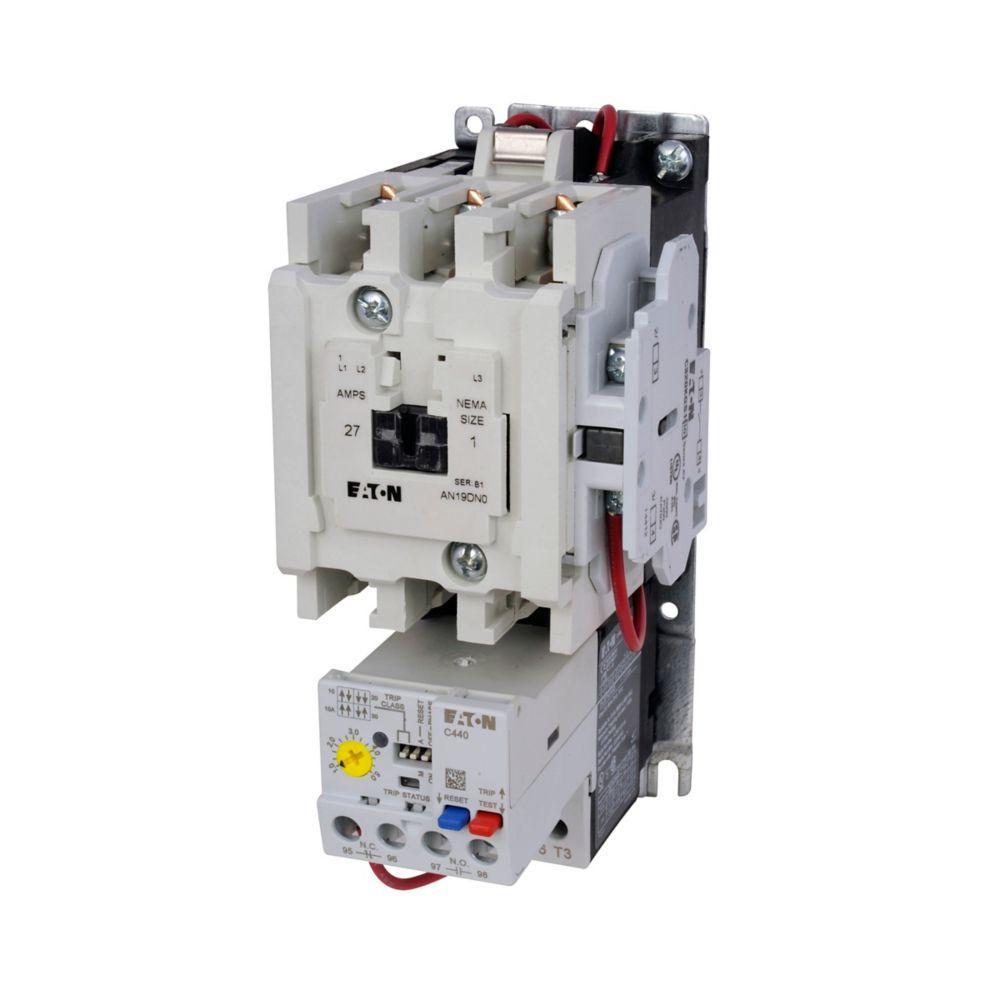

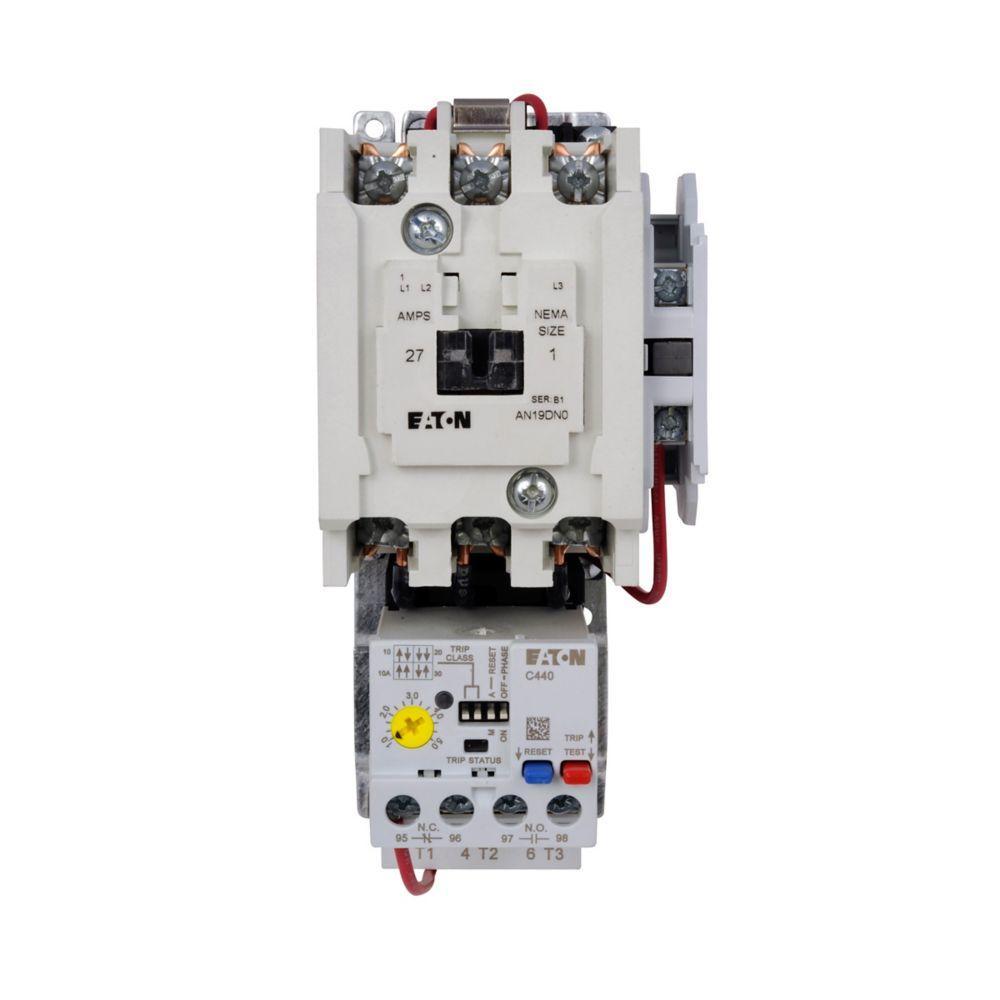

AN19DN0B5E045 CH C440 (9-45A) SZ 1 FVNR STR 240VAC STD

Mouse over image to zoom, click to enlarge

  • AN19DN0B5E045 CH C440 (9-45A) SZ 1 FVNR STR 240VAC STD
  • AN19DN0B5E045 CH C440 (9-45A) SZ 1 FVNR STR 240VAC STD
  • AN19DN0B5E045 CH C440 (9-45A) SZ 1 FVNR STR 240VAC STD

Description: EATON NEMA Starter, Full Voltage Magnetic Non-Reversing, Series: Type AN19 Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 220/240 VAC Coil, 3 Pole, Setting: 9 to 45 A, Automatic/Manual Reset, 1/3 ph, Line/Load Lug, C440 Standard Electronic Overload Relay, 1NO Auxiliary, Open, 4.98 x 2.6 x 7.1 in

Manufacturer PN: AN19DN0B5E045

UPC:  78668541772

Kendall Electric Inc PN: 3903004

Invoice Description:

AN19DN0B5E045 CH C440 (9-45A) SZ 1 FVNR STR 240VAC STD


SPEC SHEET

How Can We Make This Page Better?

EATON AN19DN0B5E045 Type AN19 Freedom Full Voltage Magnetic Non-Reversing NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 220/240 VAC V Coil, 3 Poles, Open Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON NEMA Starter, Full Voltage Magnetic Non-Reversing, Series: Type AN19 Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 220/240 VAC Coil, 3 Pole, Setting: 9 to 45 A, Automatic/Manual Reset, 1/3 ph, Line/Load Lug, C440 Standard Electronic Overload Relay, 1NO Auxiliary, Open, 4.98 x 2.6 x 7.1 in

Specifications

 Amperage Rating 27 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Auxiliary Contact Rating 1NO
 Brand Name EATON
 Coil Voltage 220/240 V AC
 Connection Type Line/Load Lug
 Dimensions 4.98 x 2.6 x 7.1 in
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number AN19DN0B5E045
 Motor Power 10 hp
 Number of Poles 3
 Overload Relay C440 Standard Electronic
 PART NUMBER KEYWORDS AN19DN0B5E045 ; 11051391 ; 786685417721 ; 78668541772 ; 00786685417721
 Phase 1/3
 Reset Type Automatic/Manual
 Series Type AN19 Freedom
 Setting 9 to 45 A
 Standards/Approvals NEMA,UL,CSA,CE,RoHS Compliant
 Type Full Voltage Magnetic Non-Reversing
 Voltage Rating 600 V AC

Features

▪ Reliable, accurate, electronic motor protection
▪ Easy to select, install and maintain
▪ Compact size
▪ Flexible, intelligent design
▪ 2 hp at 115 VAC 1 ph, 3 hp at 230 VAC 1 ph, 7-1/2 hp at 208/240 VAC 3 ph, 10 hp at 480/600 VAC 3 ph horsepower rating
