Eaton

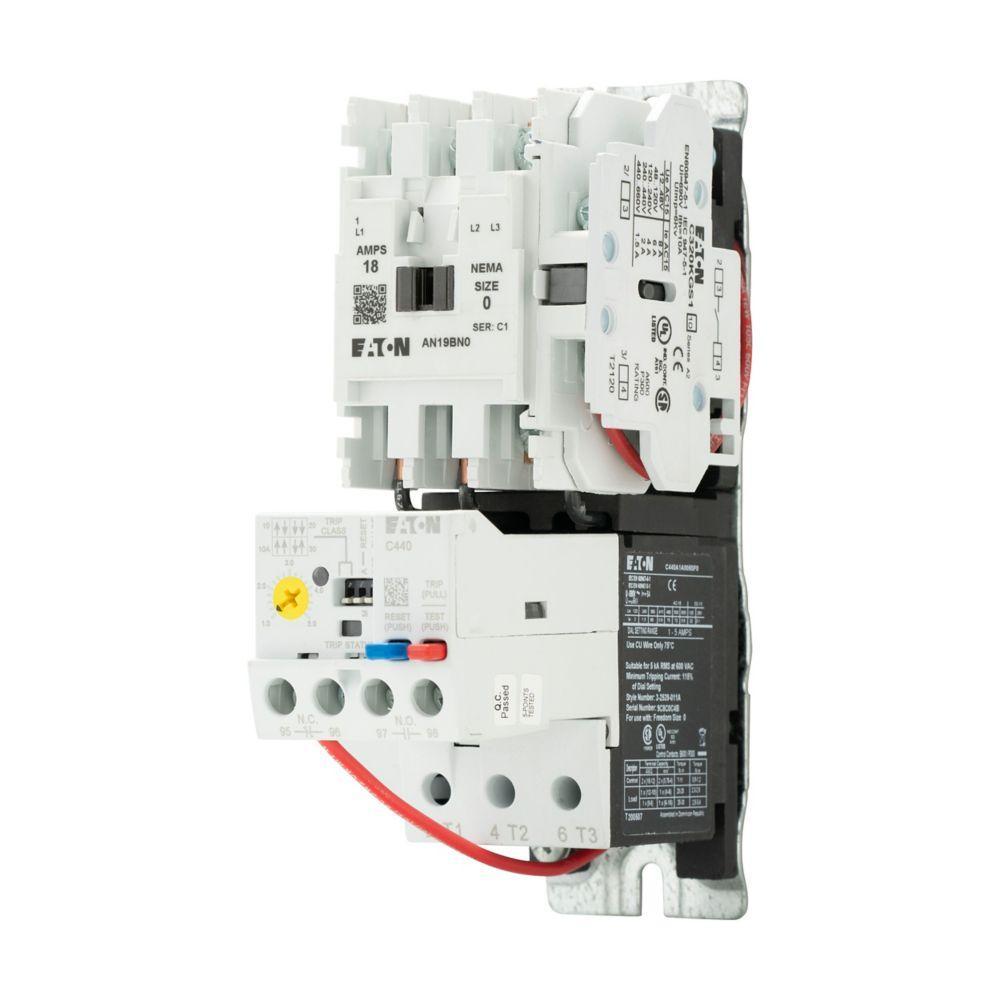

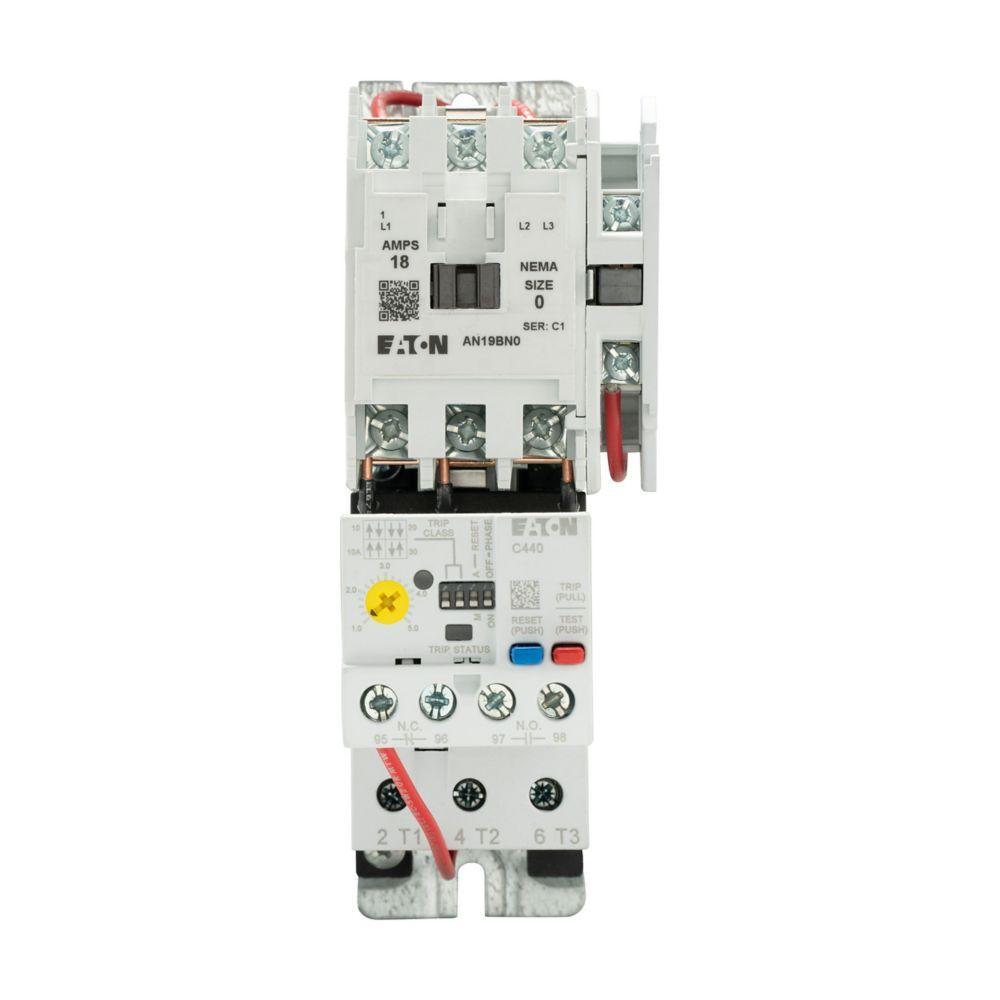

AN19BN0T5E005 CH NEMA COMBO STARTER C440 1-5A SZ 0 FVNR STR 24VAC STD

Mouse over image to zoom, click to enlarge

  • AN19BN0T5E005 CH NEMA COMBO STARTER C440 1-5A SZ 0 FVNR STR 24VAC STD
  • AN19BN0T5E005 CH NEMA COMBO STARTER C440 1-5A SZ 0 FVNR STR 24VAC STD
  • AN19BN0T5E005 CH NEMA COMBO STARTER C440 1-5A SZ 0 FVNR STR 24VAC STD

Description: EATON, AN19BN0T5E005, NEMA Starter With C440 EOLR Standard Feature Set, Full Voltage Open, Series: Freedom, 600 V AC, 18 A, 50/60 Hz Frequency, 1 hp, 2 hp, 3 hp, 5 hp Motor, 24 V DC Coil, 3 Pole, Non-Reversing Action, C440 Electronic Overload Relay, 1 to 5 A Full Load, Open Enclosure, 4.9 x 1.97 x 6.6 in Dimensions

Manufacturer PN: AN19BN0T5E005

UPC:  78668541446

Kendall Electric Inc PN: 3901220

Invoice Description:

AN19BN0T5E005 CH NEMA COMBO STARTER C440 1-5A SZ 0 FVNR STR 24VAC STD


SPEC SHEET

How Can We Make This Page Better?

EATON AN19BN0T5E005 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, 24 V DC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON, AN19BN0T5E005, NEMA Starter With C440 EOLR Standard Feature Set, Full Voltage Open, Series: Freedom, 600 V AC, 18 A, 50/60 Hz Frequency, 1 hp, 2 hp, 3 hp, 5 hp Motor, 24 V DC Coil, 3 Pole, Non-Reversing Action, C440 Electronic Overload Relay, 1 to 5 A Full Load, Open Enclosure, 4.9 x 1.97 x 6.6 in Dimensions

Specifications

 Amperage Rating 18 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Coil Voltage 24 V DC
 Dimensions 4.9 x 1.97 x 6.6 in
 Enclosure Open
 Frequency Rating 50/60 Hz
 Full Load Current 1 to 5 A
 Manufacturer Part Number AN19BN0T5E005
 Motor Power 1 hp, 2 hp, 3 hp, 5 hp
 Number of Poles 3
 Overload Relay C440 Electronic
 PART NUMBER KEYWORDS AN19BN0T5E005 ; 11051481 ; 786685414461 ; 78668541446 ; 00786685414461
 Series Freedom
 Standards/Approvals CSA,CE,UL,NEMA,RoHS Compliant
 Type Full Voltage Open
 Voltage Rating 600 V AC

Features

▪ Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
▪ Accessible terminals allow for ease of use and are convenient for simple wiring
▪ Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
▪ Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
▪ 1 hp at 115 VAC, 2 hp at 230 VAC, 3 hp at 208/240 VAC, 5 hp at 480 VAC horsepower rating
▪ NEMA Size 0
