Eaton

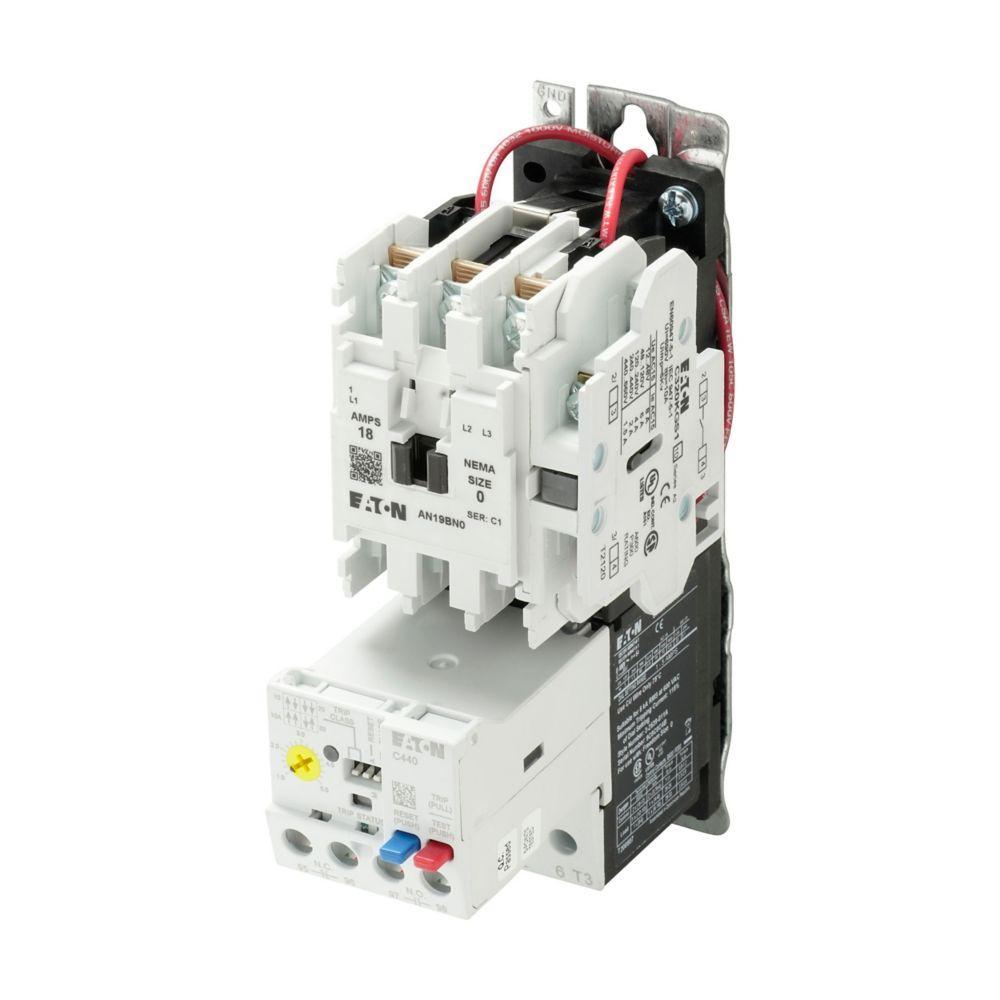

AN19BN0A5E005 CH C440 (1-5A) SZ 0 FVNR STR 120VAC STD

Mouse over image to zoom, click to enlarge

  • AN19BN0A5E005 CH C440 (1-5A) SZ 0 FVNR STR 120VAC STD
  • AN19BN0A5E005 CH C440 (1-5A) SZ 0 FVNR STR 120VAC STD
  • AN19BN0A5E005 CH C440 (1-5A) SZ 0 FVNR STR 120VAC STD
  • AN19BN0A5E005 CH C440 (1-5A) SZ 0 FVNR STR 120VAC STD

Description: EATON, AN19BN0A5E005, NEMA Starter With C440 EOLR Standard Feature Set, Type AN19 Horizontal Open, Series: Freedom, 600 V AC, 18 A, 50/60 Hz Frequency, 5 hp Motor, 110/120 V AC Coil, 3 Pole, Line/Load Connection, Non-Reversing Action, C440 Electronic Overload Relay, 1 to 5 A Full Load, Open Enclosed Enclosure, 3000000 Cycles Operating Cycles, 8 x 4 x 6 in Dimensions

Manufacturer PN: AN19BN0A5E005

UPC:  78668541466

Kendall Electric Inc PN: 2781616

Invoice Description:

AN19BN0A5E005 CH C440 (1-5A) SZ 0 FVNR STR 120VAC STD


SPEC SHEET

▸ See All in NEMA Starters


How Can We Make This Page Better?

EATON AN19BN0A5E005 Freedom Type AN19 Horizontal Open NEMA Starter With C440 EOLR Standard Feature Set, 110/120 V AC V Coil, Non-Reversing Action, 3 Poles, Open Enclosed Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON, AN19BN0A5E005, NEMA Starter With C440 EOLR Standard Feature Set, Type AN19 Horizontal Open, Series: Freedom, 600 V AC, 18 A, 50/60 Hz Frequency, 5 hp Motor, 110/120 V AC Coil, 3 Pole, Line/Load Connection, Non-Reversing Action, C440 Electronic Overload Relay, 1 to 5 A Full Load, Open Enclosed Enclosure, 3000000 Cycles Operating Cycles, 8 x 4 x 6 in Dimensions

Specifications

 Amperage Rating 18 A
 Application Factories Facility, Motor and Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 110/120 V AC
 Connection Type Line/Load
 Dimensions 8 x 4 x 6 in
 Enclosure Open Enclosed
 Frequency Rating 50/60 Hz
 Full Load Current 1 to 5 A
 Manufacturer Part Number AN19BN0A5E005
 Motor Power 5 hp
 Number of Poles 3
 Operating Cycles 3000000 Cycles
 Overload Relay C440 Electronic
 PART NUMBER KEYWORDS AN19BN0A5E005 ; 11051512 ; 786685414669 ; 78668541466 ; 00786685414669
 Series Freedom
 Standards/Approvals CE,UL,CSA,NEMA,RoHS Compliant
 Type Type AN19 Horizontal Open
 Voltage Rating 600 V AC

Features

▪ Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
▪ Accessible terminals allow for ease of use and are convenient for simple wiring
▪ Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
▪ Standard feature set, SEL reset, SEL class (10A, 10, 20, 30) C440 EOLR
▪ With C440 EOLR standard feature set
▪ NEMA Size 0
