Eaton

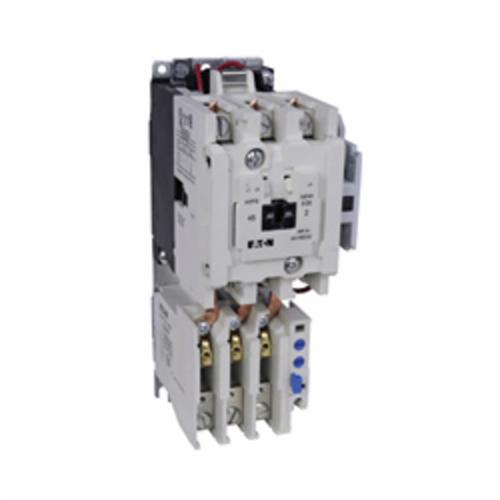

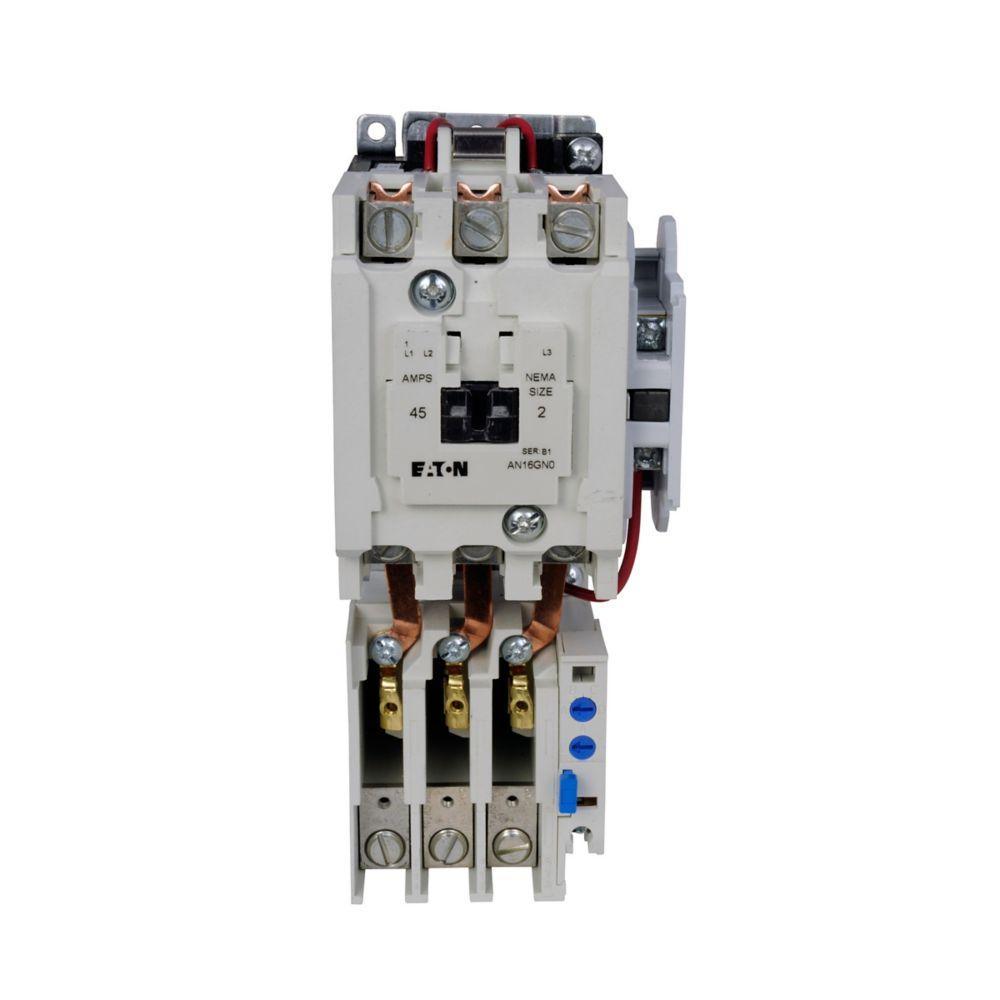

AN16GN0BB CH NEMA OPEN 3P STR SIZE 2 240V COIL

Mouse over image to zoom, click to enlarge

  • AN16GN0BB CH NEMA OPEN 3P STR SIZE 2 240V COIL
  • AN16GN0BB CH NEMA OPEN 3P STR SIZE 2 240V COIL
  • AN16GN0BB CH NEMA OPEN 3P STR SIZE 2 240V COIL
  • AN16GN0BB CH NEMA OPEN 3P STR SIZE 2 240V COIL

Description: EATON NEMA Starter, Non-Reversing, Series: Freedom, 220/240 V, 45 A, 50/60 Hz, 3 hp at 115 VAC/7-1/2 hp at 230 VAC/10 hp at 208 VAC/15 hp at 240 VAC/25 hp at 480/600 VAC Motor, 220/240 V AC Coil, 3 Pole, Automatic/Manual Reset, 1/3 ph, NEMA 2 Enclosure, 11 x 7 x 6 in

Manufacturer PN: AN16GN0BB

UPC:  78211397185

Kendall Electric Inc PN: 2303616

Invoice Description:

AN16GN0BB CH NEMA OPEN 3P STR SIZE 2 240V COIL


SPEC SHEET

How Can We Make This Page Better?

EATON AN16GN0BB Freedom Non-Reversing NEMA Starter With C306 Bi-Metal Reset Overload Relay, 220/240 V AC V Coil, 3 Poles, NEMA 2 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON NEMA Starter, Non-Reversing, Series: Freedom, 220/240 V, 45 A, 50/60 Hz, 3 hp at 115 VAC/7-1/2 hp at 230 VAC/10 hp at 208 VAC/15 hp at 240 VAC/25 hp at 480/600 VAC Motor, 220/240 V AC Coil, 3 Pole, Automatic/Manual Reset, 1/3 ph, NEMA 2 Enclosure, 11 x 7 x 6 in

Specifications

 Amperage Rating 45 A
 Application Motor, Power Control Equipment, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Coil Voltage 220/240 V AC
 Dimensions 11 x 7 x 6 in
 Enclosure NEMA 2
 Frequency Rating 50/60 Hz
 Manufacturer Part Number AN16GN0BB
 Motor Power 3 hp at 115 VAC/7-1/2 hp at 230 VAC/10 hp at 208 VAC/15 hp at 240 VAC/25 hp at 480/600 VAC
 Number of Poles 3
 PART NUMBER KEYWORDS AN16GN0BB ; 7376027 ; 782113971858 ; 78211397185 ; 00782113971858
 Phase 1/3
 Reset Type Automatic/Manual
 Series Freedom
 Standards/Approvals UL Listed,CSA Certified
 Type Non-Reversing
 Voltage Rating 220/240 V

Features

▪ Heater packs must be purchased separately
▪ Horizontal mounting
▪ 3 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 208 VAC, 15 hp at 240 VAC, 25 hp at 480/600 VAC horsepower rating
