AN16DN0AB CH NEMA OPEN 3P STR SIZE 1 120V COIL

Mouse over image to zoom, click to enlarge

  • AN16DN0AB CH NEMA OPEN 3P STR SIZE 1 120V COIL
  • AN16DN0AB CH NEMA OPEN 3P STR SIZE 1 120V COIL
  • AN16DN0AB CH NEMA OPEN 3P STR SIZE 1 120V COIL

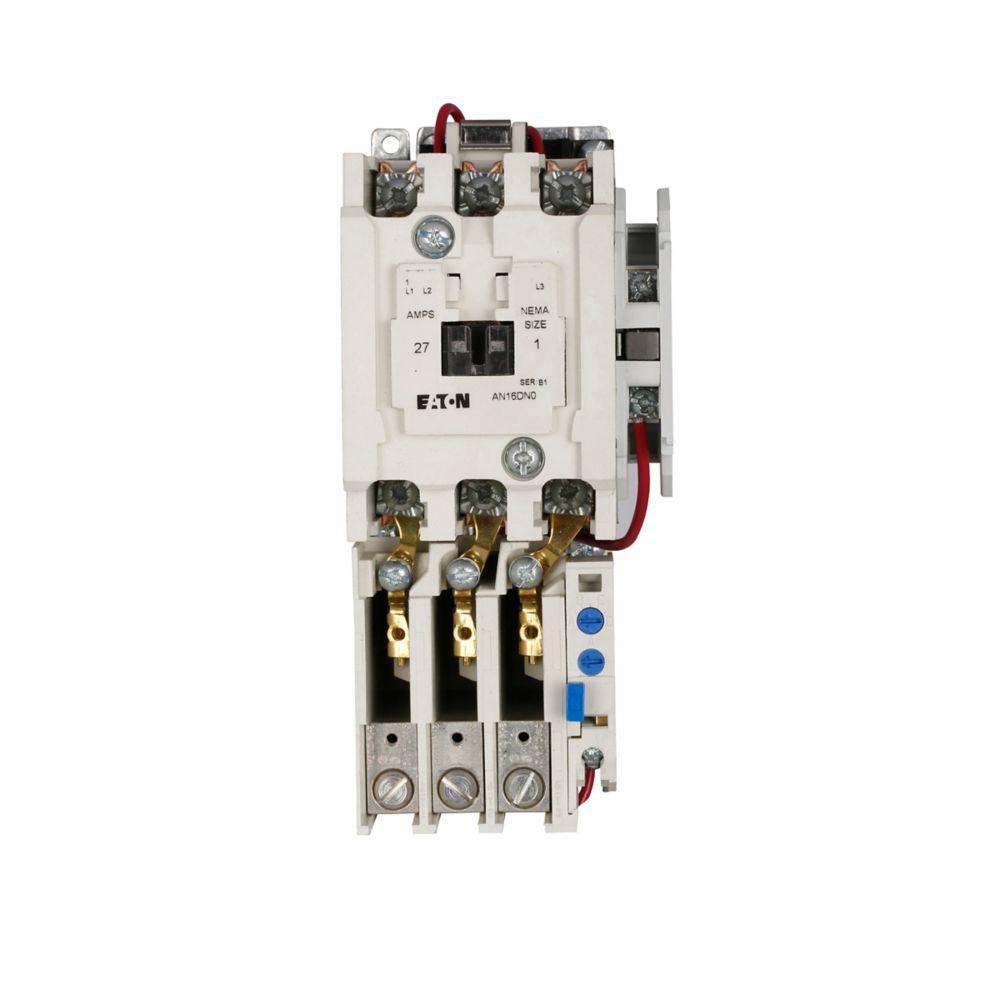

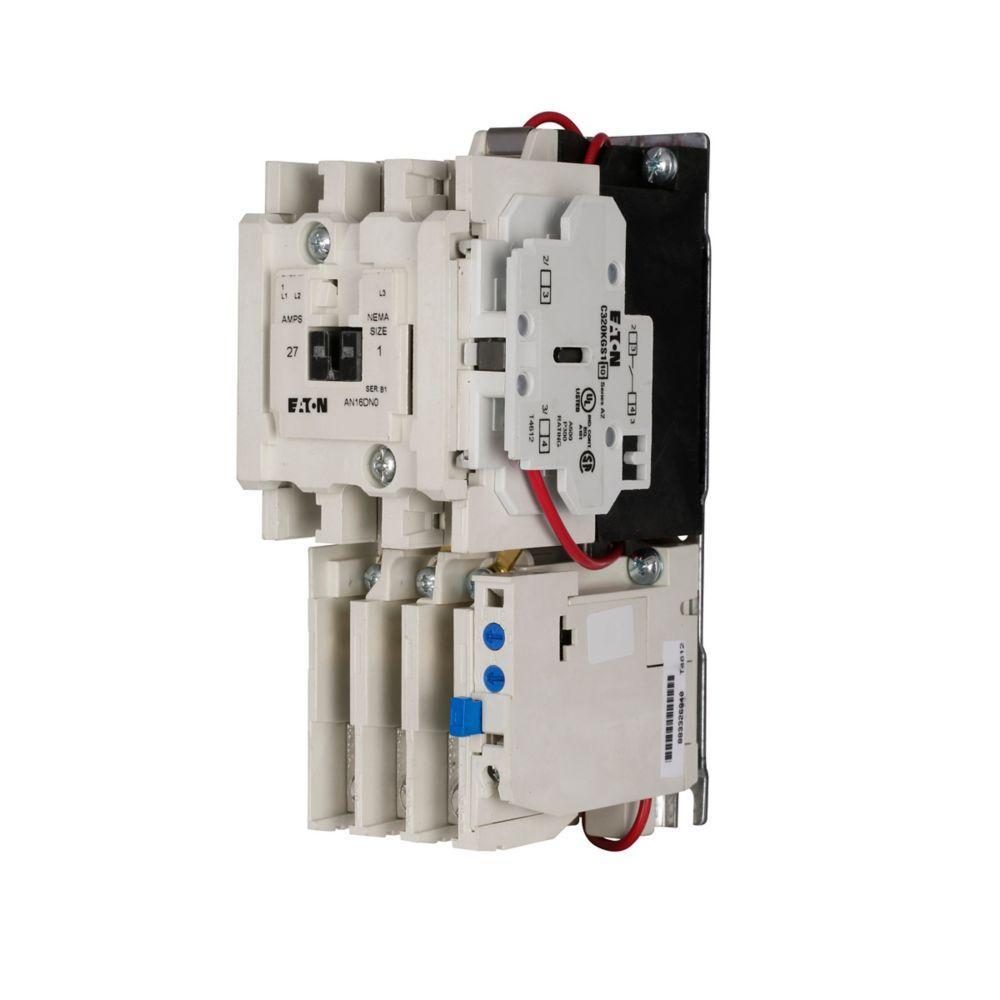

Description: EATON NEMA Starter, Type AN16 Horizontal Open, Series: Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 110 to 120 VAC Coil, 3 Pole, Automatic/Manual Reset, Line/Load, Non-Reversing, C306 Bimetal Overload Relay, NEMA 1 Enclosure, 3000000 Cycles Operating Cycles, 4.61 x 4.38 x 3.31 in

Manufacturer PN: AN16DN0AB

UPC:  78211397170

Kendall Electric Inc PN: 2015087

Invoice Description:

AN16DN0AB CH NEMA OPEN 3P STR SIZE 1 120V COIL


SPEC SHEET

▸ See All in NEMA Starters


How Can We Make This Page Better?

EATON AN16DN0AB Freedom Type AN16 Horizontal Open NEMA Starter, 110 to 120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON NEMA Starter, Type AN16 Horizontal Open, Series: Freedom, 600 V AC, 27 A, 50/60 Hz, 10 hp Motor, 110 to 120 VAC Coil, 3 Pole, Automatic/Manual Reset, Line/Load, Non-Reversing, C306 Bimetal Overload Relay, NEMA 1 Enclosure, 3000000 Cycles Operating Cycles, 4.61 x 4.38 x 3.31 in

Specifications

 Amperage Rating 27 A
 Application Motor, Power Control Equipment, Stationary Machinery and Equipment Outside Factory
 Brand Name EATON
 Coil Voltage 110 to 120 V AC
 Connection Type Line/Load
 Dimensions 4.61 x 4.38 x 3.31 in
 Enclosure NEMA 1
 Frequency Rating 50/60 Hz
 Includes 1/2-13 x 1-1/2 in L Set Screw
 Manufacturer Part Number AN16DN0AB
 Motor Power 10 hp
 Number of Poles 3
 Operating Cycles 3000000 Cycles
 Overload Relay C306 Bimetal
 Reset Type Automatic/Manual
 Series Freedom
 Standards/Approvals CSA Certified,UL Listed
 Type Type AN16 Horizontal Open
 Voltage Rating 600 V AC

Features

▪ Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
▪ Accessible terminals allow for ease of use and are convenient for simple wiring
▪ Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout
▪ 2 hp at 115 VAC, 3 hp at 230 VAC, 7-1/2 hp at 208,240 VAC, 10 hp at 480 VAC horsepower rating

Time Zone
