Fluke
AMP-330 AMPROBE 1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING 09596977089

Mouse over image to zoom, click to enlarge

  • AMP-330 AMPROBE 1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING 09596977089
  • AMP-330 AMPROBE 1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING 09596977089

Description: Amprobe® Clamp-On Meter, AC/DC Digital True RMS, 0 to 600 A, 0 to 1000 V AC, 0 to 600 V DC Electrical Rating, 0 to 60 kOhm Resistance, 5 to 999.9 Hz Frequency, 2 in Jaw, 6000 Count, 3-5/6 Digits Large Backlit LCD Display, +/-1.8% RDG + 5 LSD, +/-2% RDG + 5 LSD AC Current Accuracy, +/-0.8% RDG + 5 LSD at 1000 VAC, +/-1% RDG + 5 LSD at 600 VDC Voltage Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, (2) 1.5 VDC AAA Alkaline Battery Power Source, 14 to 122 deg F Operating, 10.16 in L x 3.7 in W x 1.73 in H Dimensions

Manufacturer PN: AMP-330

UPC:  09596977089

Kendall Electric Inc PN: 3515399

Invoice Description:

AMP-330 AMPROBE 1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING 09596977089


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Amprobe® AMP-330 AC/DC Digital True RMS Clamp-On Meter With Motor Testing, 0 to 600 A, 0 to 1000 V AC, 0 to 600 V DC, 0 to 60 kOhm, 5 to 999.9 Hz, 2 in Jaw, 3-5/6 Digits Large Backlit LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

If you're looking for a versatile clamp-on ammeter for electrical motor maintenance and HVAC testing in high voltage industrial environments, the AMP-330 clamp meter is the best clamp meter for the job. It is the best clamp meter in the AMP-300 series line including all the features of the AMP-320 plus a work light, peak hold, CAT IV 600 V, CAT III 1000 V safety rating and large 2 in jaw. HVAC technicians will find the temperature and capacitance measurements they need plus DC micro-amps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing and inrush current measurement for motor start up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The amp-tip function allows for precise measurement of current down to the tenth of an amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, TRMS, non-contact voltage detection, resistance and continuity.
Amprobe® Clamp-On Meter, AC/DC Digital True RMS, 0 to 600 A, 0 to 1000 V AC, 0 to 600 V DC Electrical Rating, 0 to 60 kOhm Resistance, 5 to 999.9 Hz Frequency, 2 in Jaw, 6000 Count, 3-5/6 Digits Large Backlit LCD Display, +/-1.8% RDG + 5 LSD, +/-2% RDG + 5 LSD AC Current Accuracy, +/-0.8% RDG + 5 LSD at 1000 VAC, +/-1% RDG + 5 LSD at 600 VDC Voltage Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, (2) 1.5 VDC AAA Alkaline Battery Power Source, 14 to 122 deg F Operating, 10.16 in L x 3.7 in W x 1.73 in H Dimensions

Specifications

 AC Current Accuracy +/-1.8% RDG + 5 LSD, +/-2% RDG + 5 LSD
 Application HVAC Motor Maintenance and Industrial Environments
 Brand Name Amprobe
 Counts 6000
 Dimensions 10.16 in L x 3.7 in W x 1.73 in H
 Electrical Ratings 0 to 600 A, 0 to 1000 V AC, 0 to 600 V DC
 Frequency Rating 5 to 999.9 Hz

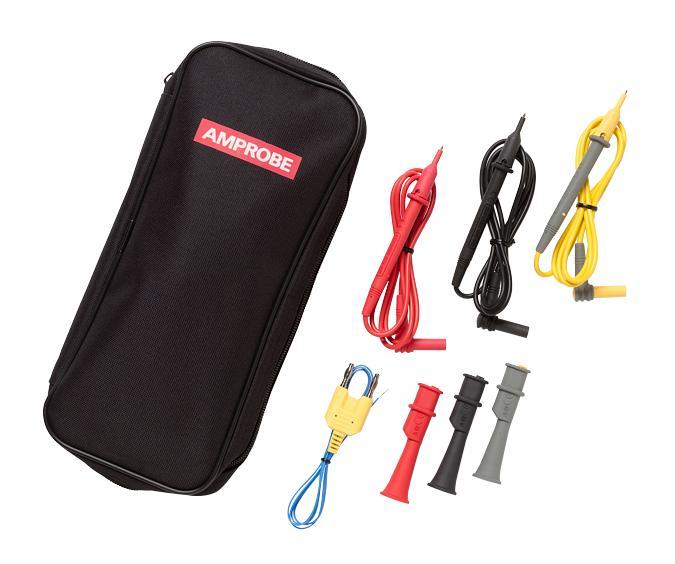

 Includes Test Leads, (2) Batteries (Installed), Alligator Clip Set, Banana Plug Type-K Thermocouple, Carrying Case and User Manual
 Jaw Capacity 2 in
 Manufacturer Part Number AMP-330
 Operating Temperature 14 to 122 deg F
 PART NUMBER KEYWORDS AMP-330 ; AMP330 ; 4560570 ; 095969770897 ; 95969770897 ; 09596977089 ; 00095969770897
 Power Source (2) 1.5 V DC AAA Alkaline Battery
 Resistance 0 to 60 kOhm
 Standards/Approvals RoHS Compliant|cULus Listed|CE Certified|C-Tick Certified|CSA C22.2 File No. 61010-1|UL Listed|IEC/EN 61010-1|IEC/EN 61010-2-033|IEC/EN 61010-2-032|IEC/EN 61010-031|EN 61326-1|PROP65: This product is in Compliant with PROP65; it is not known to contain any chemicals associated with this regulation
 Type AC/DC Digital True RMS
 Voltage Accuracy +/-0.8% RDG + 5 LSD at 1000 V AC, +/-1% RDG + 5 LSD at 600 V DC

Features

▪ Maximizes battery life with auto power off and low battery indicator
▪ Boasts peak hold and work light
▪ Backlit display for easy measurement viewing in bright and dim environments
▪ Accommodates conductors upto 2 in Dia
▪ +/-1% + 5 LSD resistance accuracy
▪ +/-1% + 5 LSD at 600 VAC, +/-2% + 4 LSD at 600 A frequency accuracy
▪ Measures DC microamps output to test proper operation of the flame sensor on gas appliances
▪ Measures capacitance, test diodes and features a continuity beeper
▪ Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
▪ Monitors inrush current during motor start up
▪ True-RMS sensing for accurate voltage measurements in noisy electrical environments
▪ Amp-tip function delivers precise low AC current measurements
▪ Includes a low pass filter to accurately measure voltage and current on variable frequency drives
▪ Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
▪ Provides data hold, relative zero and maximum/minimum/average mode for quick analysis
