Eaton

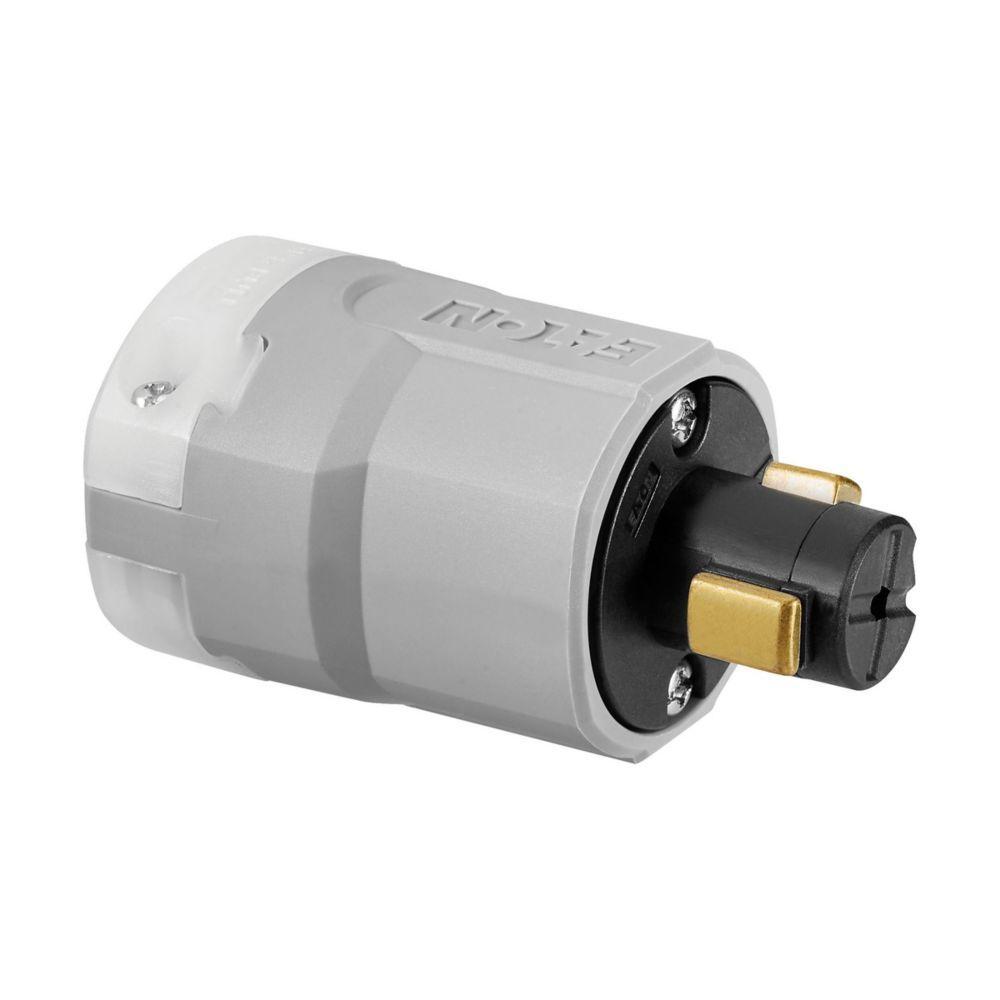

AHPL23056N CWD PLUG POWERLOCK 20A125V2P3W HOSP NYLON GY

Mouse over image to zoom, click to enlarge

  • AHPL23056N CWD PLUG POWERLOCK 20A125V2P3W HOSP NYLON GY
  • AHPL23056N CWD PLUG POWERLOCK 20A125V2P3W HOSP NYLON GY
  • AHPL23056N CWD PLUG POWERLOCK 20A125V2P3W HOSP NYLON GY

Description: EATON Power Lock Plug, Ultra Grip, 125 V AC, 20 A, 2 Pole, 3 Wires, Non-NEMA, Grade Hospital/Industrial, 0.256 to 0.656 in Cord Dia, -40 to 221 deg F, Pressure Wire Terminal, Glass-Filled Nylon, Gray, 1.91 in W x 3.37 in H

Manufacturer PN: AHPL23056N

UPC:  03266474745

Kendall Electric Inc PN: 4055385

Invoice Description:

AHPL23056N CWD PLUG POWERLOCK 20A125V2P3W HOSP NYLON GY


SPEC SHEET

▸ See All in Power Interrupting Locking Plugs


How Can We Make This Page Better?

EATON AHPL23056N Ultra Grip Power Lock Plug, 125 V AC, 20 A, 2 Poles, 3 Wires, Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's power lock devices are designed for safety, energizing within a chamber to eliminate the possibility of exterior arcing. The chamber is protected by a spring-loaded safety shutter that ejects the plug if it's not fully locked in place. The shutter also prevents the entrance of foreign matter and provides an IP30 finger-safe rating. These devices are ideal for high-abuse industrial and specialized hospital applications. Designed with the latest in ergonomic shape, the power lock devices provide a superior design and performance, making them ideal for many applications. The devices are available in a wide range of non-NEMA configurations.
EATON Power Lock Plug, Ultra Grip, 125 V AC, 20 A, 2 Pole, 3 Wires, Non-NEMA, Grade Hospital/Industrial, 0.256 to 0.656 in Cord Dia, -40 to 221 deg F, Pressure Wire Terminal, Glass-Filled Nylon, Gray, 1.91 in W x 3.37 in H

Specifications

 Amperage Rating 20 A
 Brand Name EATON
 Color Gray
 Cord Diameter 0.256 to 0.656 in
 Dimensions 1.91 in W x 3.37 in H
 Grade Hospital/Industrial
 Manufacturer Part Number AHPL23056N
 Material Glass-Filled Nylon
 NEMA Rating Non-NEMA
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS AHPL23056N ; 13906162 ; 032664747458 ; 32664747458 ; 03266474745 ; 00032664747458
 Standards/Approvals cULus Listed,RoHS Compliant
 Temperature Rating -40 to 221 deg F
 Terminal Type Pressure Wire
 Type Ultra Grip
 Voltage Rating 125 V AC

Features

▪ Arrow Hart® power lock devices are designed for safety by utilizing a spring loaded shutter on connectors and receptacles to completely isolate energized contact
▪ Spring-loaded safety shutter automatically ejects the plug if it has not been properly locked into the female device (receptacle or connector) which eliminates teasing the contacts and insures long-lasting performance
▪ Spring-loaded safety shutter helps to contain and extinguish arcs if the devices are accidentally unmated under load, providing a quicker disconnect and higher degree of safety for the user
▪ Spring-loaded safety shutter prevents the entrance of foreign matter in the female contact chamber and provides an IP30 finger-safe rating
▪ Amperage/voltage and configuration clearly marked on the device for easy identification of device capabilities
