Eaton

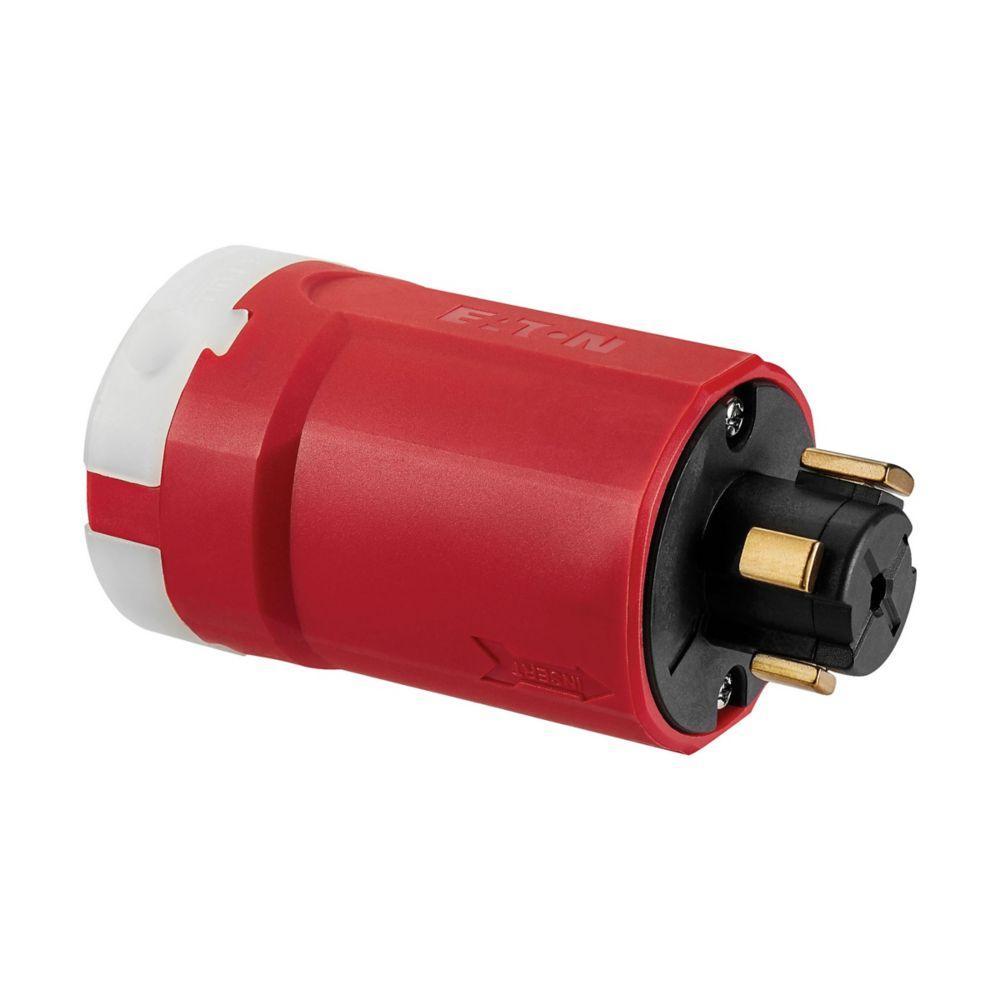

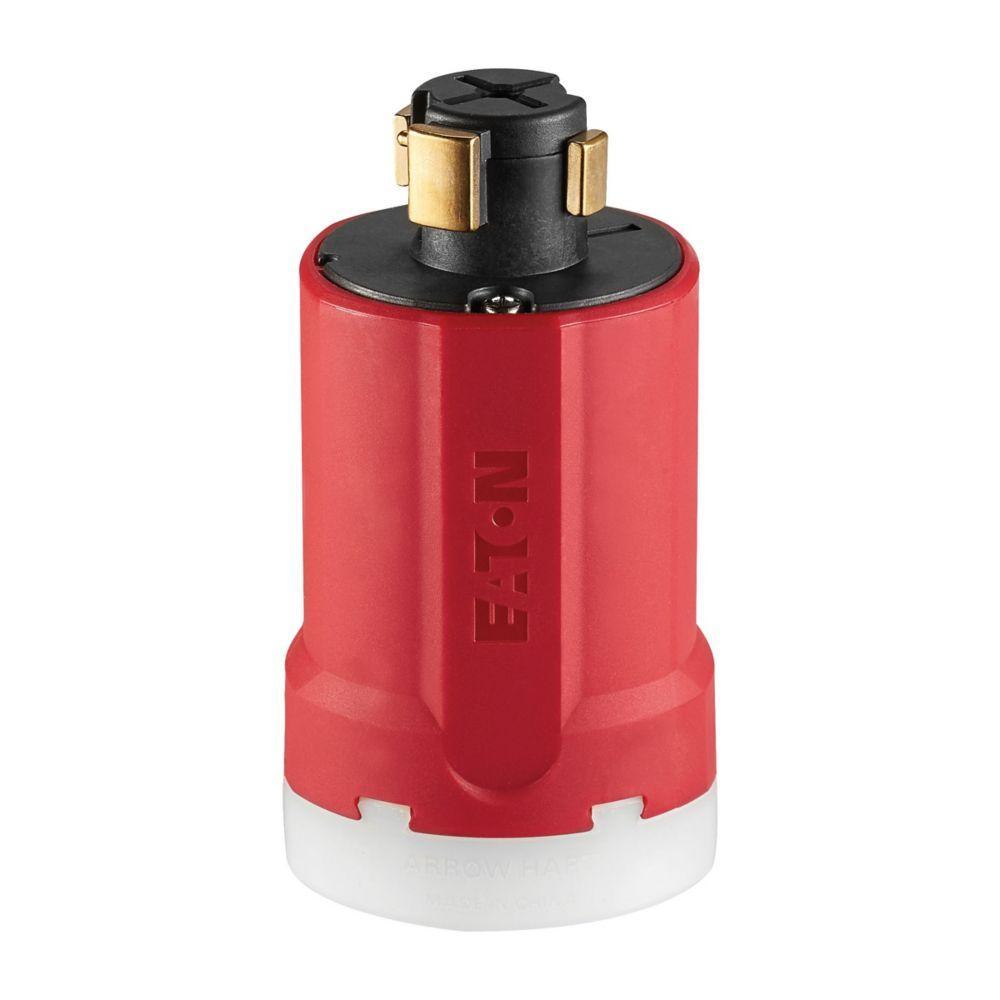

AHPL20445N CWD RED NYLON LKG PLUG 3P4W 30A480V AUTOGRIP.40-1.062IN

Mouse over image to zoom, click to enlarge

  • AHPL20445N CWD RED NYLON LKG PLUG 3P4W 30A480V AUTOGRIP.40-1.062IN
  • AHPL20445N CWD RED NYLON LKG PLUG 3P4W 30A480V AUTOGRIP.40-1.062IN
  • AHPL20445N CWD RED NYLON LKG PLUG 3P4W 30A480V AUTOGRIP.40-1.062IN

Description: EATON Power Lock Plug, Ultra Grip, 480 V AC, 30 A, 3 Pole, 4 Wires, Non-NEMA, Grade Hospital/Industrial, 0.38 to 1.06 in Cord Dia, -40 to 221 deg F, Pressure Wire Terminal, Glass-Filled Nylon, Red, 2.65 in W x 4.95 in H

Manufacturer PN: AHPL20445N

UPC:  03266474741

Kendall Electric Inc PN: 18609

Invoice Description:

AHPL20445N CWD RED NYLON LKG PLUG 3P4W 30A480V AUTOGRIP.40-1.062IN


SPEC SHEET

▸ See All in Power Interrupting Locking Plugs


How Can We Make This Page Better?

EATON AHPL20445N Ultra Grip Power Lock Plug, 480 V AC, 30 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability




Description

Eaton's power lock devices are designed for safety, energizing within a chamber to eliminate the possibility of exterior arcing. The chamber is protected by a spring-loaded safety shutter that ejects the plug if it's not fully locked in place. The shutter also prevents the entrance of foreign matter and provides an IP30 finger-safe rating. These devices are ideal for high-abuse industrial and specialized hospital applications. Designed with the latest in ergonomic shape, the power lock devices provide a superior design and performance, making them ideal for many applications. The devices are available in a wide range of non-NEMA configurations.
EATON Power Lock Plug, Ultra Grip, 480 V AC, 30 A, 3 Pole, 4 Wires, Non-NEMA, Grade Hospital/Industrial, 0.38 to 1.06 in Cord Dia, -40 to 221 deg F, Pressure Wire Terminal, Glass-Filled Nylon, Red, 2.65 in W x 4.95 in H

Specifications

 Amperage Rating 30 A
 Brand Name EATON
 Color Red
 Cord Diameter 0.38 to 1.06 in
 Dimensions 2.65 in W x 4.95 in H
 Grade Hospital/Industrial
 Manufacturer Part Number AHPL20445N
 Material Glass-Filled Nylon
 NEMA Rating Non-NEMA
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS AHPL20445N ; 13906158 ; 032664747410 ; 32664747410 ; 03266474741 ; 00032664747410
 Standards/Approvals cULus Listed
 Temperature Rating -40 to 221 deg F
 Terminal Type Pressure Wire
 Type Ultra Grip
 Voltage Rating 480 V AC

Features

▪ Arrow Hart® power lock devices are designed for safety by utilizing a spring loaded shutter on connectors and receptacles to completely isolate energized contact
▪ Spring-loaded safety shutter automatically ejects the plug if it has not been properly locked into the female device (receptacle or connector) which eliminates teasing the contacts and insures long-lasting performance
▪ Spring-loaded safety shutter helps to contain and extinguish arcs if the devices are accidentally unmated under load, providing a quicker disconnect and higher degree of safety for the user
▪ Spring-loaded safety shutter prevents the entrance of foreign matter in the female contact chamber and provides an IP30 finger-safe rating
▪ Amperage/voltage and configuration clearly marked on the device for easy identification of device capabilities

Resources

 Catalog Page
 Product Data Sheet
