nVent
AHE16X16X6 NEMA1 HNG CVR BOX HOFF

Mouse over image to zoom, click to enlarge

Description: nVent HOFFMAN Pull Box, Series: A90HC, 16 in Width, 6 in Depth, 16 in Height, NEMA 1/IP30, Butt Hinged Cover, (8) 3/4 to 1 in, (16) 1/2 to 3/4 in, (4) 1 to 1-1/4 in Knockout Cable Entry Size, Wall Mount, Steel, Polyester Powder Painted, Gray

Manufacturer PN: AHE16X16X6

UPC:  78351085920

Kendall Electric Inc PN: 2021146

Invoice Description:

AHE16X16X6 NEMA1 HNG CVR BOX HOFF


SPEC SHEET

How Can We Make This Page Better?

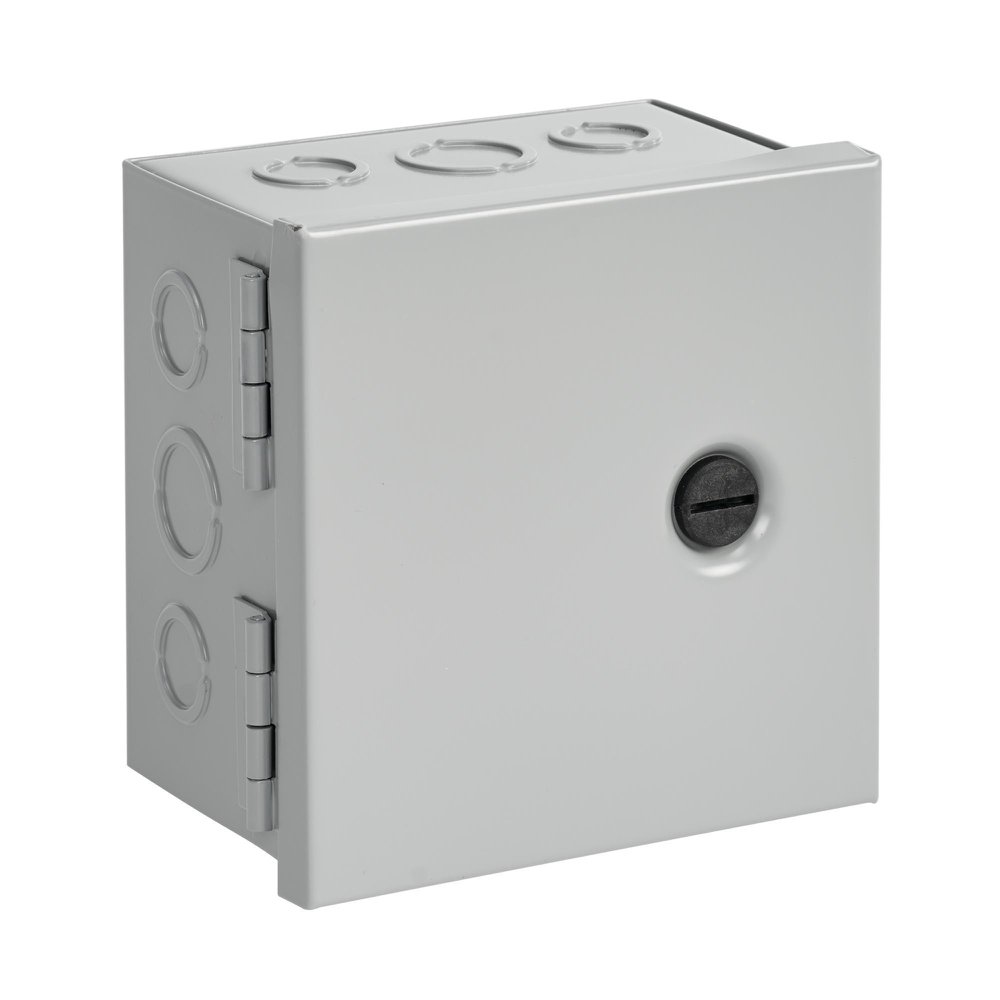

nVent HOFFMAN AHE16X16X6 A90HC Pull Box With Knockout, 16 in W x 6 in D x 16 in H, Butt Hinged Cover, NEMA 1/IP30, Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

These boxes feature a recessed, slotted flush latch for security as well as knockouts on all four sides, making them suitable for a wide variety of applications.
nVent HOFFMAN Pull Box, Series: A90HC, 16 in Width, 6 in Depth, 16 in Height, NEMA 1/IP30, Butt Hinged Cover, (8) 3/4 to 1 in, (16) 1/2 to 3/4 in, (4) 1 to 1-1/4 in Knockout Cable Entry Size, Wall Mount, Steel, Polyester Powder Painted, Gray

Specifications

 Brand Name nVent HOFFMAN
 Cable Entry Size (8) 3/4 to 1 in, (16) 1/2 to 3/4 in, (4) 1 to 1-1/4 in Knockout
 Color Gray
 Cover Type Butt Hinged
 Depth 6 in
 Finish Polyester Powder Painted
 Height 16 in
 Manufacturer Part Number AHE16X16X6
 Material Steel
 Mounting Type Wall
 NEMA Rating NEMA 1/IP30
 PART NUMBER KEYWORDS AHE16X16X6 ; 8320341 ; 783510859206 ; 78351085920 ; 00783510859206
 Series A90HC
 Standards/Approvals cUL Listed per CSA C22.2 File No. 40 File No. E27567|CSA File No. 42184|IEC 60529|UL 50|UL 50E File No. E27567|RoHS Compliant|REACH Compliant
 Width 16 in

Features

▪ Various sizes of easily removable concentric knockouts on all four sides
▪ Mounting holes on back of box
▪ Provision for grounding
▪ Butt hinges on door
