Eaton

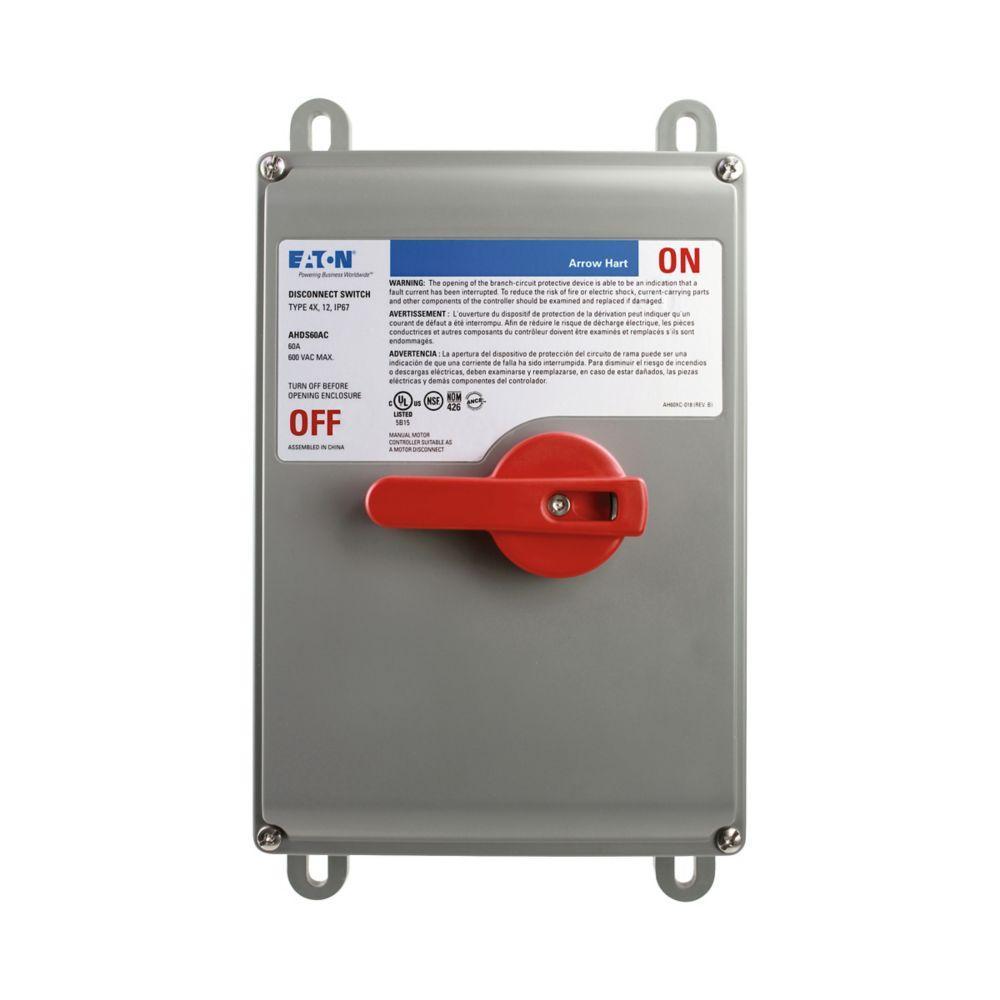

AHDS60 AH 60A DISCONNECT SWITCH

Mouse over image to zoom, click to enlarge

  • AHDS60 AH 60A DISCONNECT SWITCH
  • AHDS60 AH 60A DISCONNECT SWITCH

Description: EATON Eaton Wiring Devices Disconnect Switch, Non-Fusible, 600 V AC, 60 A, 20 hp, 3 Phase, 3 Pole, NEMA 4/4X/12/IP67 Enclosure, Flush Mounting, -58 to 140 deg F, 11 in L x 7-1/2 in W x 5-1/2 in H Dimensions, Thermoplastic

Manufacturer PN: AHDS60

UPC:  03266474135

Kendall Electric Inc PN: 3504896

Invoice Description:

AHDS60 AH 60A DISCONNECT SWITCH


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

EATON Eaton Wiring Devices AHDS60 Non-Fusible Disconnect Switch, 600 V AC, 60 A, 20 hp, 3 Poles

Log In for Pricing and Availability




Description

Additionally, our non-fused motor control disconnect switch and our new stainless-steel X-Switch are NSF listed for use in food processing. Offering flexible and economical designs for both fused and non-fused applications, Eaton’s Arrow Hart motor control disconnect switches are built for use in harsh industrial applications to address the needs of safety, reduced downtime and code compliance. Our industrial grade, electrical motor controls feature durable lever handles and switch mechanisms that will withstand repeated use in harsh environments, with NEMA Type 4X housings that can be padlocked to OHSA lockout/tagout 1910.147 requirements.
EATON Eaton Wiring Devices Disconnect Switch, Non-Fusible, 600 V AC, 60 A, 20 hp, 3 Phase, 3 Pole, NEMA 4/4X/12/IP67 Enclosure, Flush Mounting, -58 to 140 deg F, 11 in L x 7-1/2 in W x 5-1/2 in H Dimensions, Thermoplastic

Specifications

 Amperage Rating 60 A
 Application Industrial Manual Motor Controller Switch Applications
 Brand Name EATON
 Dimensions 11 in L x 7-1/2 in W x 5-1/2 in H
 Enclosure NEMA 4/4X/12/IP67
 Horsepower 20 hp
 Manufacturer Part Number AHDS60
 Material Thermoplastic
 Mounting Type Flush
 Number of Poles 3
 PART NUMBER KEYWORDS AHDS60 ; 13161874 ; 032664741357 ; 32664741357 ; 03266474135 ; 00032664741357
 Phase 3
 Standards/Approvals cULus Listed,RoHS Compliant
 Temperature Rating -58 to 140 deg F
 Type Non-Fusible
 Video Links
 Voltage Rating 600 V AC

Features

▪ Thermoplastic enclosure made from VALOX™ resin provides high impact strength and excellent corrosion resistance
▪ Adjustable mounting feet for flexible positioning options
▪ High visibility red handle can be padlocked to meet OSHA lockout tagout requirements
▪ Mounting feet have 2 options - flush mount or 1/4 in offset (for easy washdown behind the enclosure)
▪ Auxiliary contacts are available for PLC or VFD applications
▪ 14 to 4 AWG wire

Resources

 Catalog Page
 Product Data Sheet
