Eaton

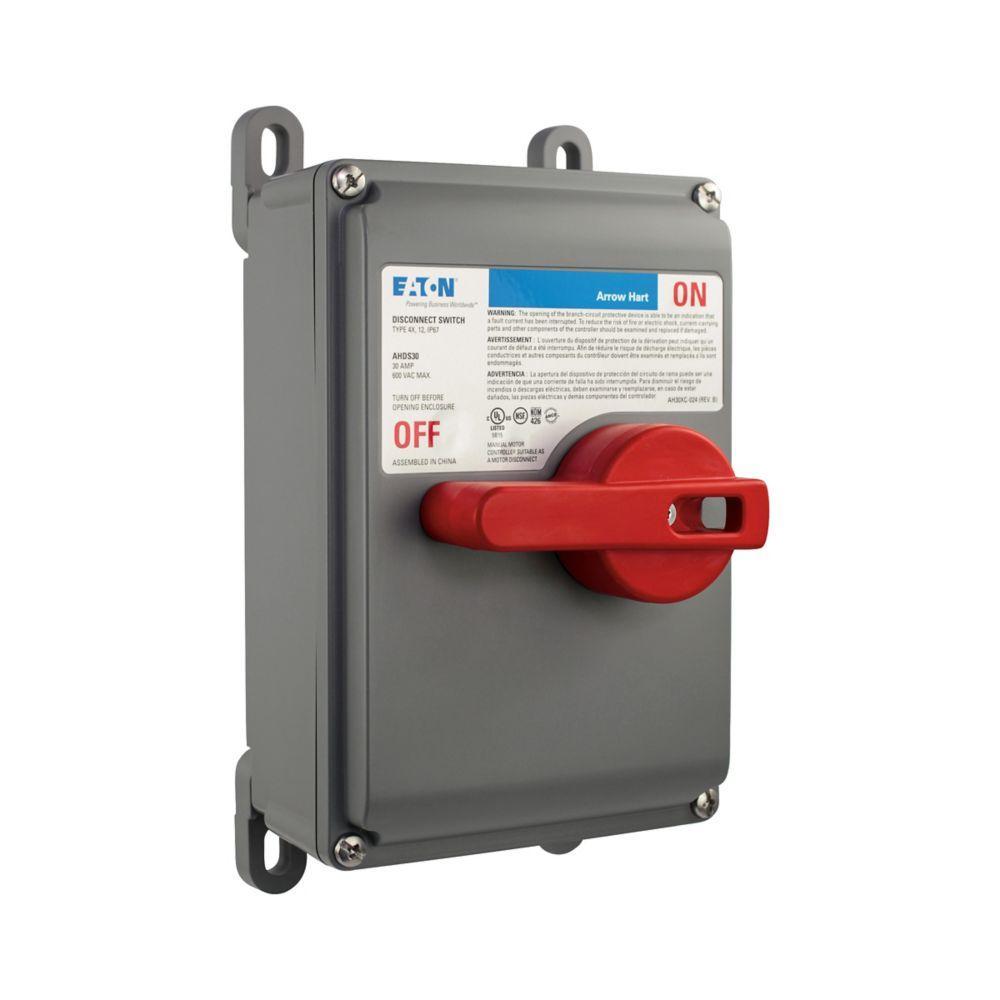

AHDS30 CWD 30A DISCONNECT SWITCH

Mouse over image to zoom, click to enlarge

  • AHDS30 CWD 30A DISCONNECT SWITCH
  • AHDS30 CWD 30A DISCONNECT SWITCH

Description: EATON Arrow Hart® Manual Motor Control Disconnect Switch, Non-Fusible, 600 V AC, 30 A, 10 hp, 3 Phase, 3 Poles, NEMA 4/4X/12/IP67, Flush Mount, -58 to 140 deg F, 8.75 in L x 5.68 in W x 5 in H, Thermoplastic

Manufacturer PN: AHDS30

UPC:  03266474132

Kendall Electric Inc PN: 3474595

Invoice Description:

AHDS30 CWD 30A DISCONNECT SWITCH


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

EATON Arrow Hart® AHDS30 Non-Fusible Manual Motor Control Disconnect Switch, 600 V AC, 30 A, 10 hp, 3 Poles

Log In for Pricing and Availability




Description

Additionally, our non-fused motor control disconnect switch and our new stainless-steel X-Switch are NSF listed for use in food processing. Offering flexible and economical designs for both fused and non-fused applications, Eaton’s Arrow Hart motor control disconnect switches are built for use in harsh industrial applications to address the needs of safety, reduced downtime and code compliance. Our industrial grade, electrical motor controls feature durable lever handles and switch mechanisms that will withstand repeated use in harsh environments, with NEMA Type 4X housings that can be padlocked to OHSA lockout/tagout 1910.147 requirements.
EATON Arrow Hart® Manual Motor Control Disconnect Switch, Non-Fusible, 600 V AC, 30 A, 10 hp, 3 Phase, 3 Poles, NEMA 4/4X/12/IP67, Flush Mount, -58 to 140 deg F, 8.75 in L x 5.68 in W x 5 in H, Thermoplastic

Specifications

 Amperage Rating 30 A
 Application Industrial Applications
 Brand Name EATON
 Dimensions 8.75 in L x 5.68 in W x 5 in H
 Enclosure NEMA 4/4X/12/IP67
 Horsepower 10 hp
 Manufacturer Part Number AHDS30
 Material Thermoplastic
 Mounting Type Flush
 Number of Poles 3
 PART NUMBER KEYWORDS AHDS30 ; 13161871 ; 032664741326 ; 32664741326 ; 03266474132 ; 00032664741326
 Phase 3
 Standards/Approvals cULus Listed|UL 60947-1/60947-14 File NO E135083|UL94 5VA Flammability Rating
 Temperature Rating -58 to 140 deg F
 Type 3-Pole Industrial
 Video Links
 Voltage Rating 600 V AC

Features

▪ Thermoplastic enclosure made from VALOX™ resin provides high impact strength and excellent corrosion resistance
▪ Adjustable mounting feet for flexible positioning options
▪ High visibility red handle can be padlocked to meet OSHA lockout/tagout requirements
▪ Mounting feet have 2 options - flush mount or 1/4 in offset (for easy washdown behind the enclosure)
▪ Auxiliary contacts are available for PLC or VFD applications
▪ 14 to 10 AWG wire
▪ Heavy duty industrial switches designed for long life
