Eaton

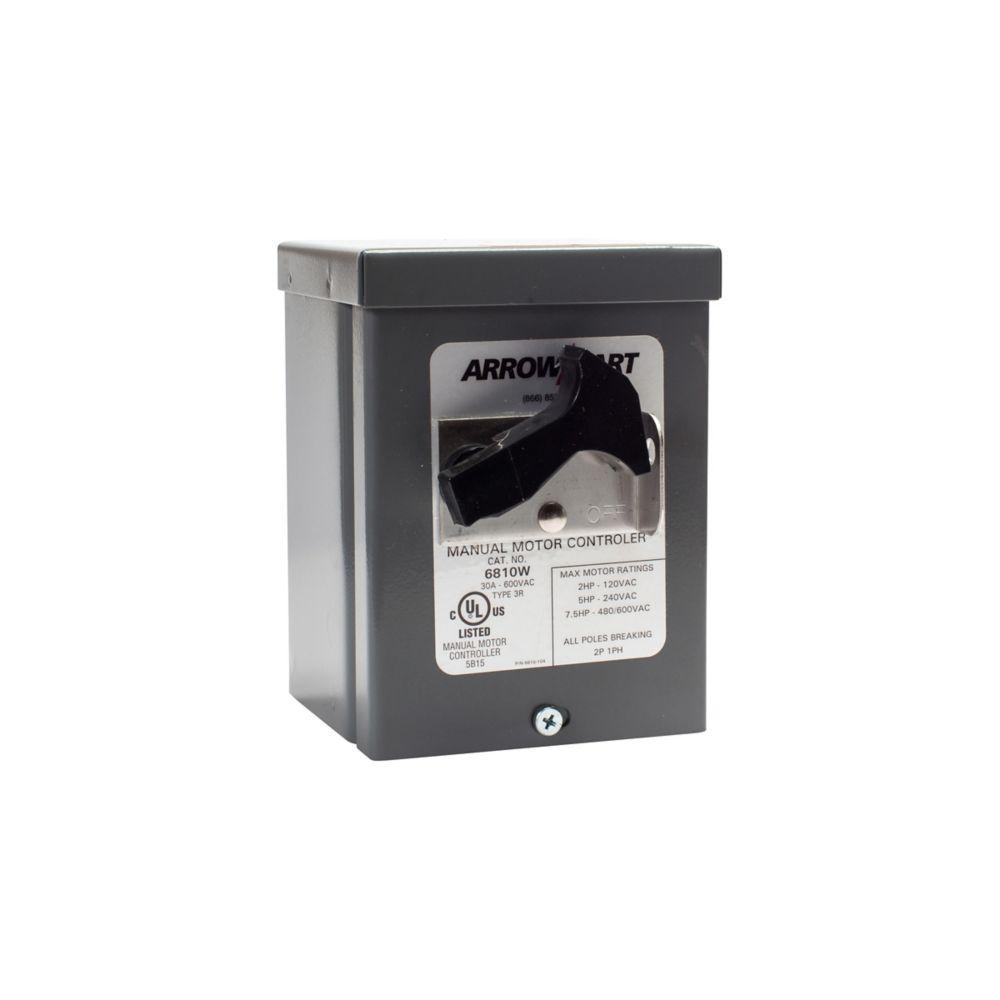

AH6810W CWD 2P 30A MAN CONT NEMA 3R

Mouse over image to zoom, click to enlarge

  • AH6810W CWD 2P 30A MAN CONT NEMA 3R
  • AH6810W CWD 2P 30A MAN CONT NEMA 3R

Description: EATON Arrow Hart Manual Motor Control Switch, 600 V AC, 30 A, 2 hp, 5 hp Power, DPST Contact Configuration, 30 A at 600 V AC Contact, 2 Pole, Maintained Action, Toggle Actuator, Back/Side Wired/Screw Connection, NEMA 1/3R Enclosure, Wall Mounting, Glass Filled Nylon, Environmental Conditions: -20 to 65 deg C Operating Temperature, 4-1/2 in L x 4 in W x 6 in H Dimensions

Manufacturer PN: AH6810W

UPC:  04089361686

Kendall Electric Inc PN: 2127321

Invoice Description:

AH6810W CWD 2P 30A MAN CONT NEMA 3R


SPEC SHEET

▸ See All in AC Motor Starting Switches


How Can We Make This Page Better?

EATON Arrow Hart AH6810W Manual Motor Control Switch, 600 V AC, 30 A, 2 hp, 5 hp Power Rating, DPST Contact

Log In for Pricing and Availability




Description

Eaton's Arrow Hart manual motor controllers offer compact, industrial-grade designs built to provide safe, reliable motor control performance in even the most rugged environments. They feature high-impact-resistant, glass-filled nylon construction; easy-to-read electrical ratings on rugged steel mounting straps; clear ON/OFF indicators on large, rugged toggles; distinct wire pockets and thick-wall arc barriers to contain strands; and screw-and-clamp or box-lug terminals to meet individual project requirements. Plus, two sets of contacts per pole distribute load and make/break action for long, reliable duty.
EATON Arrow Hart Manual Motor Control Switch, 600 V AC, 30 A, 2 hp, 5 hp Power, DPST Contact Configuration, 30 A at 600 V AC Contact, 2 Pole, Maintained Action, Toggle Actuator, Back/Side Wired/Screw Connection, NEMA 1/3R Enclosure, Wall Mounting, Glass Filled Nylon, Environmental Conditions: -20 to 65 deg C Operating Temperature, 4-1/2 in L x 4 in W x 6 in H Dimensions

Specifications

 Actuator Toggle
 Amperage Rating 30 A
 Application Industrial Facilities and Factories Facility applications
 Brand Name EATON
 Connection Back/Side Wired/Screw
 Contact Configuration DPST
 Contact Rating 30 A at 600 V AC
 Dimensions 4-1/2 in L x 4 in W x 6 in H
 Enclosure NEMA 1/3R
 Environmental Conditions -20 to 65 deg C Operating Temperature
 Manufacturer Part Number AH6810W
 Material Glass Filled Nylon
 Mounting Wall
 Number of Poles 2
 PART NUMBER KEYWORDS AH6810W ; 8207089 ; 040893616865 ; 40893616865 ; 04089361686 ; 00040893616865
 Power Rating 2 hp, 5 hp
 Standards/Approvals cULus Listed,RoHS Compliant,NAFTA
 Voltage Rating 600 V AC

Features

▪ Separate arc quenching chambers isolate each pole
▪ Front terminals are designed for easy wiring
▪ Compact design provides extra wiring room
▪ High impact-resistant, glass filled nylon construction
▪ Easy-to read electrical ratings on rugged steel mounting straps
▪ Highly visible On/Off markings on large, rugged toggles
▪ Distinct wire pockets and thick wall arc barriers prevent strands from straying
▪ 2-sets of contacts per pole distribute load and make/break action for long, reliable duty
▪ Totally enclosed body eliminates exposed contacts
▪ Cam and roll design provides dependable, trouble-free switch action
▪ Double break, silver alloy, butt type contacts provide long life
