Eaton

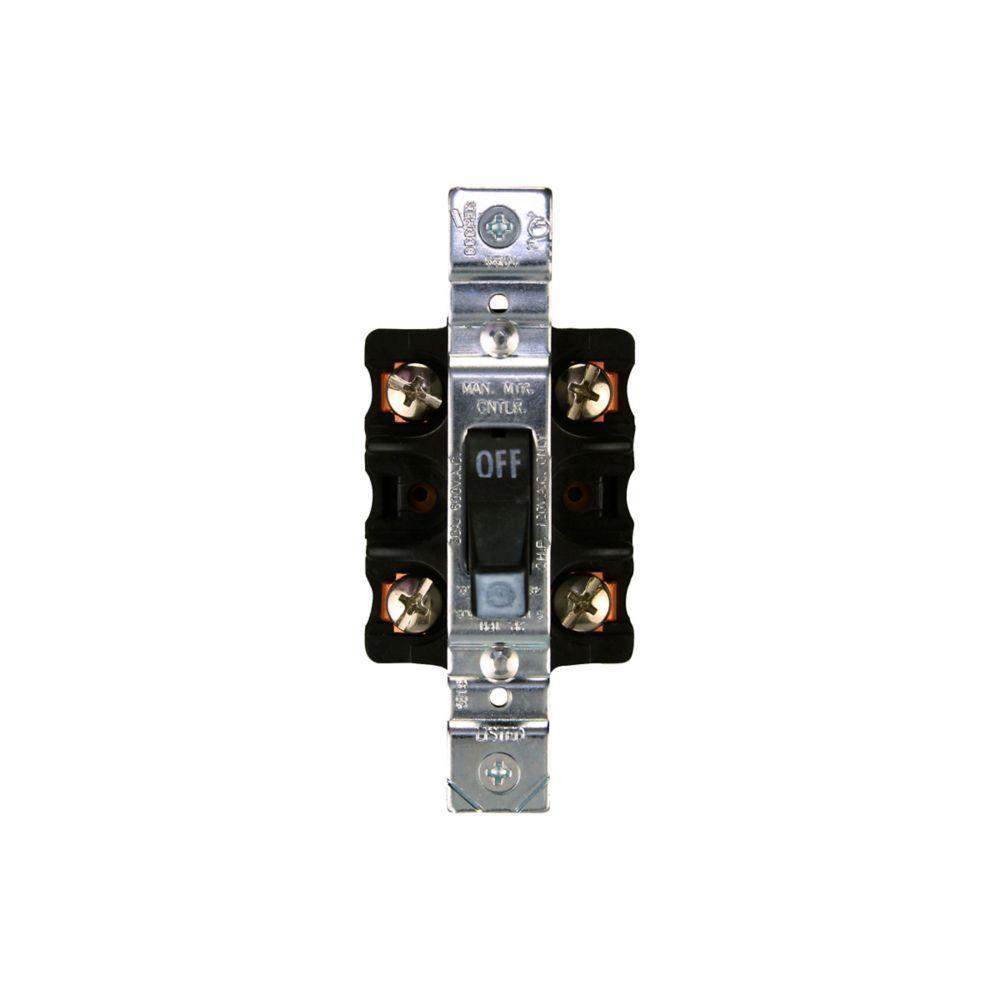

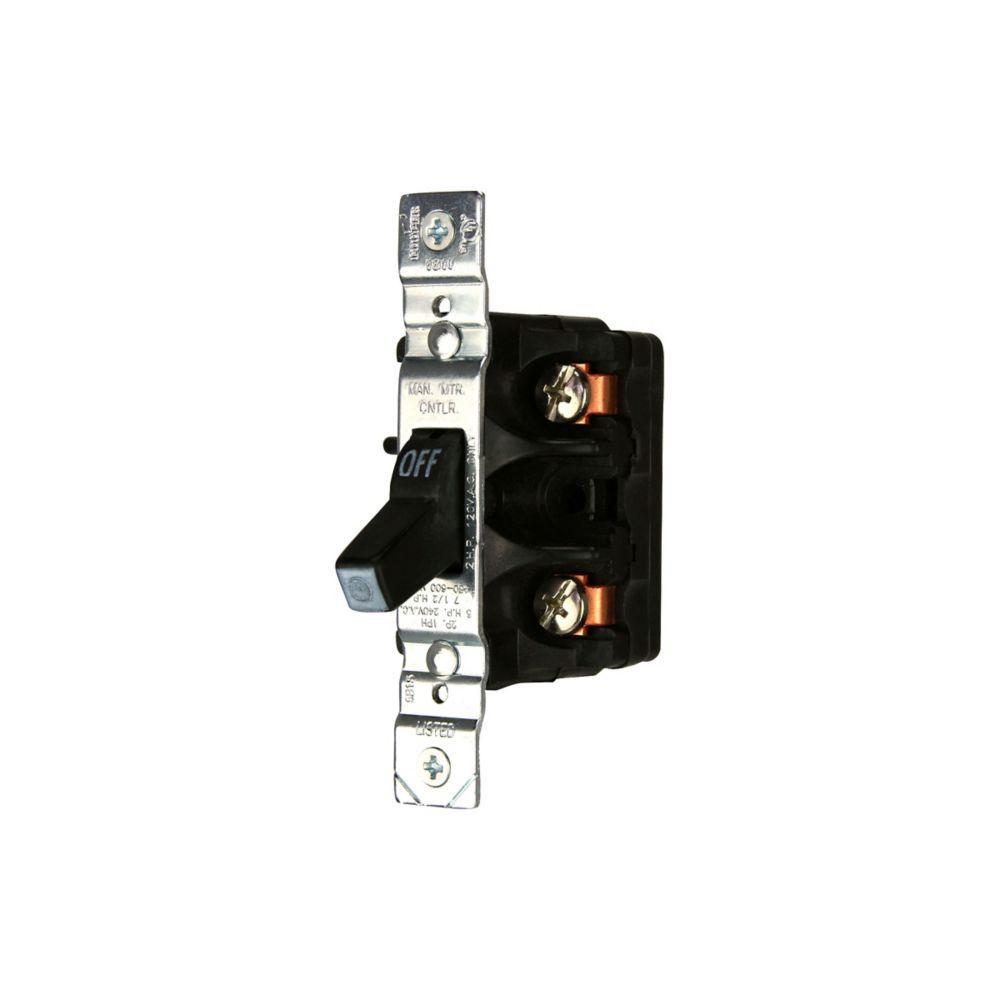

AH6810U CWD 30A 2P MANUAL CONTACTOR W/O OVERLOADS

Mouse over image to zoom, click to enlarge

  • AH6810U CWD 30A 2P MANUAL CONTACTOR W/O OVERLOADS
  • AH6810U CWD 30A 2P MANUAL CONTACTOR W/O OVERLOADS
  • AH6810U CWD 30A 2P MANUAL CONTACTOR W/O OVERLOADS

Description: EATON, AH6810U, Manual Motor Control Switch, 2-Position, 600 V AC, 30 A, 2 hp, 5 hp Power, DPST Contact Configuration, 30 A at 600 V AC Contact, 2 Pole, Maintained Action, Front Wired/Screw Connection, NEMA 3/7/9 Enclosure, Panel Mounting, Glass Filled Nylon, Black, 3.81 in H x 1.69 in W x 1.75 in D Dimensions

Manufacturer PN: AH6810U

UPC:  04089361685

Kendall Electric Inc PN: 18890

Invoice Description:

AH6810U CWD 30A 2P MANUAL CONTACTOR W/O OVERLOADS


SPEC SHEET

▸ See All in AC Motor Starting Switches


How Can We Make This Page Better?

EATON AH6810U 2-Position Manual Motor Control Switch, 600 V AC, 30 A, 2 hp, 5 hp Power Rating, DPST Contact

Log In for Pricing and Availability




Description

Eaton's Arrow Hart manual motor controllers offer compact, industrial-grade designs built to provide safe, reliable motor control performance in even the most rugged environments. They feature high-impact-resistant, glass-filled nylon construction; easy-to-read electrical ratings on rugged steel mounting straps; clear ON/OFF indicators on large, rugged toggles; distinct wire pockets and thick-wall arc barriers to contain strands; and screw-and-clamp or box-lug terminals to meet individual project requirements. Plus, two sets of contacts per pole distribute load and make/break action for long, reliable duty.
EATON, AH6810U, Manual Motor Control Switch, 2-Position, 600 V AC, 30 A, 2 hp, 5 hp Power, DPST Contact Configuration, 30 A at 600 V AC Contact, 2 Pole, Maintained Action, Front Wired/Screw Connection, NEMA 3/7/9 Enclosure, Panel Mounting, Glass Filled Nylon, Black, 3.81 in H x 1.69 in W x 1.75 in D Dimensions

Specifications

 Actuator Maintained
 Amperage Rating 30 A
 Application Industrial Applications
 Brand Name EATON
 Color Black
 Connection Front Wired/Screw
 Contact Configuration DPST
 Contact Rating 30 A at 600 V AC
 Dimensions 3.81 in H x 1.69 in W x 1.75 in D
 Enclosure NEMA 3/7/9
 Manufacturer Part Number AH6810U
 Material Glass Filled Nylon
 Mounting Panel
 Number of Poles 2
 PART NUMBER KEYWORDS AH6810U ; 8207079 ; 040893616858 ; 40893616858 ; 04089361685 ; 00040893616858
 Power Rating 2 hp, 5 hp
 Standards/Approvals cULus Listed,RoHS Compliant,NAFTA
 Type 2-Position
 Voltage Rating 600 V AC

Features

▪ Separate arc quenching chambers isolate each pole
▪ Front terminals are designed for easy wiring
▪ 10 AWG wire
▪ Compact design provides extra wiring room
▪ High impact-resistant, glass filled nylon construction
▪ Easy-to read electrical ratings on rugged steel mounting straps
▪ Highly visible ON/OFF markings on large, rugged toggles
▪ Distinct wire pockets and THK wall arc barriers prevent strands from straying
▪ 2-sets of contacts per pole distribute load and make/break action for long, reliable duty
▪ Totally enclosed body eliminates exposed contacts
▪ Cam and roll design provides dependable, trouble-free switch action
▪ Double break, silver alloy, butt type contacts provide long life
