Eaton

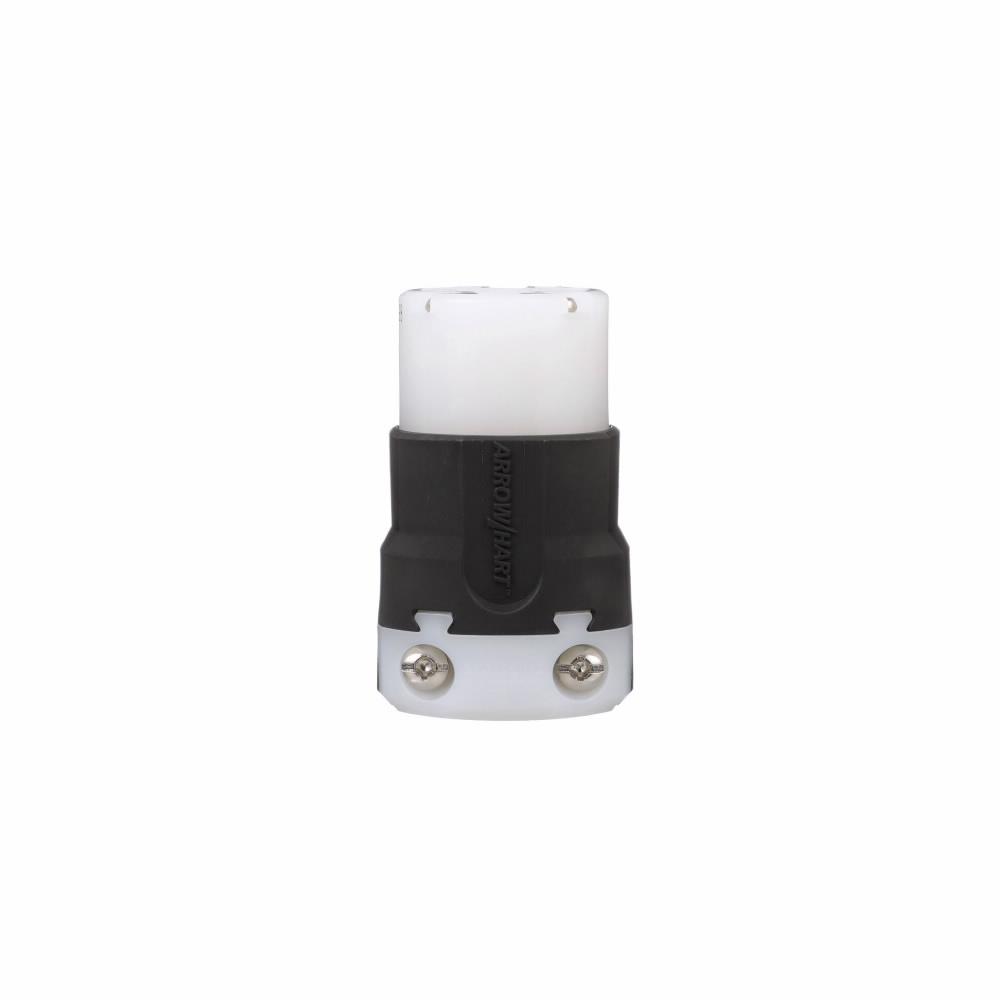

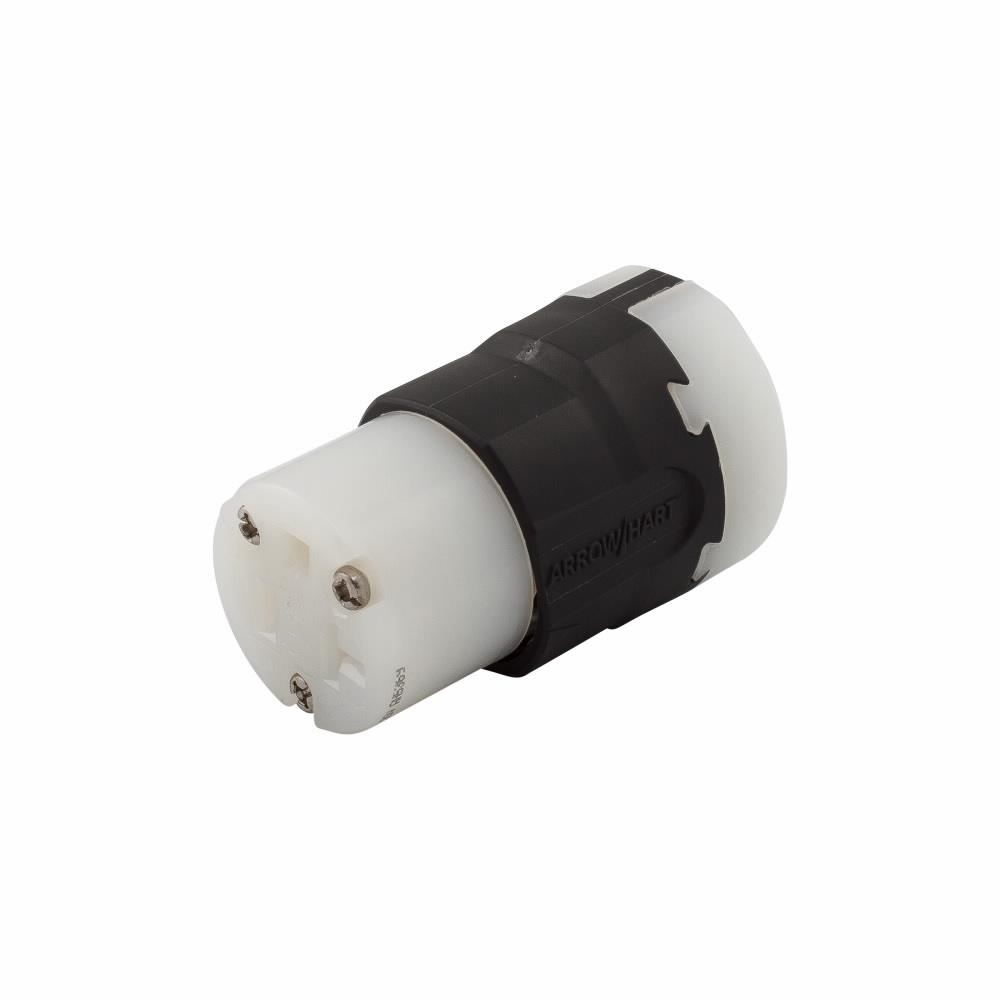

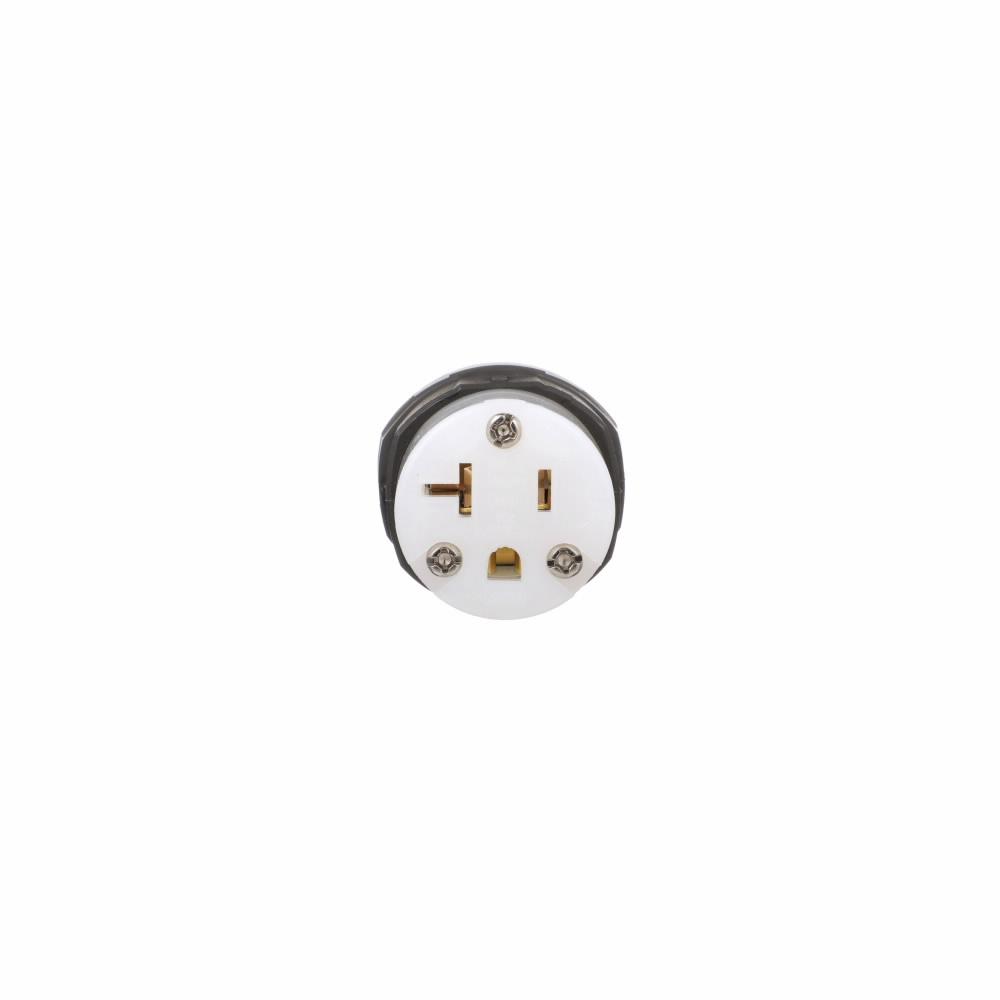

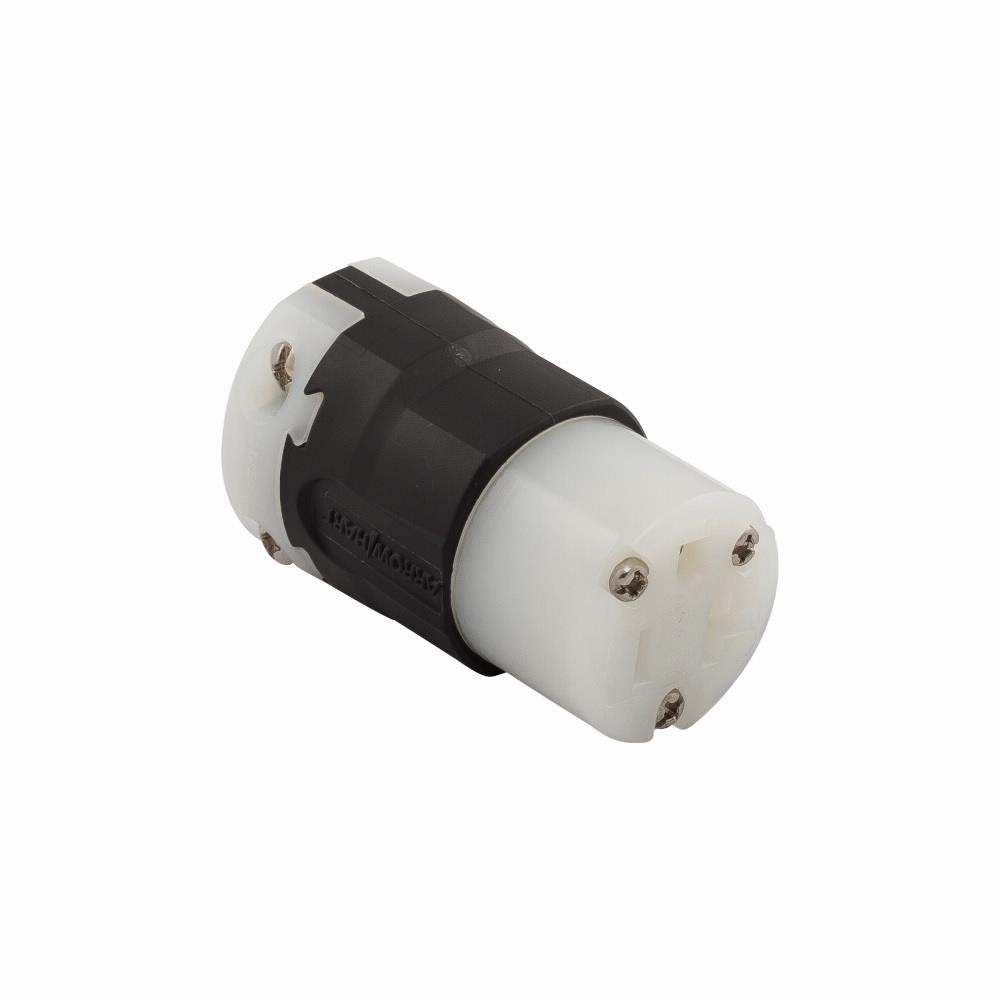

AH5369 CWD CONN 20A 125V 2P3W STR BW

Mouse over image to zoom, click to enlarge

  • AH5369 CWD CONN 20A 125V 2P3W STR BW
  • AH5369 CWD CONN 20A 125V 2P3W STR BW
  • AH5369 CWD CONN 20A 125V 2P3W STR BW
  • AH5369 CWD CONN 20A 125V 2P3W STR BW
  • AH5369 CWD CONN 20A 125V 2P3W STR BW

Description: EATON Ultra Grip™ Straight Blade Connector, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.37 in W Tip 2 Tip x 1.5 Base x 20.6 in L Dimensions

Manufacturer PN: AH5369

UPC:  03266473756

Kendall Electric Inc PN: 3292732

Invoice Description:

AH5369 CWD CONN 20A 125V 2P3W STR BW


SPEC SHEET

▸ See All in Straight Blade Connectors


How Can We Make This Page Better?

EATON Ultra Grip™ AH5369 Straight Blade Connector, 125 V, 20 A, 2 Poles, 3 Wires, Black

Log In for Pricing and Availability




Description

Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability. A dual dovetail design provides superior cord grip retention, and the grommet allows usage across a wide range of cord diameters. Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords.
EATON Ultra Grip™ Straight Blade Connector, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.37 in W Tip 2 Tip x 1.5 Base x 20.6 in L Dimensions

Specifications

 Amperage Rating 20 A
 Application Industrial
 Brand Name EATON
 Color Black
 Cord Diameter 0.33 to 0.66 in
 Dimensions 1.37 in W Tip 2 Tip x 1.5 Base x 20.6 in L
 Grade Industrial
 Manufacturer Part Number AH5369
 Material Nylon
 NEMA Rating NEMA 5-20P
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS AH5369 ; 12260991 ; 032664737565 ; 32664737565 ; 03266473756 ; 00032664737565
 Standards/Approvals Federal Specification 6221 02|NOM Certified|UL Listed
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type Connector
 Video Links
 Voltage Rating 125 V

Features

▪ Polycarbonate terminal retainer

Resources

 Catalog Page
 Product Data Sheet
