Eaton

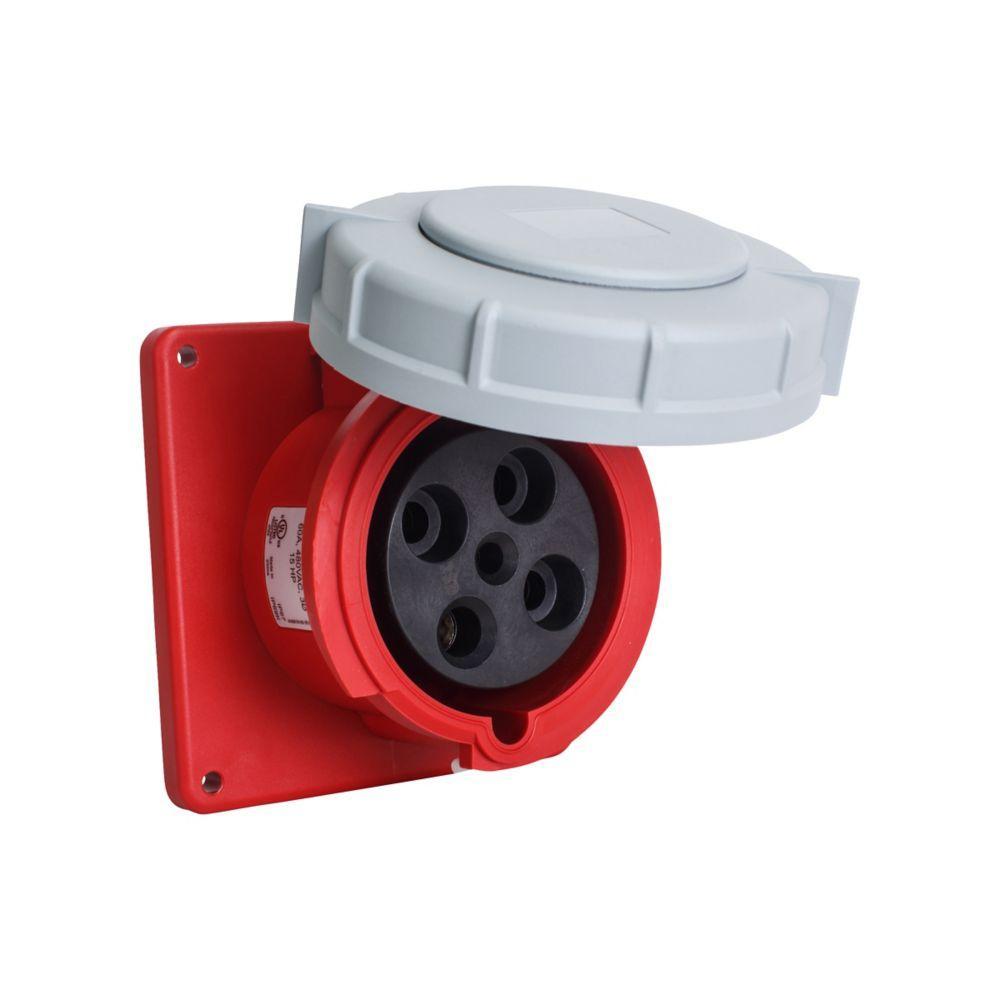

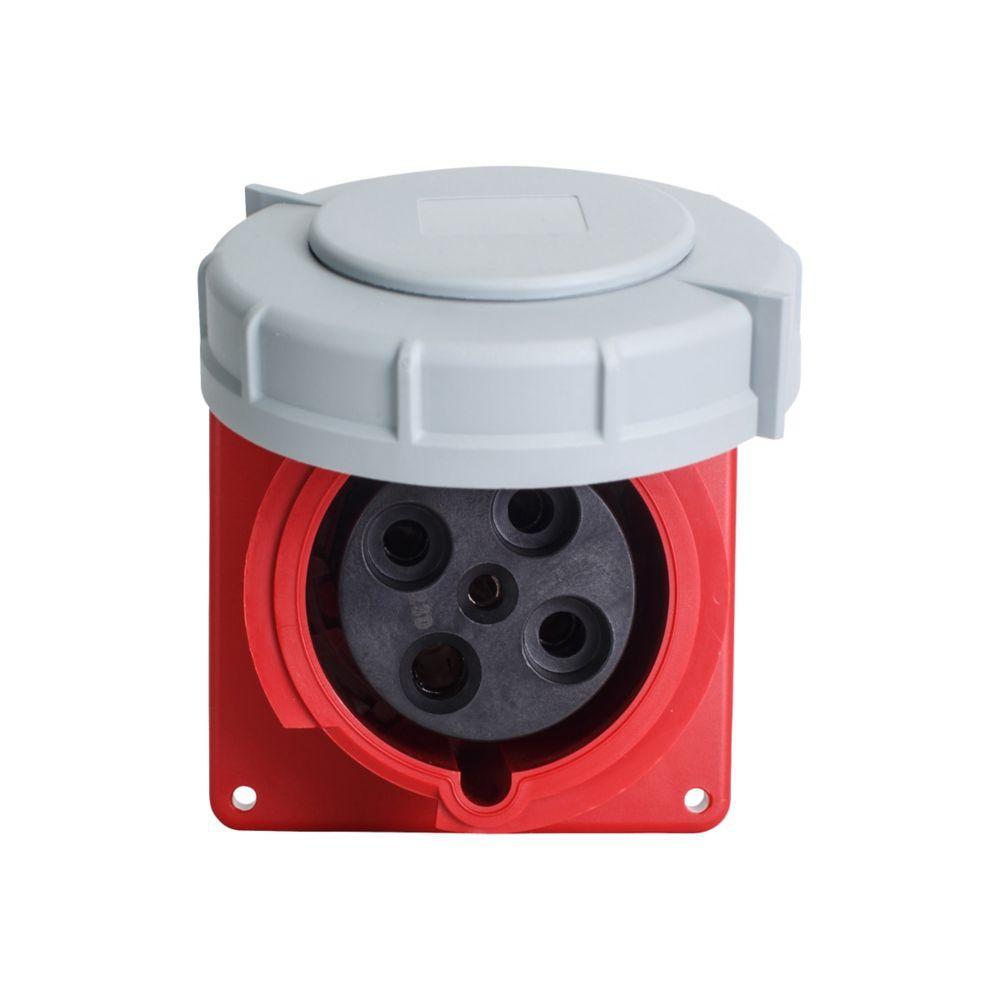

AH460R7W CWD RECP PIN & SLEEVE 60A 480V 3PH 3P4W WT RD

Mouse over image to zoom, click to enlarge

  • AH460R7W CWD RECP PIN & SLEEVE 60A 480V 3PH 3P4W WT RD
  • AH460R7W CWD RECP PIN & SLEEVE 60A 480V 3PH 3P4W WT RD
  • AH460R7W CWD RECP PIN & SLEEVE 60A 480V 3PH 3P4W WT RD

Description: EATON Arrow Hart™ Eaton Wiring Devices Pin and Sleeve Receptacle, 3-Phase Watertight, 3 kV AC, 60 A, 15 hp, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -30 to 86 deg F, Screw Terminal, Thermoplastic, Red, 4.45 in Dia x 9.26 in L Dimensions

Manufacturer PN: AH460R7W

UPC:  04089361991

Kendall Electric Inc PN: 2970009

Invoice Description:

AH460R7W CWD RECP PIN & SLEEVE 60A 480V 3PH 3P4W WT RD


SPEC SHEET

▸ See All in Pin & Sleeve Receptacles


How Can We Make This Page Better?

EATON Arrow Hart™ Eaton Wiring Devices AH460R7W 3-Phase Watertight Pin and Sleeve Receptacle, 3 kV AC, 60 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON Arrow Hart™ Eaton Wiring Devices Pin and Sleeve Receptacle, 3-Phase Watertight, 3 kV AC, 60 A, 15 hp, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -30 to 86 deg F, Screw Terminal, Thermoplastic, Red, 4.45 in Dia x 9.26 in L Dimensions

Specifications

 Amperage Rating 60 A
 Brand Name EATON
 Color Red
 Dimensions 4.45 in Dia x 9.26 in L
 Enclosure IP67/IP69K
 Grade Industrial
 Horsepower 15 hp
 Manufacturer Part Number AH460R7W
 Material Thermoplastic
 Number of Poles 3
 Number of Wires 4
 Standards/Approvals IEC 60309|UL Listed
 Temperature Rating -30 to 86 deg F
 Terminal Type Screw
 Type 3-Phase Watertight
 Video Links
 Voltage Rating 3 kV AC

Features

▪ Maximum 86 deg f (30 deg C) after 50 cycles of overload at 150% of rated current
▪ Nickel plated pins and contacts offer long-life corrosion protection
▪ Spring-loaded self-closing cap with silicone gasket protects contacts when not in-use
▪ Rugged materials selected for use in wet locations, provides corrosion-resistance
▪ Standard mounting footprints and blind holes provide interchangeability with major brands
▪ Individual silicone sealing grommets with cord diameter range makes for faster, easier assembly
▪ Inlet and receptacle mounting footprint and blind holes provide interchangeability with major brands
▪ Nylon-insulated
▪ Impact-resistant thermoplastic insulation
▪ Receptacle knockout
