Eaton

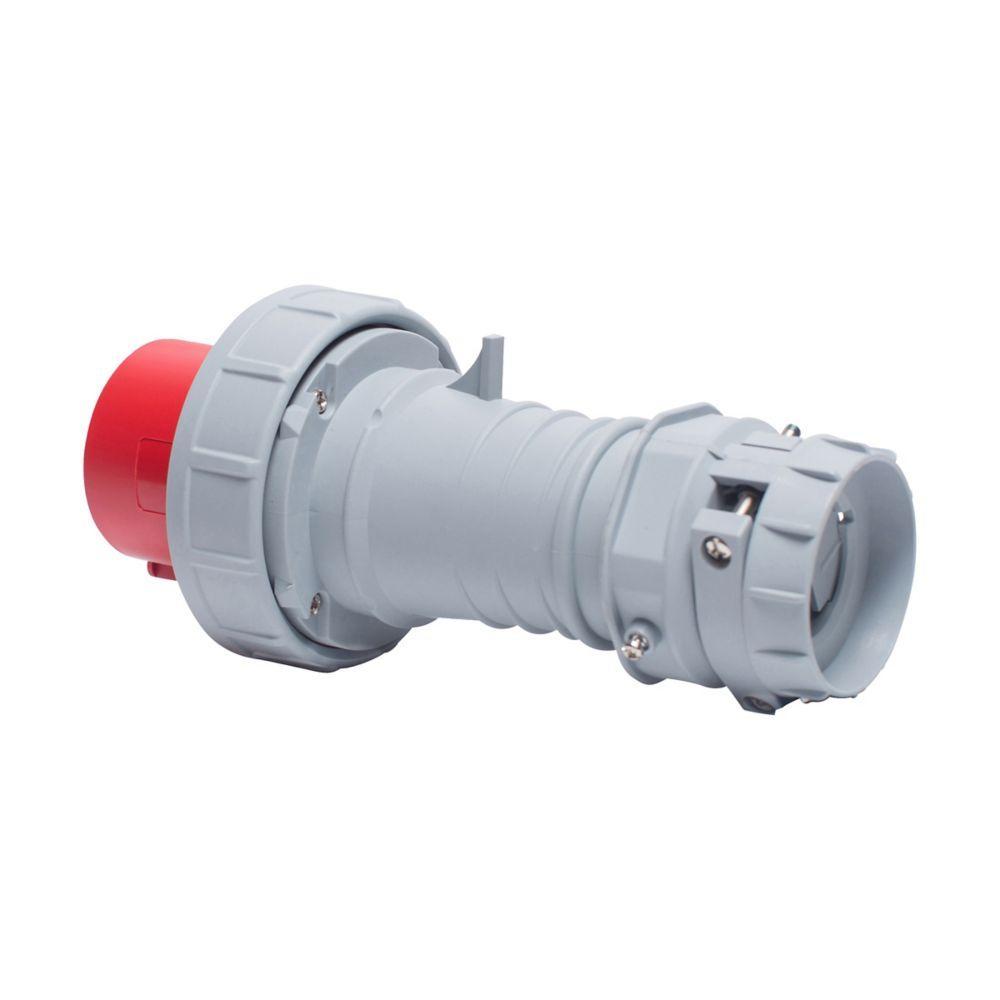

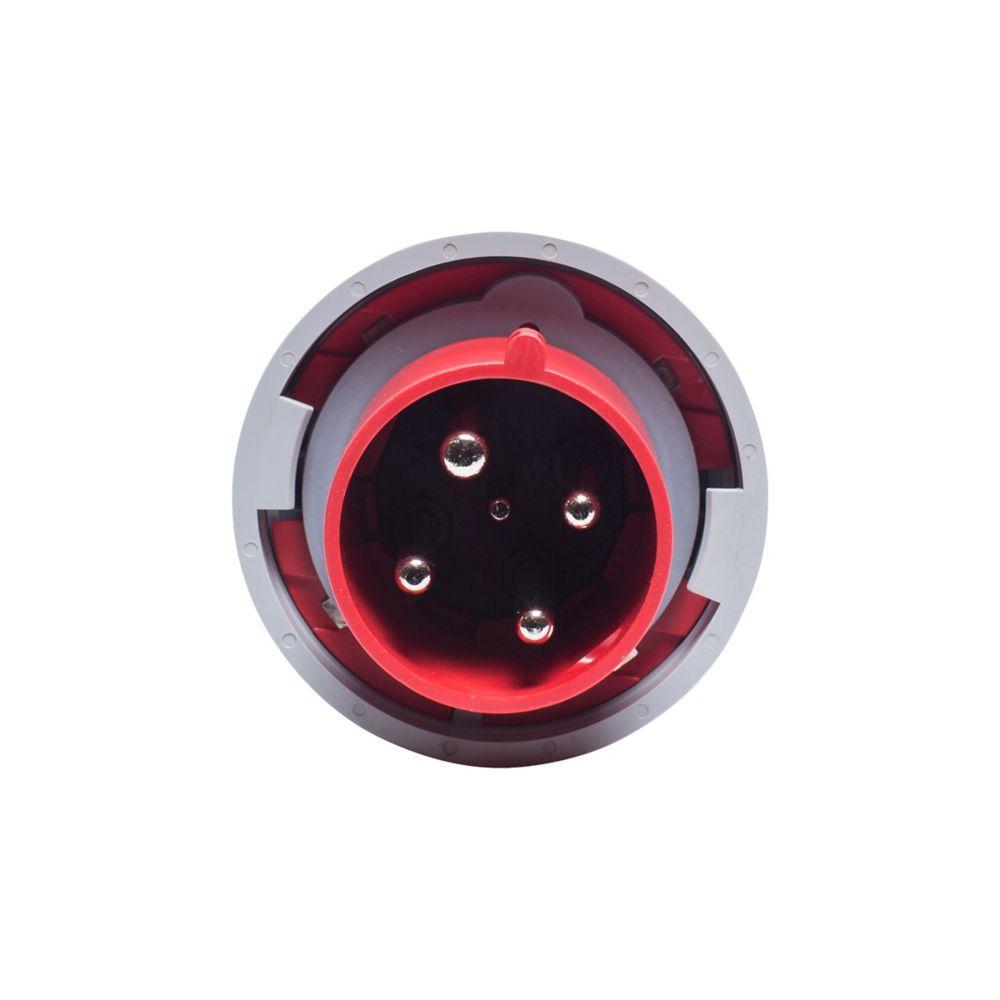

AH460P7W CWD PLUG PIN & SLEEVE 60A 480V 3PH 3P4W WT RD

Mouse over image to zoom, click to enlarge

  • AH460P7W CWD PLUG PIN & SLEEVE 60A 480V 3PH 3P4W WT RD
  • AH460P7W CWD PLUG PIN & SLEEVE 60A 480V 3PH 3P4W WT RD
  • AH460P7W CWD PLUG PIN & SLEEVE 60A 480V 3PH 3P4W WT RD

Description: EATON Arrow Hart™ Eaton Wiring Devices Arrow Hart Pin and Sleeve Plug, 3-Phase Watertight, 480 V AC, 60 A, 15 hp, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, 86 deg F, Screw Terminal, Thermoplastic, Red, 4.45 in Dia x 9.26 in L Dimensions

Manufacturer PN: AH460P7W

UPC:  03266473247

Kendall Electric Inc PN: 18729

Invoice Description:

AH460P7W CWD PLUG PIN & SLEEVE 60A 480V 3PH 3P4W WT RD


SPEC SHEET

▸ See All in Pin & Sleeve Plugs


How Can We Make This Page Better?

EATON Arrow Hart™ Eaton Wiring Devices AH460P7W 3-Phase Watertight Arrow Hart Pin and Sleeve Plug, 480 V AC, 60 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability




Description

Pin and sleeve devices feature sturdy nylon construction, rugged design with corrosion-resistant components for lasting electrical performance. Watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.
EATON Arrow Hart™ Eaton Wiring Devices Arrow Hart Pin and Sleeve Plug, 3-Phase Watertight, 480 V AC, 60 A, 15 hp, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, 86 deg F, Screw Terminal, Thermoplastic, Red, 4.45 in Dia x 9.26 in L Dimensions

Specifications

 Amperage Rating 60 A
 Application Industrial Applications
 Brand Name EATON
 Color Red
 Dimensions 4.45 in Dia x 9.26 in L
 Enclosure IP67/IP69K
 Grade Industrial
 Horsepower 15 hp
 Manufacturer Part Number AH460P7W
 Material Thermoplastic
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS AH460P7W ; 12072914 ; 032664732478 ; 32664732478 ; 03266473247 ; 00032664732478
 Standards/Approvals cRUus
 Temperature Rating 86 deg F
 Terminal Type Screw
 Type 3-Phase Watertight
 Video Links
 Voltage Rating 480 V AC

Features

▪ Maximum 86 deg f (30 deg C) after 50 cycles of overload at 150% of rated current
▪ 0.66 to 1.5 in Dia cord
▪ 1-1/2 in NPT threaded entry
▪ Nickel plated pins and contacts offer long-life corrosion protection
▪ Plugs have a lockout hole for added safety
▪ Individual silicone sealing grommets with cord diameter indication provide for faster and easier assembly
▪ Tri-combo hardware for convenience
▪ Threaded NPT cable entry provides an efficient means of attaching flexible conduit or wire mesh grips
▪ Inlet and receptacle mounting footprint and blind holes provide interchangeability with major brands
▪ Impact-resistant thermoplastic insulation
▪ Cable mounting
▪ 3000 vac dielectric voltage
