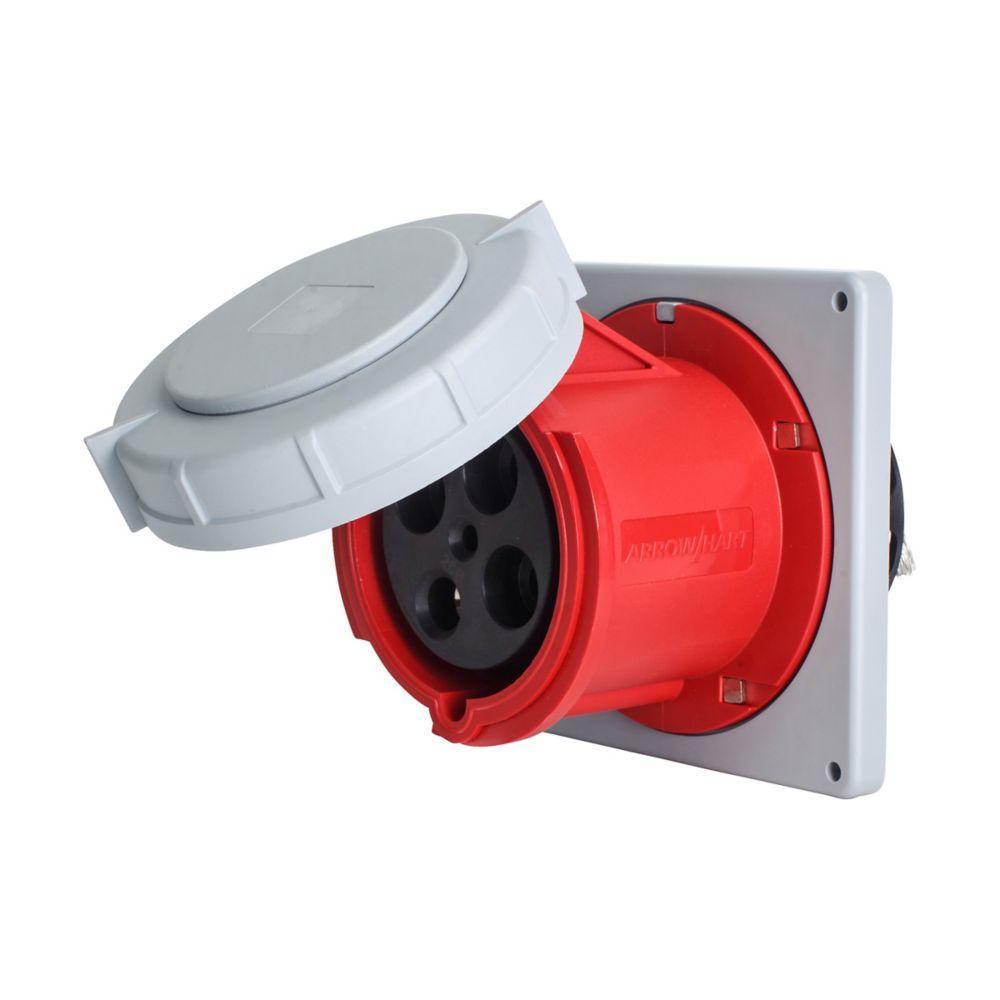

AH4100R7W CWD WP PIN/SLEEVE RCPT. 3P4W 100A 480V 3 PHASE

Mouse over image to zoom, click to enlarge

  • AH4100R7W CWD WP PIN/SLEEVE RCPT. 3P4W 100A 480V 3 PHASE
  • AH4100R7W CWD WP PIN/SLEEVE RCPT. 3P4W 100A 480V 3 PHASE

Description: EATON Arrow Hart® Pin and Sleeve Receptacle, 3-Phase Grounding Watertight, 480 V AC, 100 A, 20 hp, 3 Poles, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, 86 deg F, Plug/Screw Terminal, Nylon/Thermoplastic, Red, 5-1/2 in H x 5-1/2 in W

Manufacturer PN: AH4100R7W

UPC:  03266473214

Kendall Electric Inc PN: 18694

Invoice Description:

AH4100R7W CWD WP PIN/SLEEVE RCPT. 3P4W 100A 480V 3 PHASE


SPEC SHEET

How Can We Make This Page Better?

EATON Arrow Hart® AH4100R7W 3-Phase Grounding Watertight Pin and Sleeve Receptacle, 480 V AC, 100 A, 3 Poles, 4 Wires, Red

Log In for Pricing and Availability




Description

Pin and sleeve devices feature sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance. Watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.
EATON Arrow Hart® Pin and Sleeve Receptacle, 3-Phase Grounding Watertight, 480 V AC, 100 A, 20 hp, 3 Poles, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, 86 deg F, Plug/Screw Terminal, Nylon/Thermoplastic, Red, 5-1/2 in H x 5-1/2 in W

Specifications

 Amperage Rating 100 A
 Application IEC Pin and Sleeve Industrial Applications
 Brand Name EATON
 Color Red
 Dimensions 5-1/2 in H x 5-1/2 in W
 Enclosure IP67
 Grade Industrial
 Horsepower 20 hp
 Manufacturer Part Number AH4100R7W
 Material PA66 Nylon
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS AH4100R7W ; 12072931 ; 032664732140 ; 32664732140 ; 03266473214 ; 00032664732140
 Standards/Approvals cRUus
 Temperature Rating 30 deg C
 Terminal Type Screw
 Type Watertight
 Video Links
 Voltage Rating 480 V AC

Features

▪ Nickel plated spring steel contacts and cover spring
▪ Silicon rubber cover and flange gasket
▪ Nickel plated steel terminal screws
▪ Stainless steel assembly screws
▪ Nylon face insulation
▪ Impact resistant thermoplastic cable
▪ Spring loaded self-closing cap with silicon gasket protects contacts when not in use
▪ Rugged materials selected for use in wet locations, provides corrosion resistance
▪ Standard mounting footprints and blind holes provide interchangeability with major brands
▪ Individual silicon sealing grommets with cord diameter range makes for faster, easier assembly
▪ Nickel plated pins and contacts offer long life corrosion protection
▪ Inlet and receptacle mounting footprint and blind holes provide interchangeability with major brands
▪ 3000 VAC dielectric voltage
▪ 600 VAC maximum working voltage
▪ Nickel plated brass sleeve
