Eaton

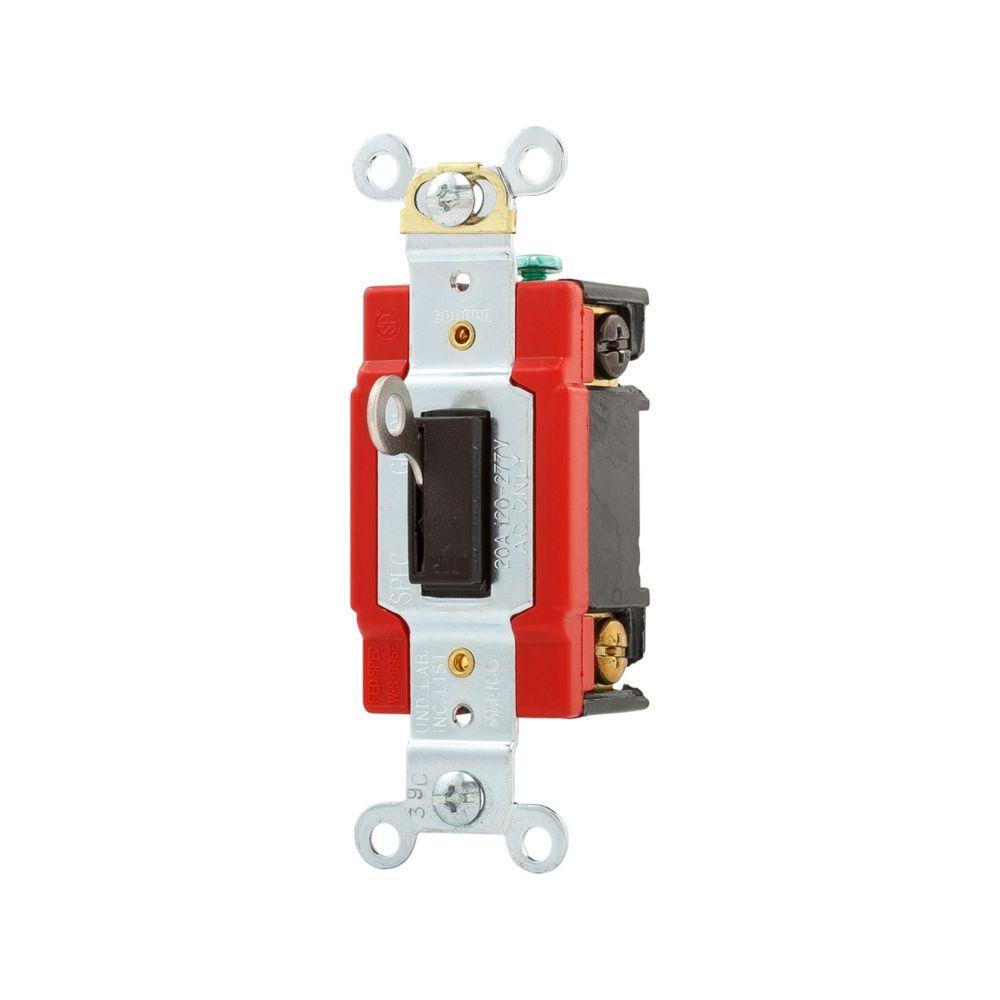

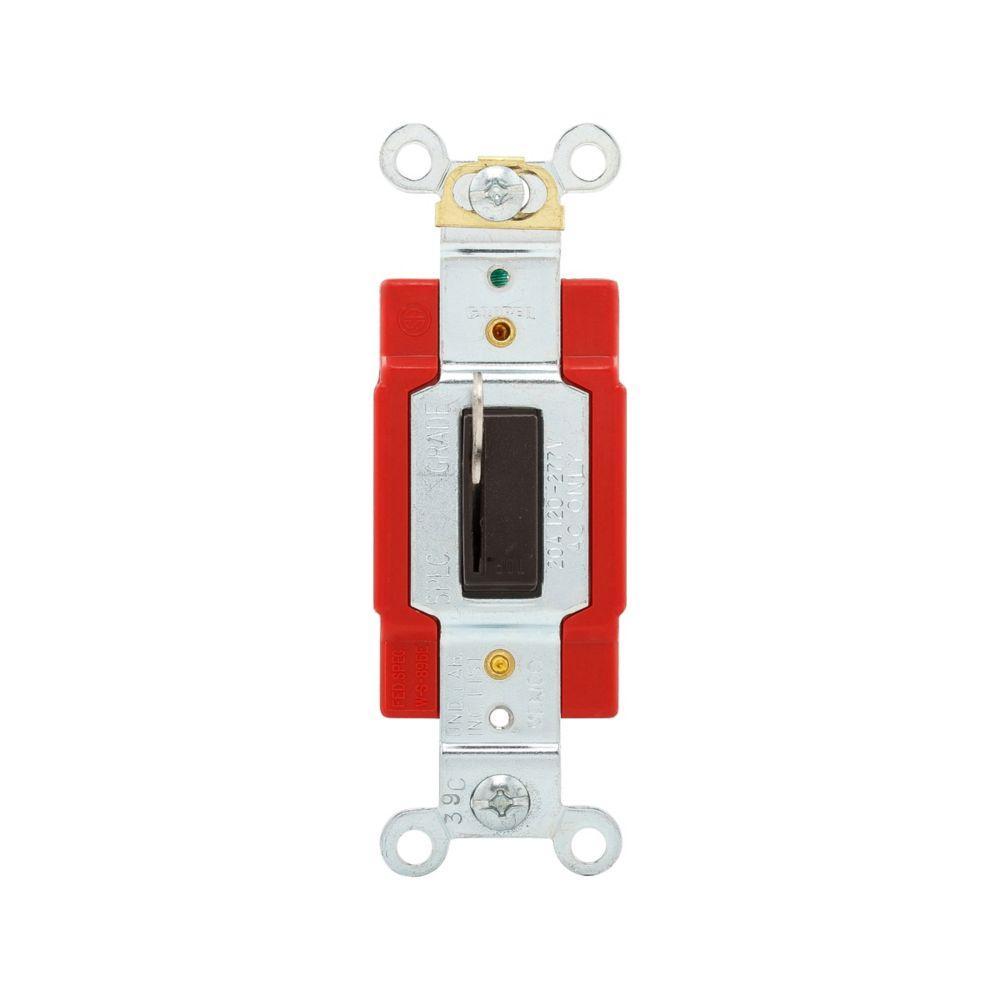

AH1223L CWD SW LKG 3WAY 20A 120/277V AUTOGRD B&S BR

Mouse over image to zoom, click to enlarge

  • AH1223L CWD SW LKG 3WAY 20A 120/277V AUTOGRD B&S BR
  • AH1223L CWD SW LKG 3WAY 20A 120/277V AUTOGRD B&S BR
  • AH1223L CWD SW LKG 3WAY 20A 120/277V AUTOGRD B&S BR

Description: EATON Arrow Hart AC Locking Switch, 3-Way Auto Ground, 120/277 V AC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 V AC Contact, Key Operated Actuator, Back/Side Wired/Screw Connection, Wall Mounting, Phenolic/Urea, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 2.4 in L x 1.31 in W x 1.05 in D Dimensions

Manufacturer PN: AH1223L

UPC:  03266470633

Kendall Electric Inc PN: 2705510

Invoice Description:

AH1223L CWD SW LKG 3WAY 20A 120/277V AUTOGRD B&S BR


SPEC SHEET

▸ See All in Locking Switches


How Can We Make This Page Better?

EATON Arrow Hart AH1223L 3-Way Auto Ground AC Locking Switch, 120/277 V AC, 20 A, 1 hp, 2 hp Power Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Arrow Hart broad line of extra heavy-duty industrial grade switches feature superior engineering, reliable performance and ease of installation. Available in toggle, lighted, pilot light, Corbin and locking versions.
EATON Arrow Hart AC Locking Switch, 3-Way Auto Ground, 120/277 V AC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 V AC Contact, Key Operated Actuator, Back/Side Wired/Screw Connection, Wall Mounting, Phenolic/Urea, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 2.4 in L x 1.31 in W x 1.05 in D Dimensions

Specifications

 Actuator Key Operated
 Amperage Rating 20 A
 Application Industrial Switch, Industrial Facilities and Factories Facility Applications
 Brand Name EATON
 Color Brown
 Connection Back/Side Wired/Screw
 Contact Rating 20 A at 120/277 V AC
 Dimensions 2.4 in L x 1.31 in W x 1.05 in D
 Environmental Conditions -20 to 60 deg C Operating Temperature
 Manufacturer Part Number AH1223L
 Material Phenolic/Urea
 Mounting Wall
 PART NUMBER KEYWORDS AH1223L ; 10725064 ; 032664706332 ; 32664706332 ; 03266470633 ; 00032664706332
 Power Rating 1 hp, 2 hp
 Standards/Approvals cULus Listed,UL Recognized,NAFTA
 Type 3-Way Auto Ground
 Video Links
 Voltage Rating 120/277 V AC

Features

▪ Lighted version toggle glows when in the off position
▪ Color-coded faces identify amperage

Resources

 Catalog Page
 Product Data Sheet
