Eaton

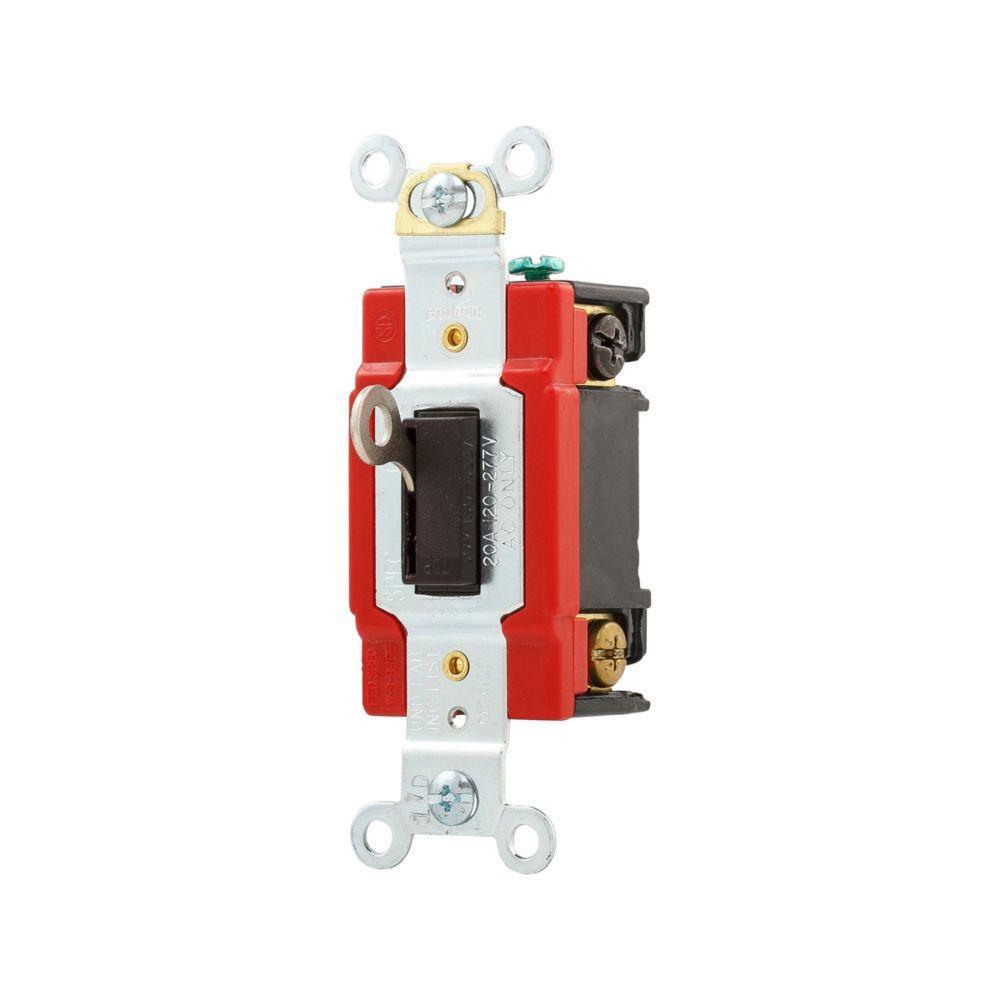

AH1221L CWD SW LKG SP 20A 120/277V AUTOGRD B&S BR

Mouse over image to zoom, click to enlarge

  • AH1221L CWD SW LKG SP 20A 120/277V AUTOGRD B&S BR
  • AH1221L CWD SW LKG SP 20A 120/277V AUTOGRD B&S BR

Description: EATON Arrow Hart AC Locking Switch, Auto Ground, 120/277 V AC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 V AC Contact, 1 Pole, Key Operated Actuator, Back/Side Wired/Screw Connection, Wall Mounting, Phenolic/Urea, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 2.4 in L x 1.31 in W x 1.05 in D Dimensions

Manufacturer PN: AH1221L

UPC:  03266470631

Kendall Electric Inc PN: 2705492

Invoice Description:

AH1221L CWD SW LKG SP 20A 120/277V AUTOGRD B&S BR


SPEC SHEET

▸ See All in Locking Switches


How Can We Make This Page Better?

EATON Arrow Hart AH1221L Auto Ground AC Locking Switch, 120/277 V AC, 20 A, 1 hp, 2 hp Power Rating

Log In for Pricing and Availability




Description

Eaton's Arrow Hart broad line of extra heavy-duty industrial grade switches feature superior engineering, reliable performance and ease of installation. Available in toggle, lighted, pilot light, Corbin and locking versions.
EATON Arrow Hart AC Locking Switch, Auto Ground, 120/277 V AC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 V AC Contact, 1 Pole, Key Operated Actuator, Back/Side Wired/Screw Connection, Wall Mounting, Phenolic/Urea, Brown, Environmental Conditions: -20 to 60 deg C Operating Temperature, 2.4 in L x 1.31 in W x 1.05 in D Dimensions

Specifications

 Actuator Key Operated
 Amperage Rating 20 A
 Application Industrial Switch, Industrial Facilities and Factories Facility Applications
 Brand Name EATON
 Color Brown
 Connection Back/Side Wired/Screw
 Contact Rating 20 A at 120/277 V AC
 Dimensions 2.4 in L x 1.31 in W x 1.05 in D
 Environmental Conditions -20 to 60 deg C Operating Temperature
 Manufacturer Part Number AH1221L
 Material Phenolic/Urea
 Mounting Wall
 Number of Poles 1
 Power Rating 1 hp, 2 hp
 Standards/Approvals cULus Listed,UL Recognized,NAFTA
 Type Auto Ground
 Video Links
 Voltage Rating 120/277 V AC

Features

▪ Lighted version toggle glows when in the off position
▪ Color-coded faces identify amperage

Resources

 Catalog Page
 Product Data Sheet
