Emerson Electric
AGUB976A APP GUB-976A 78138188619

Mouse over image to zoom, click to enlarge

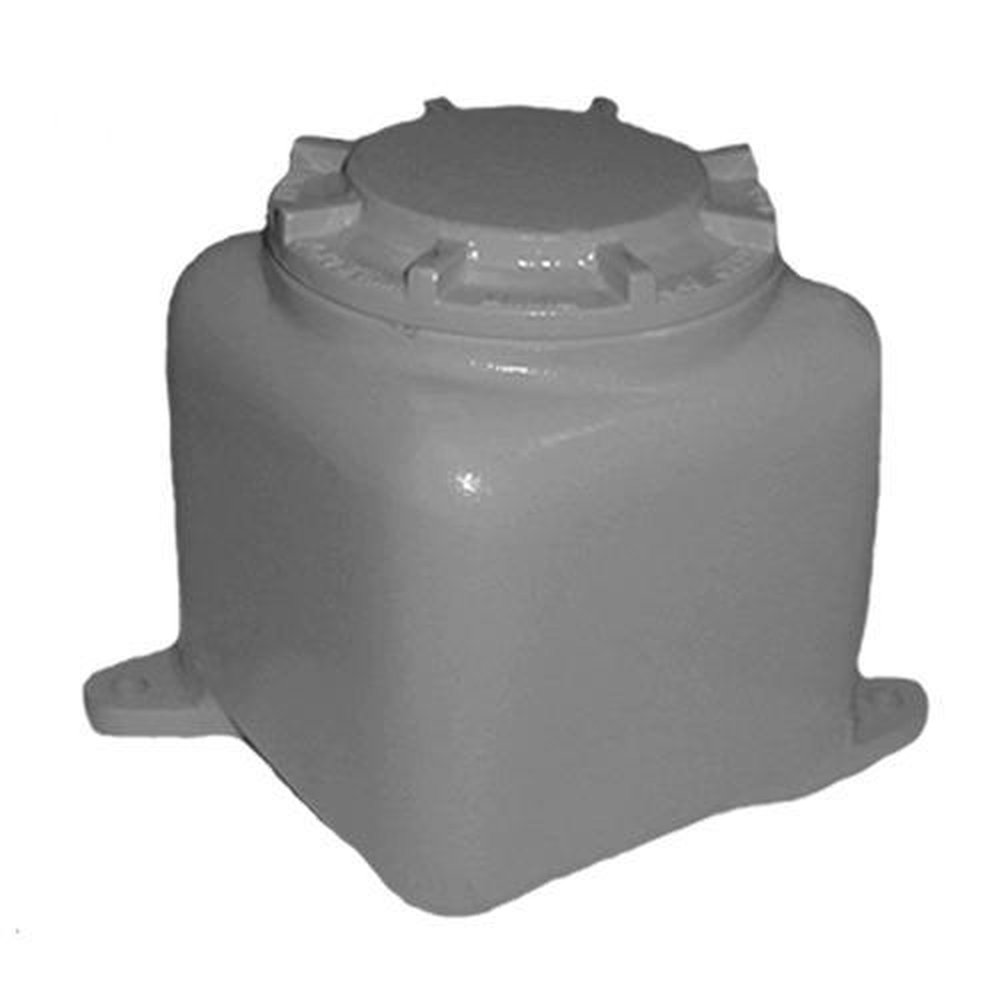

Description: Appleton® Instrument and Meter Enclosure, Dust-Ignitionproof Explosionproof, Series: AGUB, NEMA 4/4X/7BCD/9EFG, Solid Cover, Copper-Free Aluminum, Epoxy Powder Coated, Gray

Manufacturer PN: AGUB976A

UPC:  78138188619

Kendall Electric Inc PN: 2208530

Invoice Description:

AGUB976A APP GUB-976A 78138188619


SPEC SHEET

▸ See All in Hazardous Location Junction Boxes


How Can We Make This Page Better?

Appleton® AGUB976A Dust-Ignitionproof Explosionproof Instrument and Meter Enclosure With Cover, NEMA 4/4X/7BCD/9EFG, Copper-Free Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Appleton® explosionproof, dust-ignitionproof AGUB and O-Z/Gedney NGUB instrument and meter enclosures are used for pulling and splicing wires and/or to mount and enclose electrical devices in hazardous locations. They are available with a solid or window cover. Window cover versions are ideal for use as an enclosure for meters, gauges and similar devices.
Appleton® Instrument and Meter Enclosure, Dust-Ignitionproof Explosionproof, Series: AGUB, NEMA 4/4X/7BCD/9EFG, Solid Cover, Copper-Free Aluminum, Epoxy Powder Coated, Gray

Specifications

 Application For used to pull or splice wires or mount and enclose electrical devices in hazardous locations
 Brand Name Appleton
 Color Gray
 Cover Type Solid
 Finish Epoxy Powder Coated
 Manufacturer Part Number AGUB976A
 Material Copper-Free Aluminum
 NEMA Rating NEMA 4/4X/7BCD/9EFG
 PART NUMBER KEYWORDS AGUB976A ; 8290129 ; 781381886192 ; 78138188619 ; 00781381886192
 Series AGUB
 Standards/Approvals ARRA Compliant|CSA C22.2 No. 25/30|CSA File No. 020945|NEC Compliant|CEC Class I Div 1 and 2, Groups B, C, D Class II, Div 1 and 2, Groups E, F, G, Class III|UL 1203, UL File No. E84577
 Type Dust-Ignitionproof Explosionproof

Features

▪ Precision threaded flame path between box and cover
▪ O-ring gasket provided to seal out moisture, dust, oil, dirt etc for interior and exterior locations
▪ Cast mounting feet provided on all enclosures
▪ Large cover opening for easy access

Resources

 Catalog Page
 Product Data Sheet
